Interior Lights Dimming Schematics

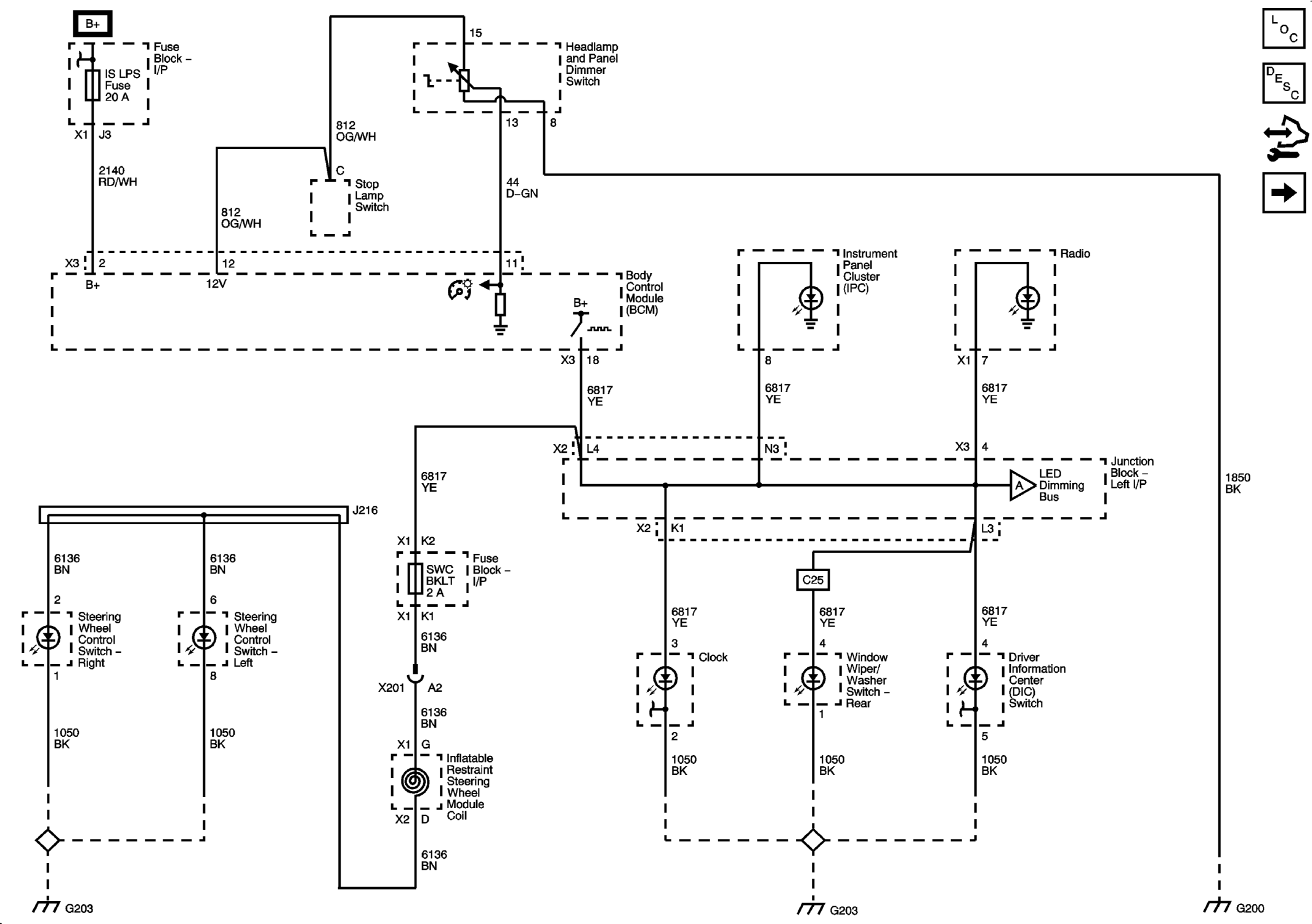

Fig 1: Dimming Control and LED Dimming 1 of 3
GM1961315Courtesy of GENERAL MOTORS CORP.
Fig 2: LED Dimming 2 of 3
GM1961318Courtesy of GENERAL MOTORS CORP.

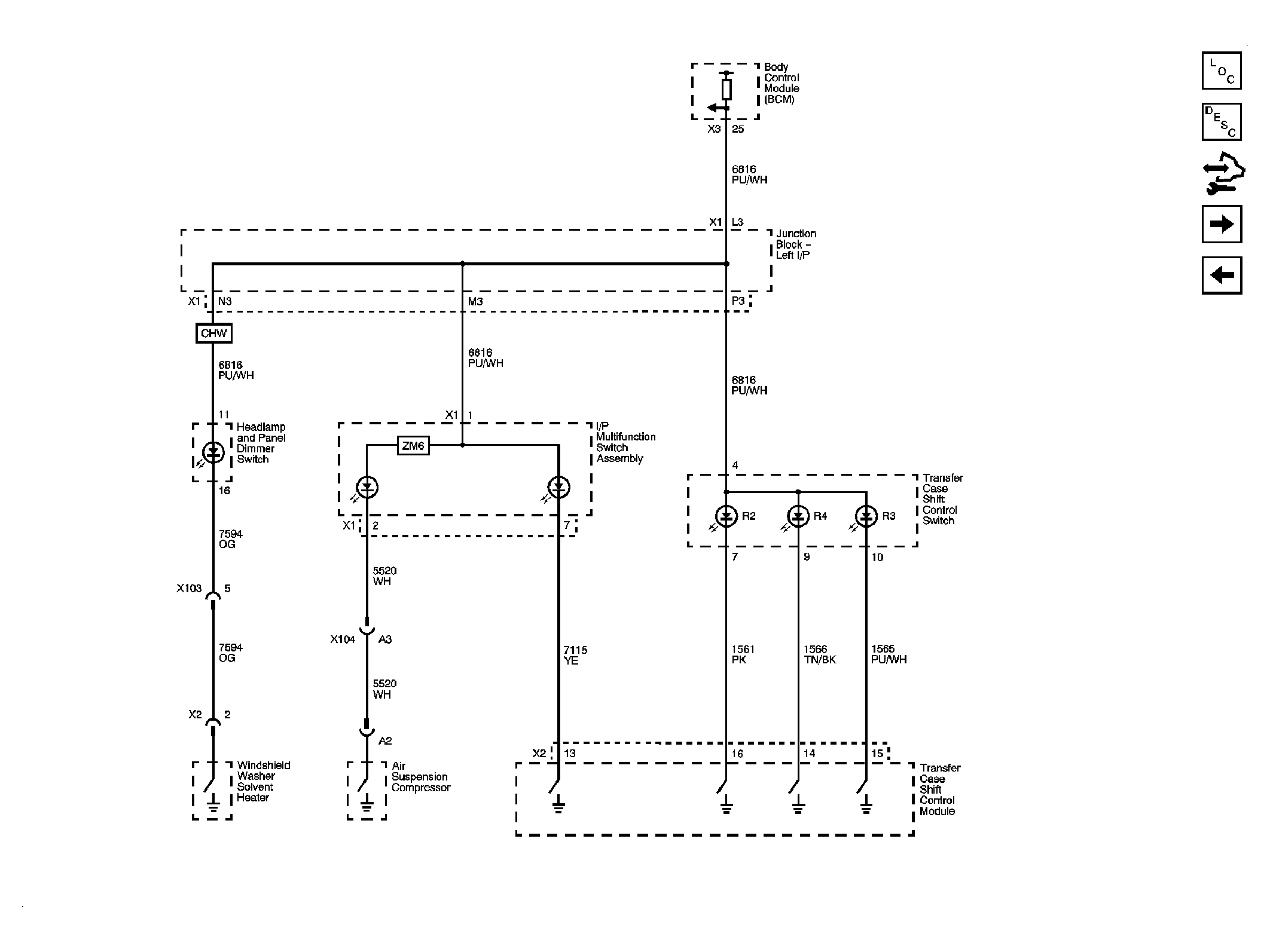

Fig 3: LED Dimming 3 of 3
GM1961323Courtesy of GENERAL MOTORS CORP.

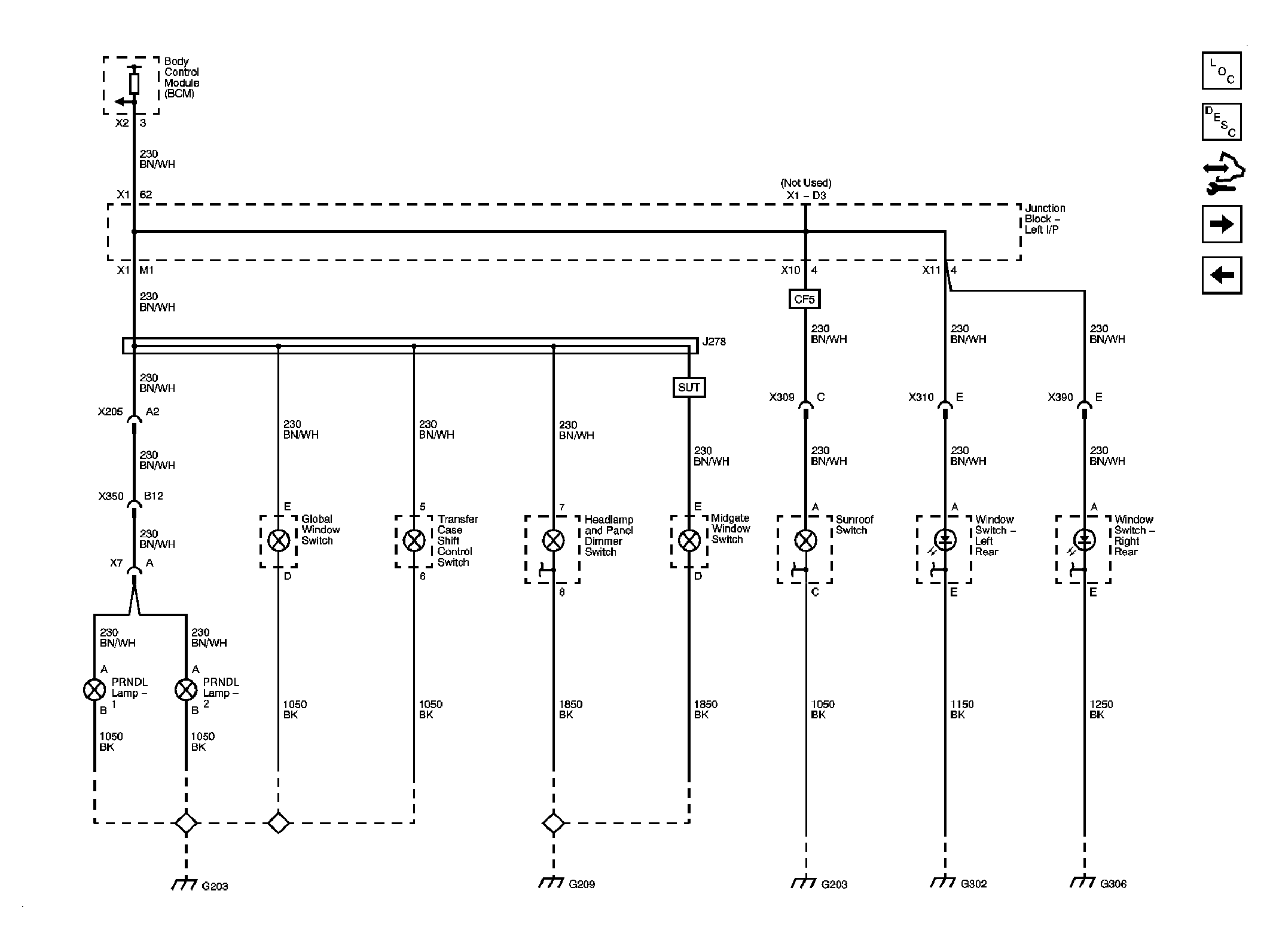

Fig 4: I/P Bulb Dimming
GM1961328Courtesy of GENERAL MOTORS CORP.
