Exterior Lights Schematics

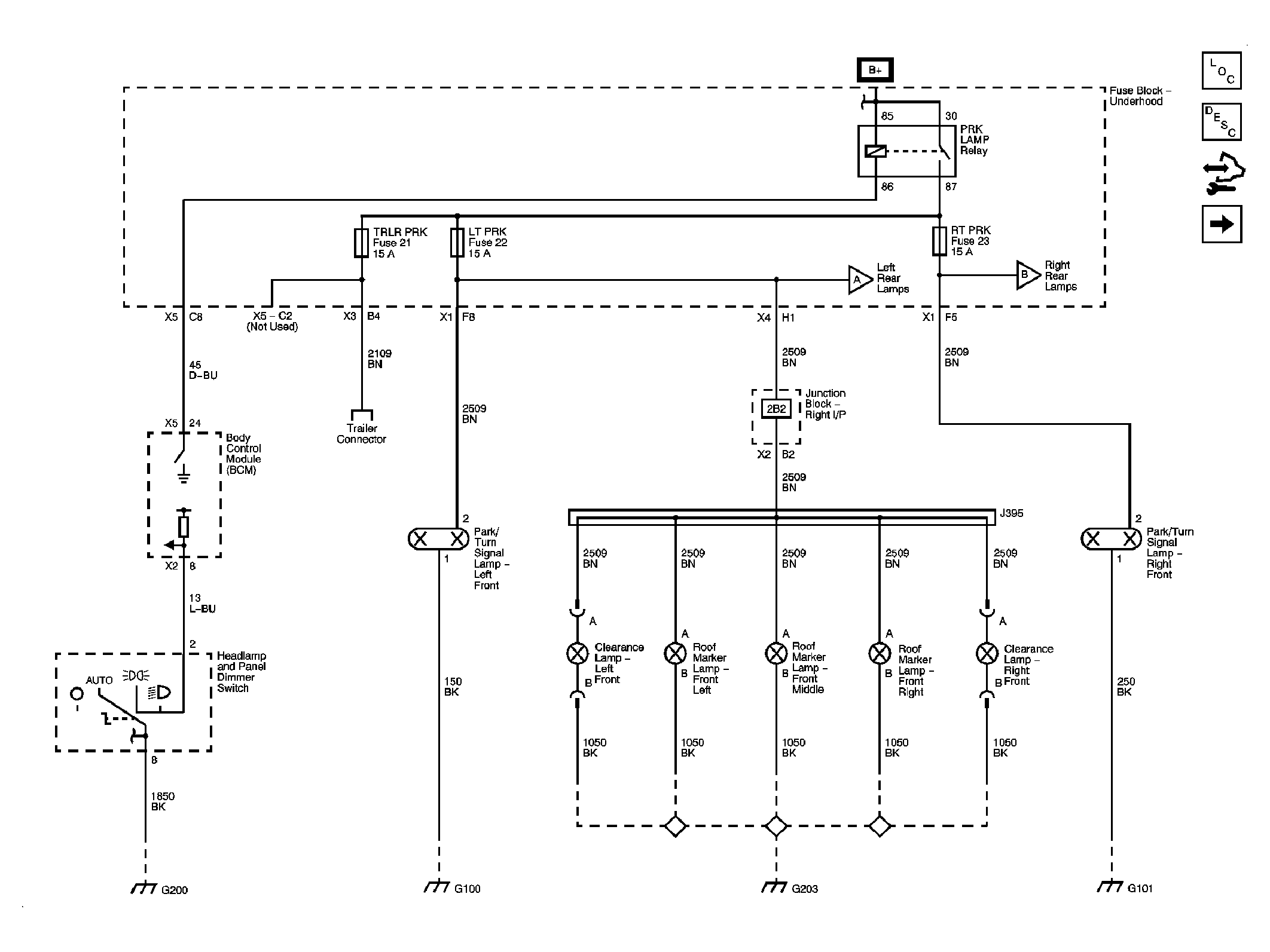

Fig 1: Front Marker and Clearance Lamps

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Rear Park Lamps and Marker Lamps

Courtesy of GENERAL MOTORS CORP.

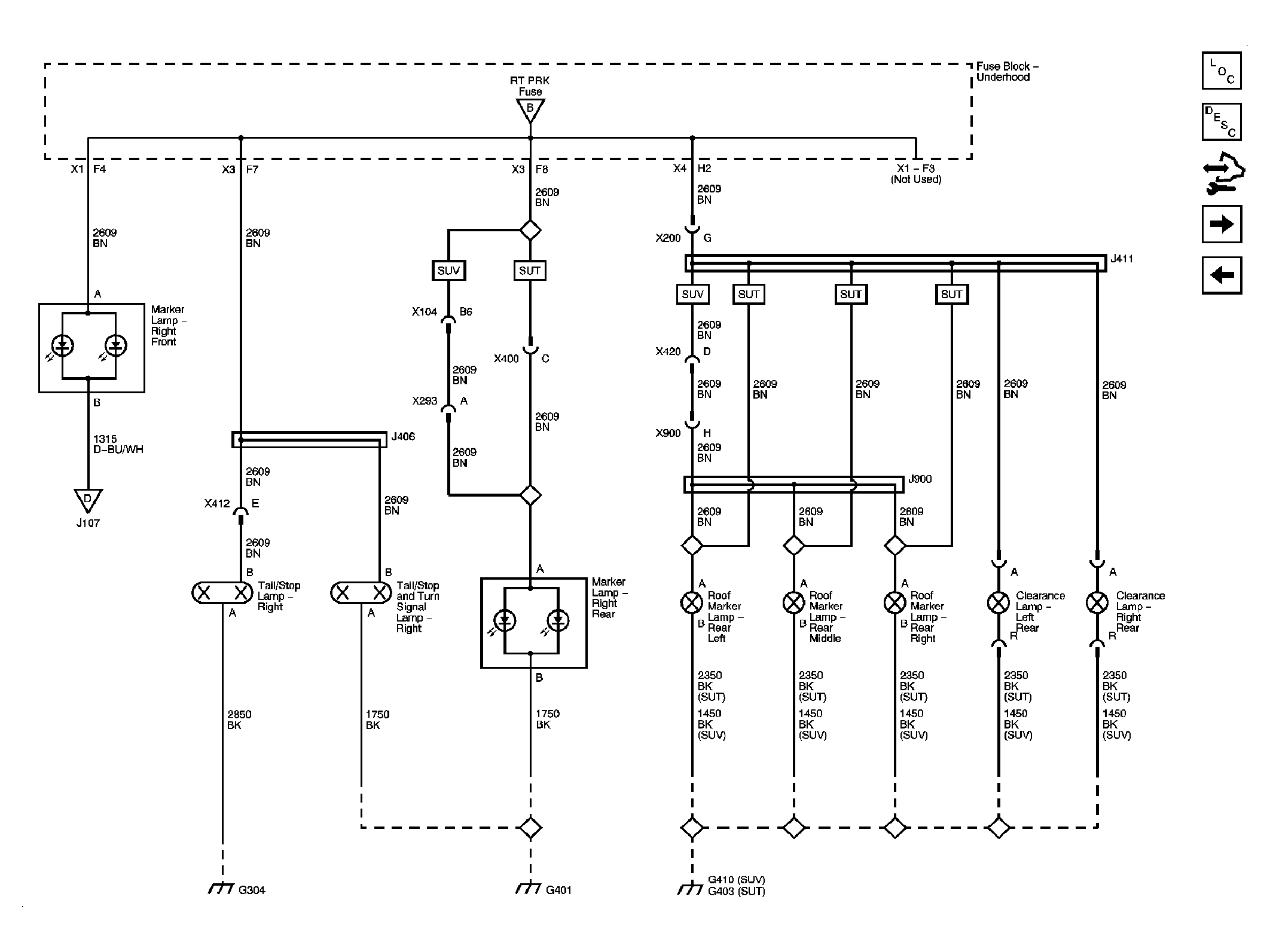

Fig 3: Right Rear Park Lamps and Marker Lamps

Courtesy of GENERAL MOTORS CORP.

Fig 4: Turn Signal Controls and Front Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Stop and Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

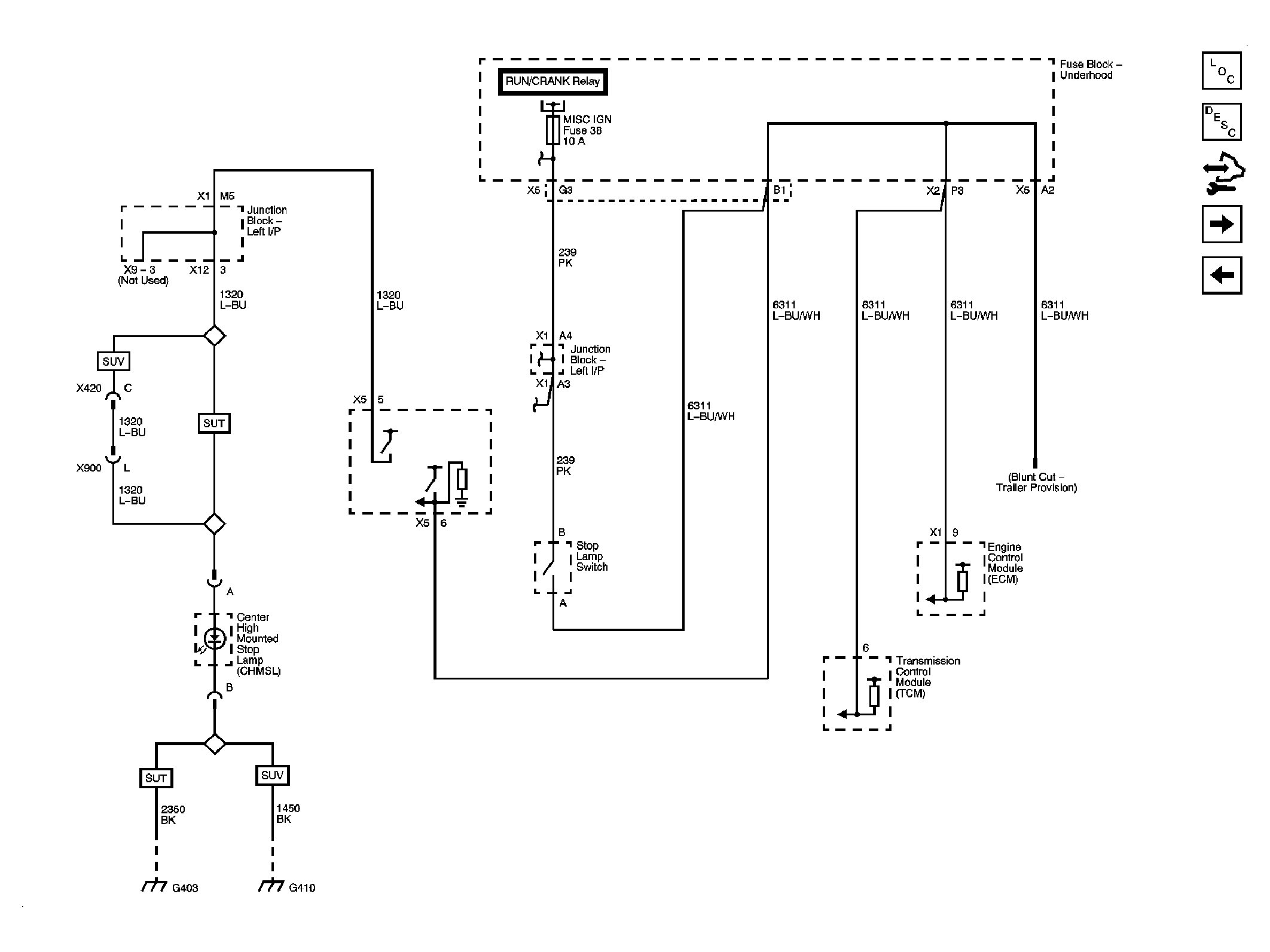

Fig 6: Stop Lamp Controls and CHMSL

Courtesy of GENERAL MOTORS CORP.

Fig 7: Backup Lamps

Courtesy of GENERAL MOTORS CORP.

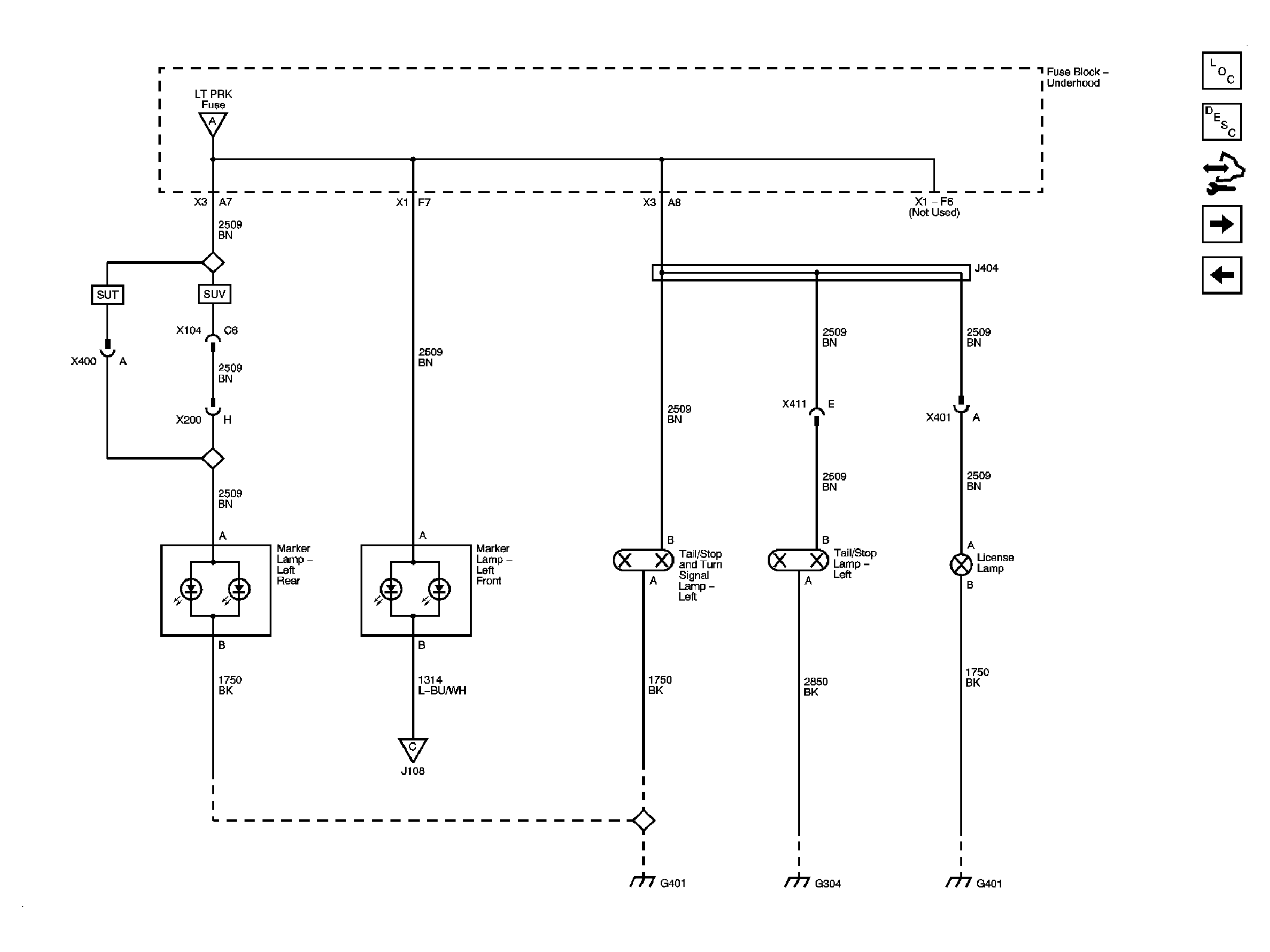

Fig 8: Tail/Stop and Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.
