Removal Procedure

  1. Open the hood.

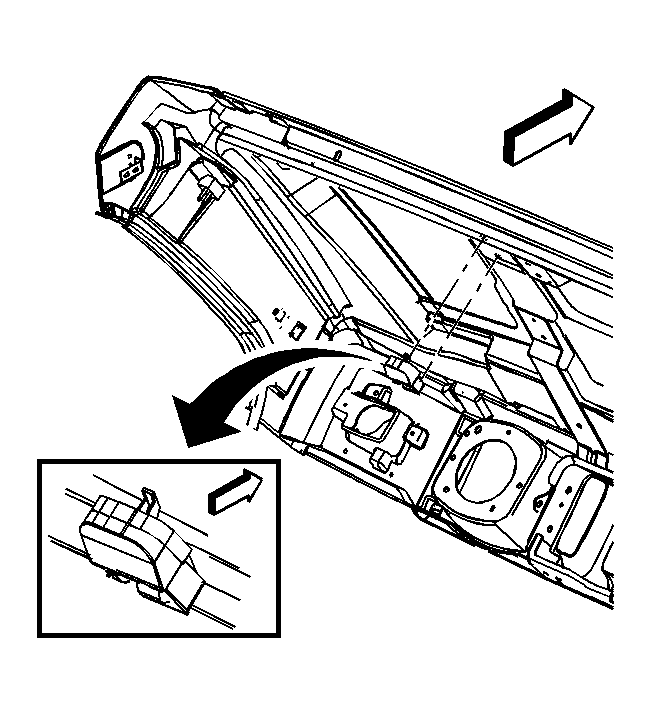

    2. Fig 1: Underhood Lamp
    GM814427Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.
  3. Depress the locking tab at the bottom of the lamp to disengage.
  4. Tilt the lamp to disengage the top hook from the hood.
  5. Remove the lamp from the hood.
