Removal Procedure

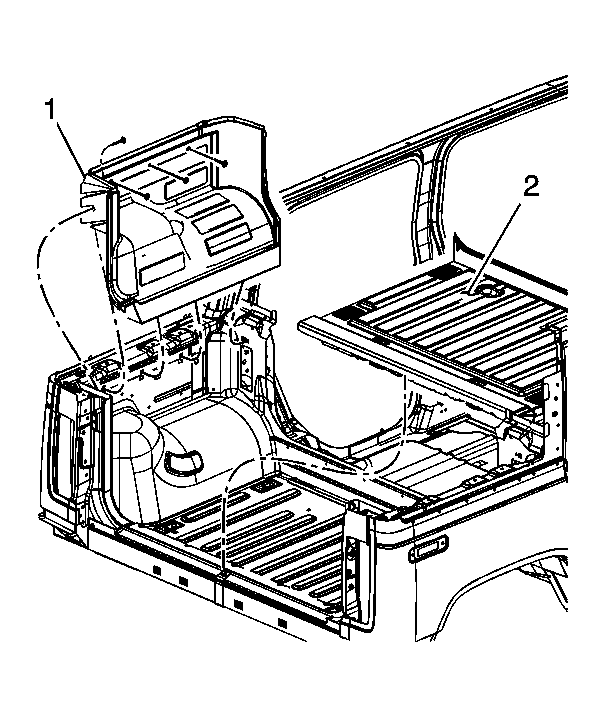

    Fig 1: LH Rear Compartment Side Trim Panel
    GM1412540Courtesy of GENERAL MOTORS CORP.
  1. Remove the LH rear compartment side trim panel (1). Refer to Rear Compartment Side Trim Replacement - Left Side (SUT) .
    2. Fig 2: Rear Side Marker Lamp (SUV)
    GM803115Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws retaining the exterior lamp lens to the outer body panel.
    3. Fig 3: Identifying Lamp Connector
    GM1453846Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (4) from the main body harness (2).
  4. Remove the left rear side marker lamp with harness from the rear body panel.
