Video System Schematics

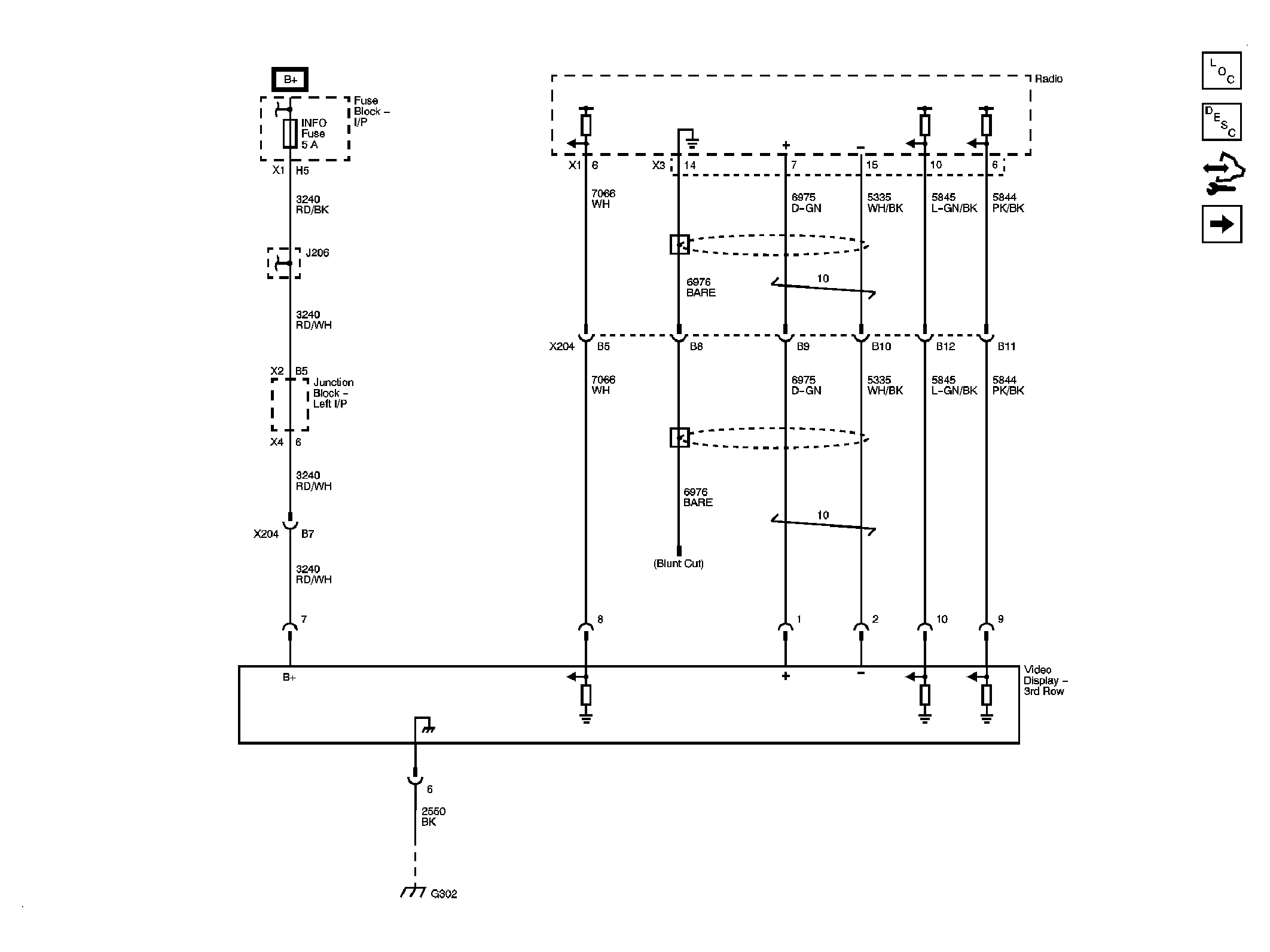

Fig 1: Display Power, Ground and Video Signals
Courtesy of GENERAL MOTORS CORP.

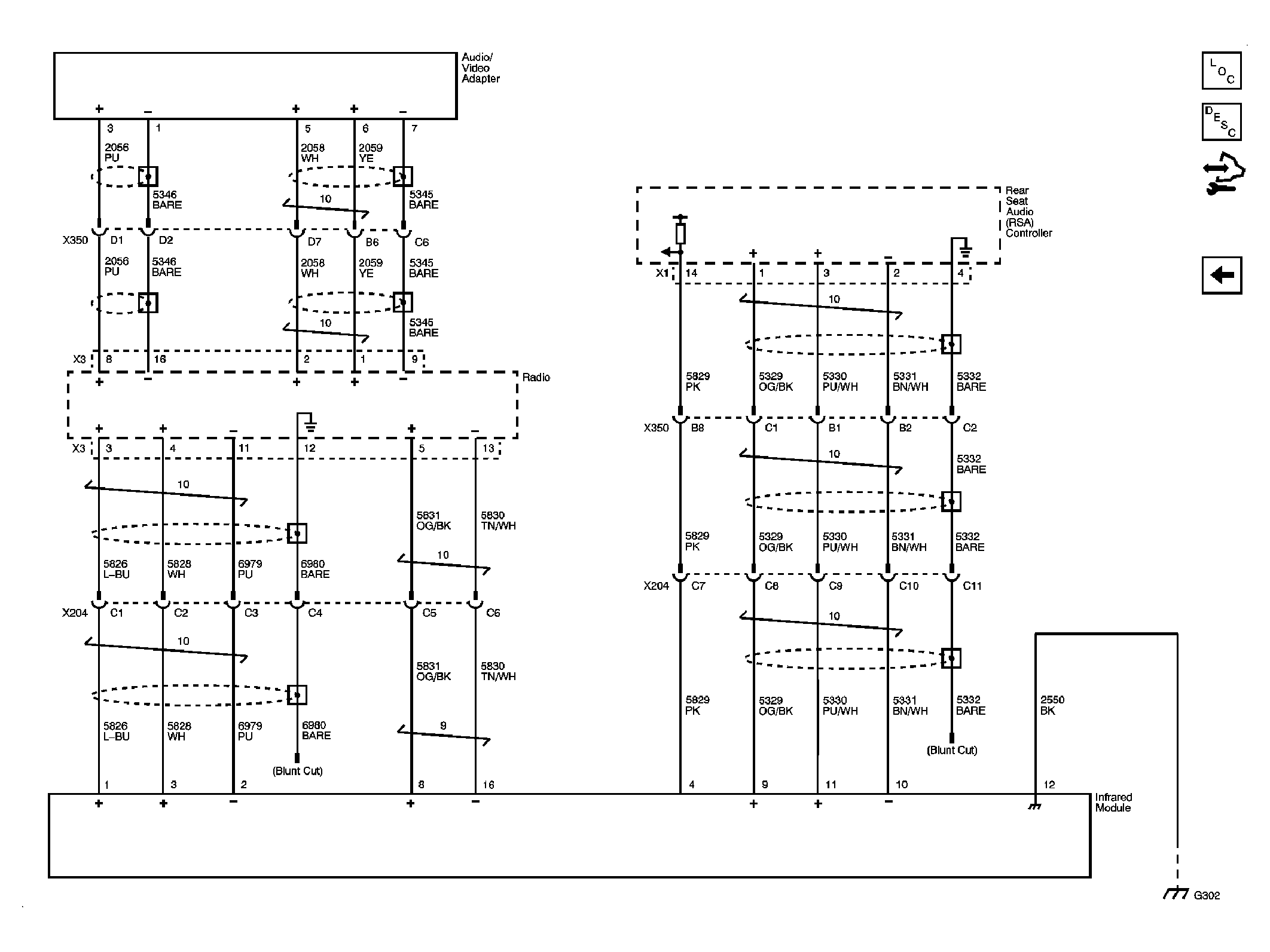

Fig 2: Audio Signals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
