Video Display Replacement

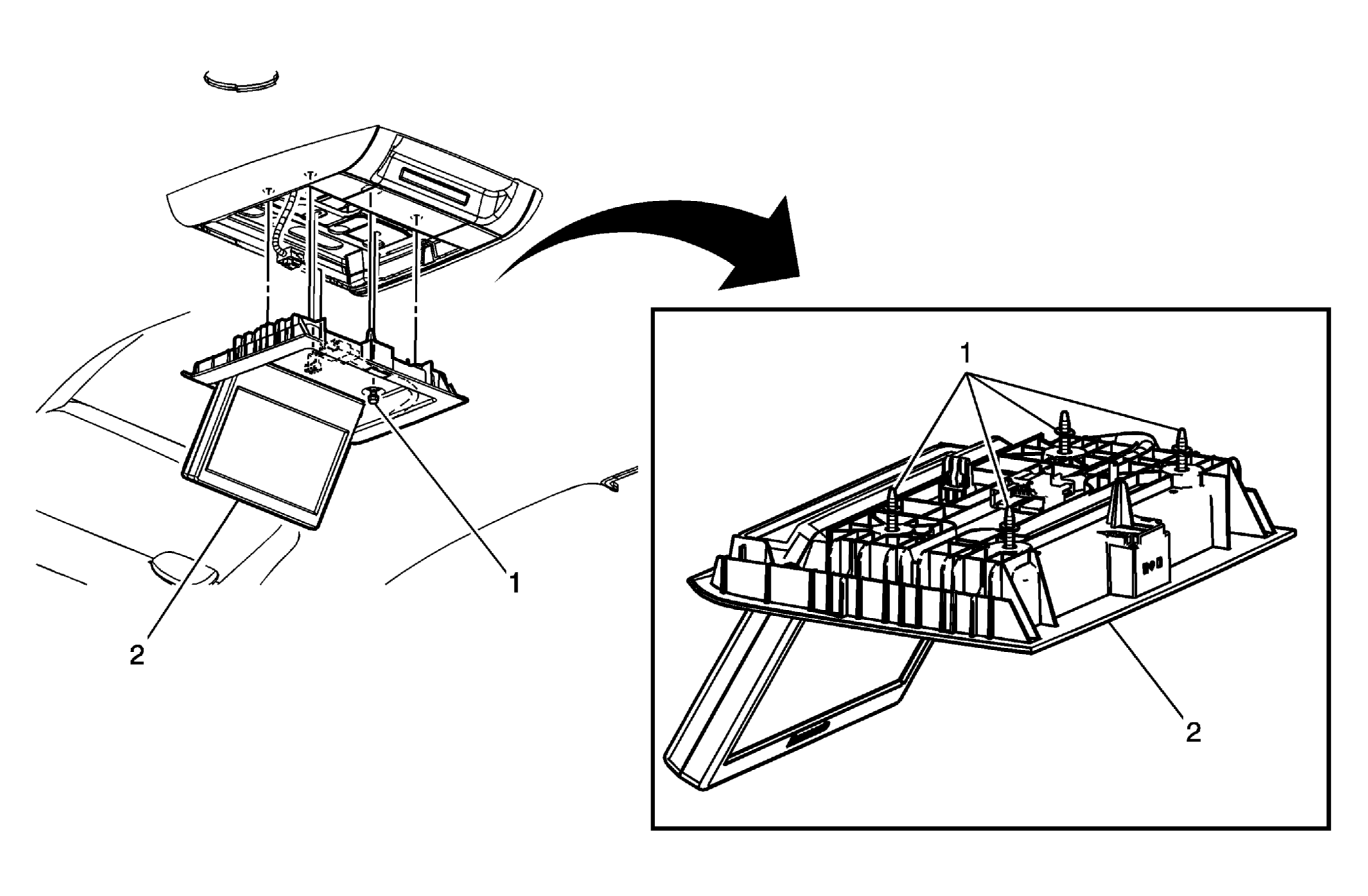

Fig 1: Video Display

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Video Display Assembly Screws (Qty: 4) NOTE: Refer to Fastener Notice . Procedure: Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded. Tighten: 2 N.m (18 lb in)
2	Video Display Assembly Procedure Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.

Callout

Component Name

Video Display Assembly Screws (Qty: 4)

NOTE: Refer to Fastener Notice .

Procedure:
Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded.

Tighten: 2 N.m (18 lb in)

Video Display Assembly

Procedure

Pull down to disengage the retainer clip and remove from the vehicle.
Disconnect the electrical connector.
