Radio Rear Quarter Trim Panel Speaker Replacement

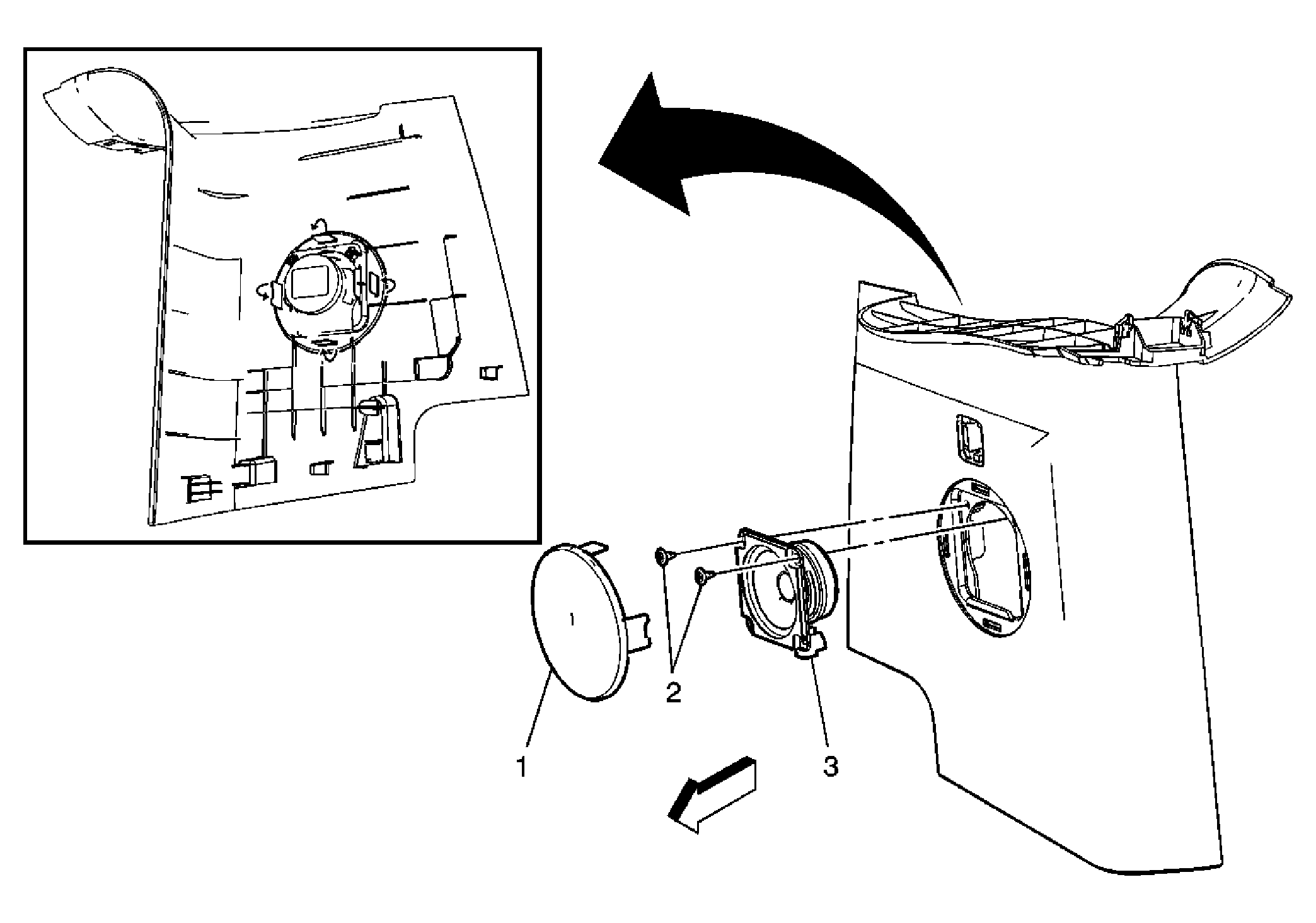

Fig 1: Radio Rear Quarter Trim Panel Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the body rear corner upper garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement .
1	Speaker Grille Procedure Disconnect the electrical connector. Bend the speaker grille tabs to the straight position. Pull speaker grille straight out.
2	Speaker Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Speaker
