Installation Procedure

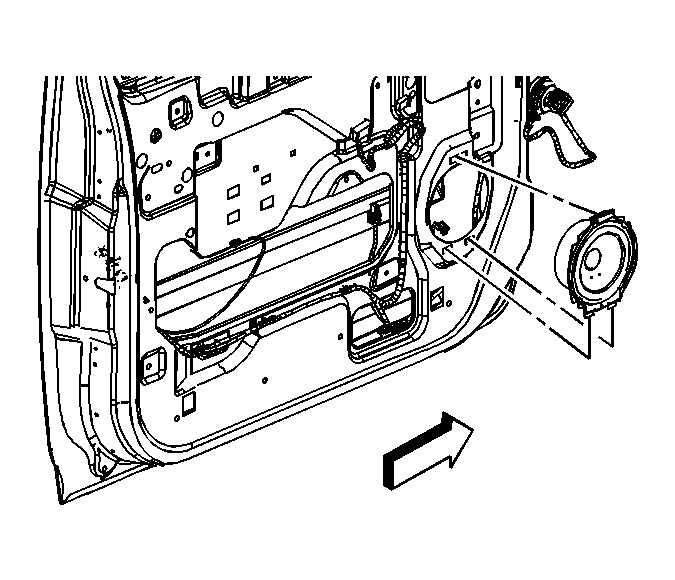

    Fig 1: Front Door Speaker
    GM832847Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the speaker.

    Push the speaker into place. Ensure that the speaker is completely seated.

  3. Install the trim panel. Refer to Front Side Door Trim Panel Replacement .
  4. Inspect the component operation.
