Mobile Telephone Microphone Replacement

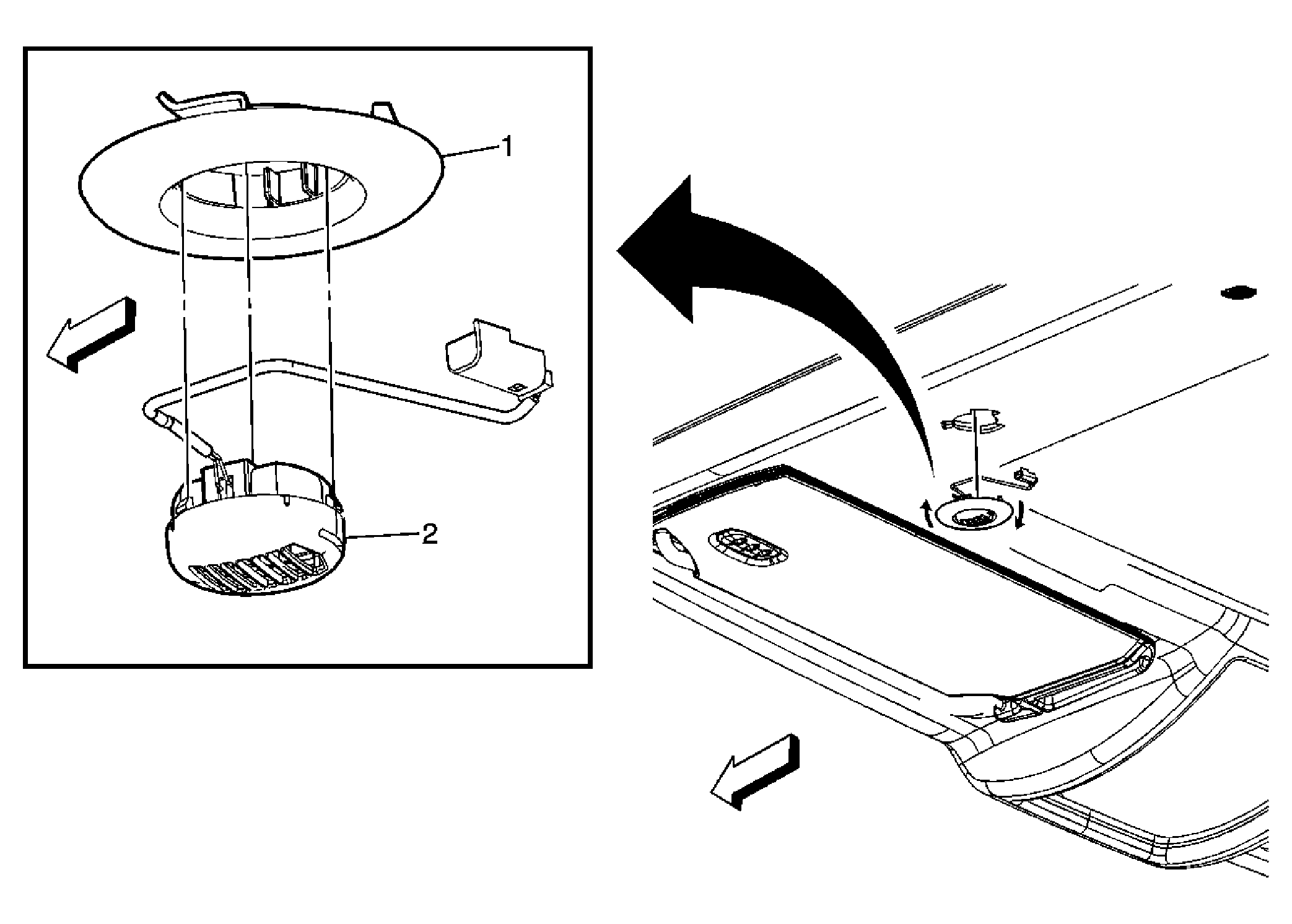

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mobile Telephone Microphone Bezel Procedure: Twist and remove the microphone bezel from the headliner.
2	Mobile Telephone Microphone Assembly Procedure Disconnect the electrical connection. Use a small plastic flat bladed tool to release the 3 tabs on the microphone assembly.

Callout

Component Name

Mobile Telephone Microphone Bezel
Procedure:
Twist and remove the microphone bezel from the headliner.

Mobile Telephone Microphone Assembly

Procedure

Disconnect the electrical connection.
Use a small plastic flat bladed tool to release the 3 tabs on the microphone assembly.
