Data Communication Schematics

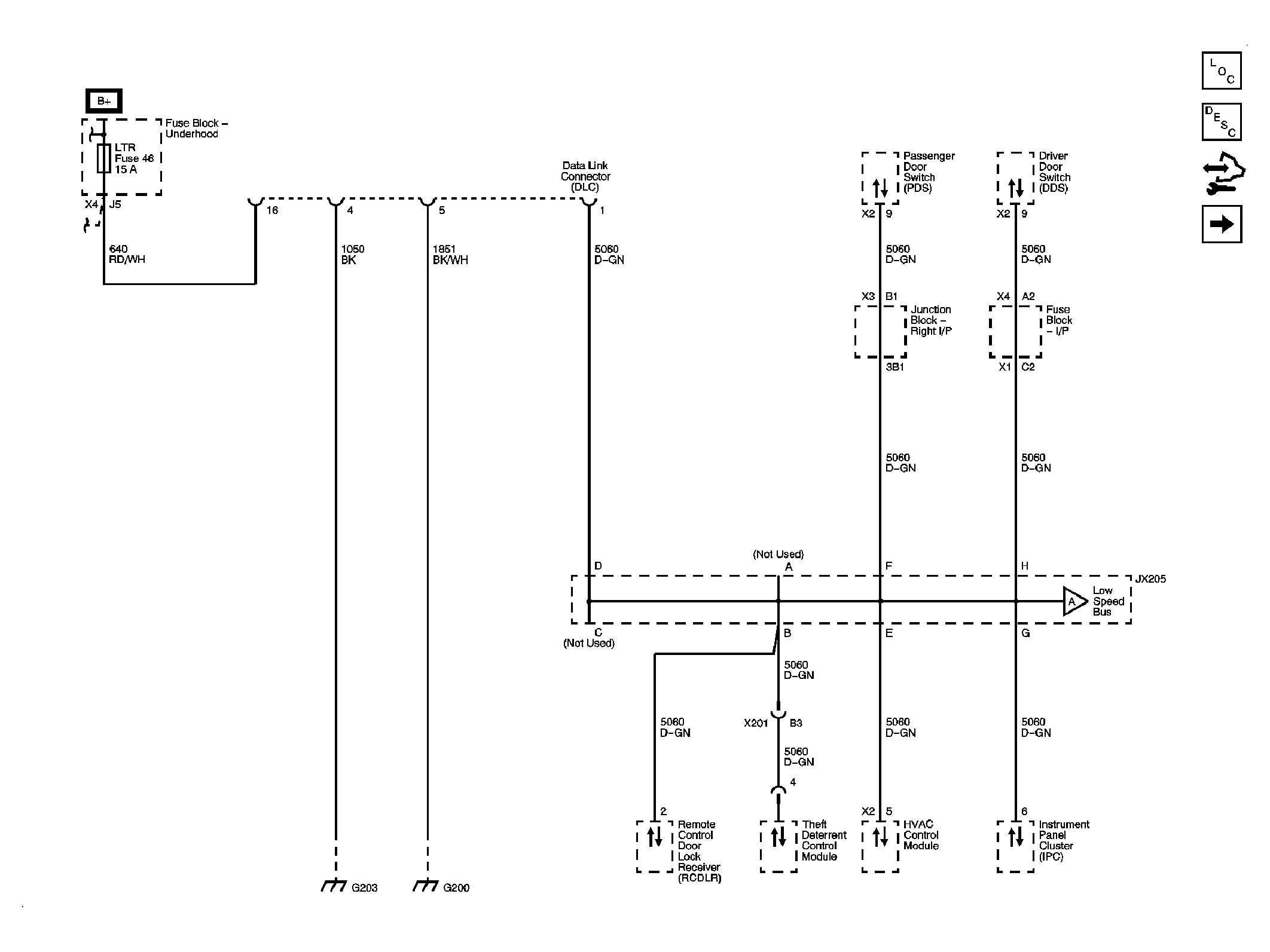

Fig 1: Low Speed Bus - 1 of 3
GM1962227Courtesy of GENERAL MOTORS CORP.
Fig 2: Low Speed Bus - 2 of 3
GM1962228Courtesy of GENERAL MOTORS CORP.
Fig 3: Low Speed Bus - 3 of 3
GM1962229Courtesy of GENERAL MOTORS CORP.

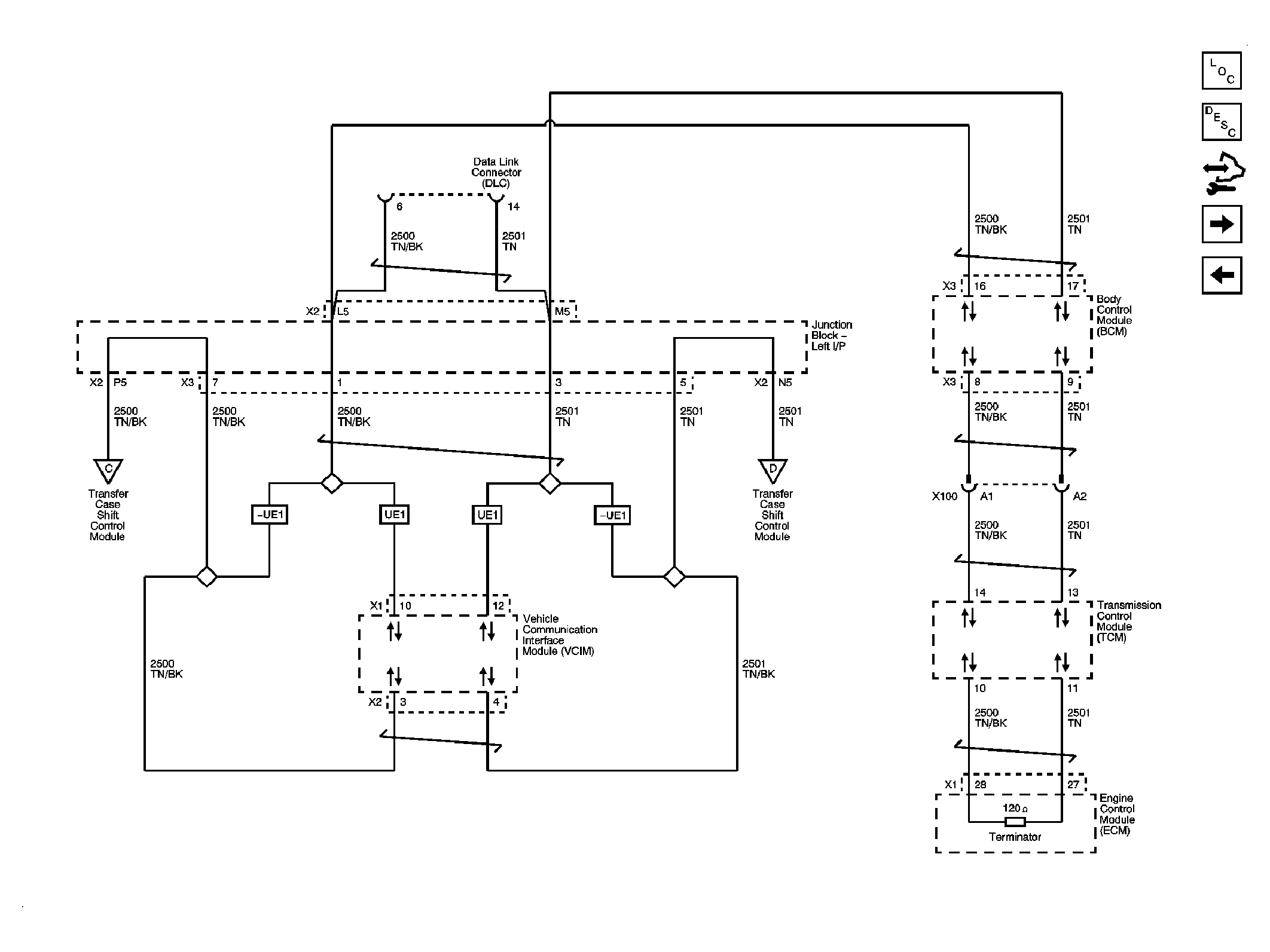

Fig 4: High Speed Bus - 1 of 2
GM1962230Courtesy of GENERAL MOTORS CORP.

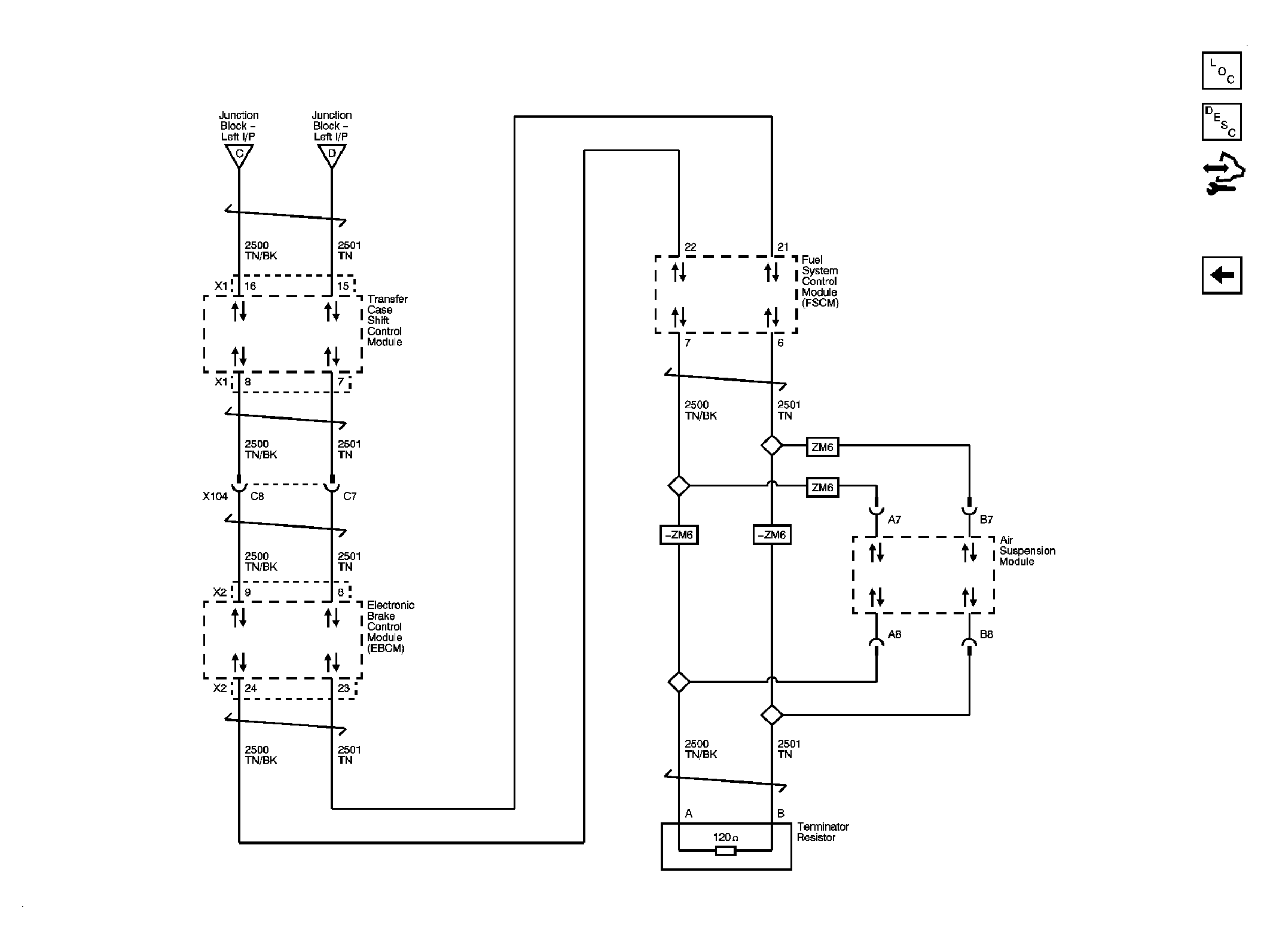

Fig 5: High Speed Bus - 2 of 2
GM1962232Courtesy of GENERAL MOTORS CORP.
