Body Control System Schematics

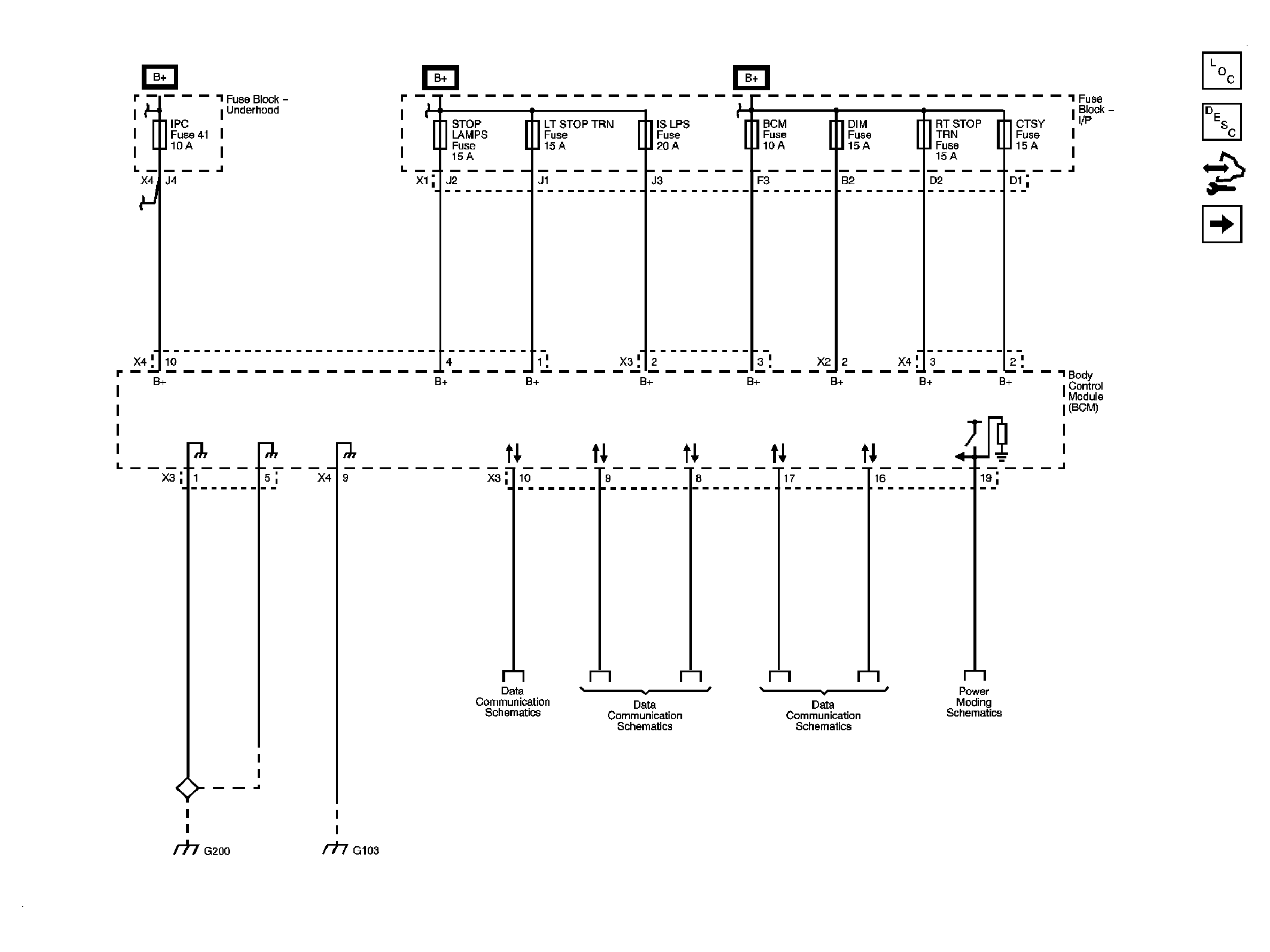

Fig 1: Module Power, Ground and Serial Data References
GM1961696Courtesy of GENERAL MOTORS CORP.

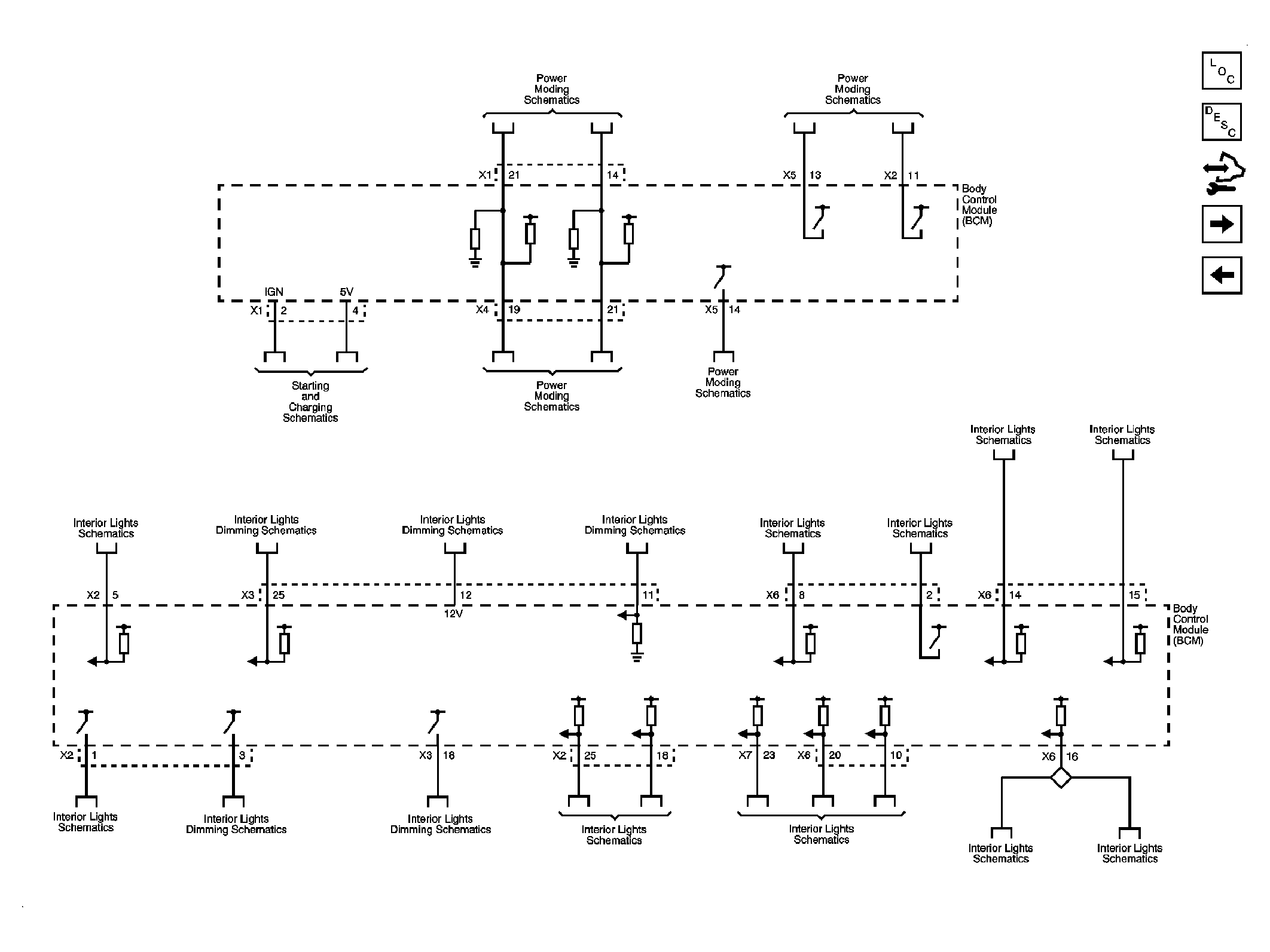

Fig 2: Power Moding and Interior Light References
GM1961698Courtesy of GENERAL MOTORS CORP.

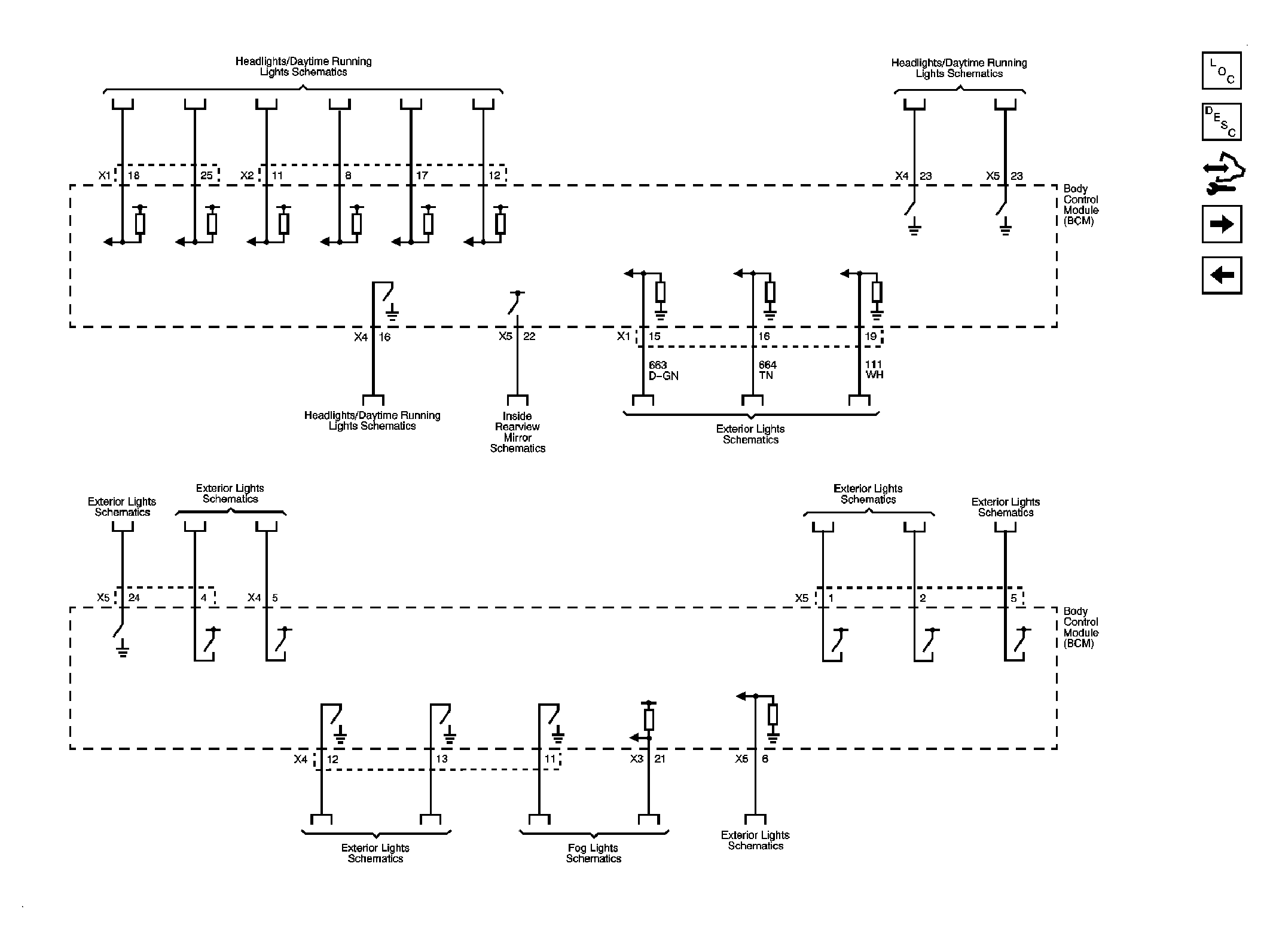

Fig 3: Exterior Light References
GM1961699Courtesy of GENERAL MOTORS CORP.

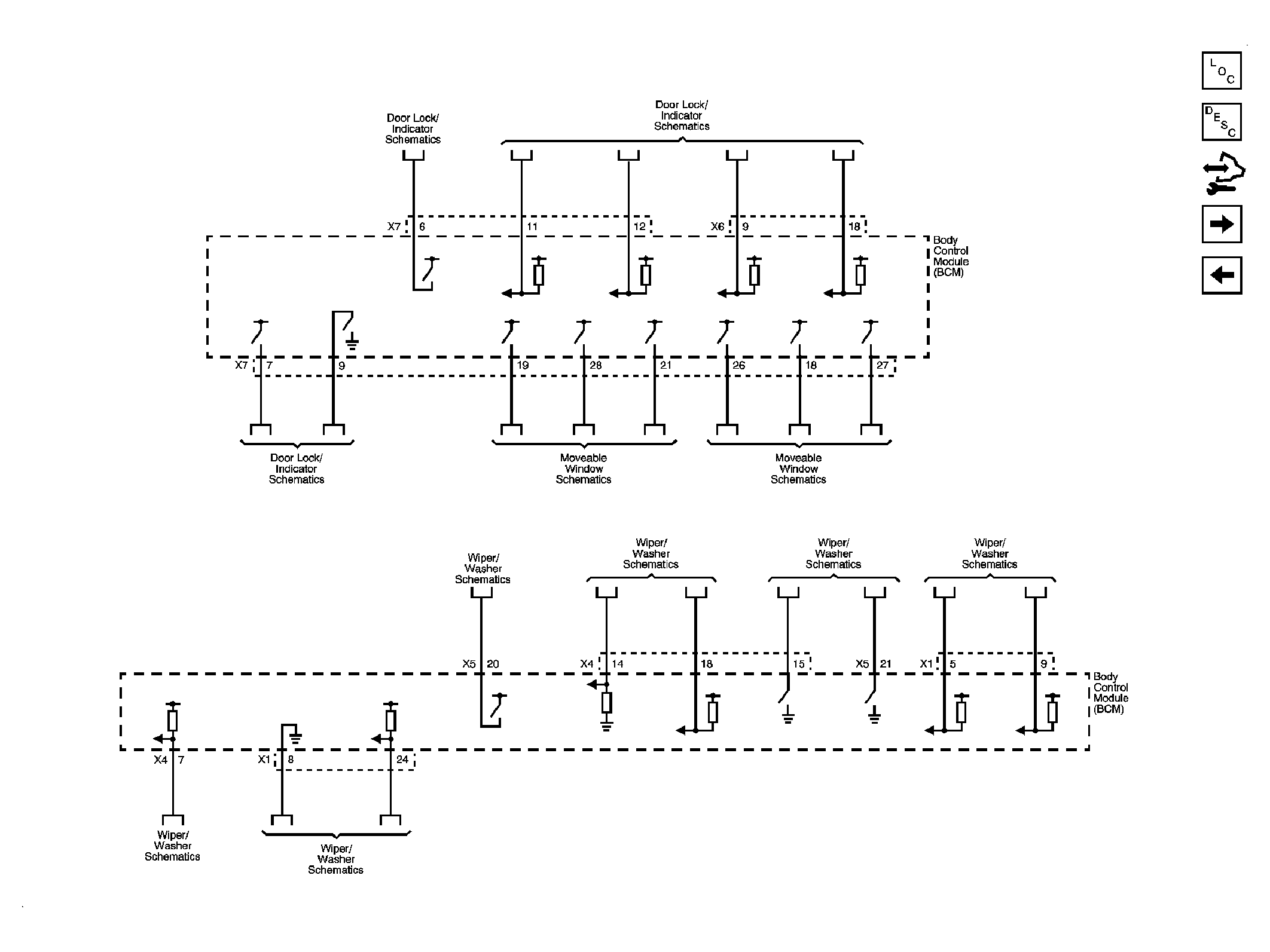

Fig 4: Vehicle Access and Wiper References
GM1961701Courtesy of GENERAL MOTORS CORP.

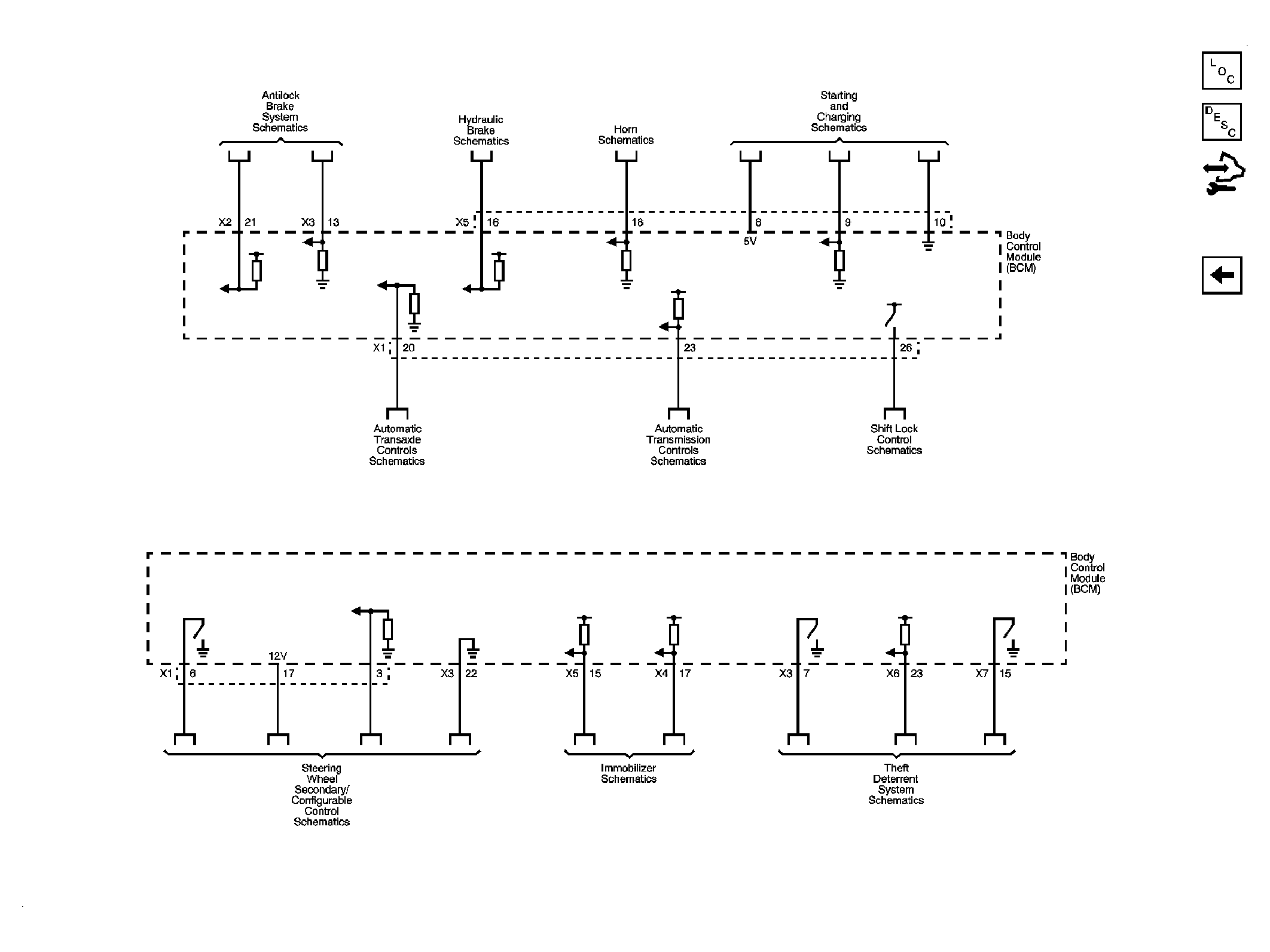

Fig 5: Brake, Horn, Transmission, Theft and Secondary/Configurable References
GM1961704Courtesy of GENERAL MOTORS CORP.
