Headlights/Daytime Running Lights (DRL) Schematics

Fig 1: Headlight and Daytime Running Light Controls
GM1955190Courtesy of GENERAL MOTORS CORP.

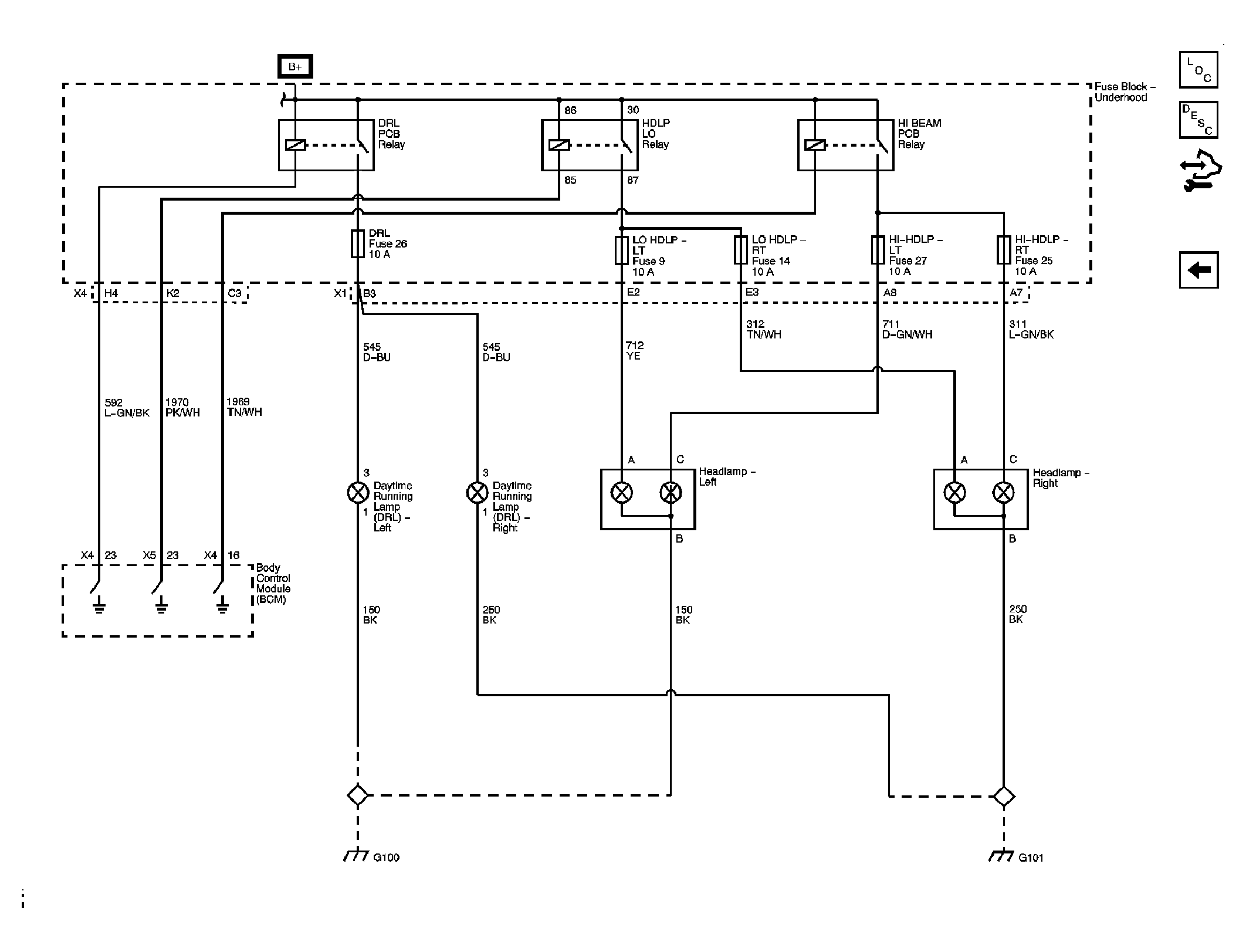

Fig 2: Headlight and Daytime Running Light
GM1955192Courtesy of GENERAL MOTORS CORP.
