26. Crankshaft Rear Oil Seal and Housing Removal



Crankshaft Rear Oil Seal and Housing Removal

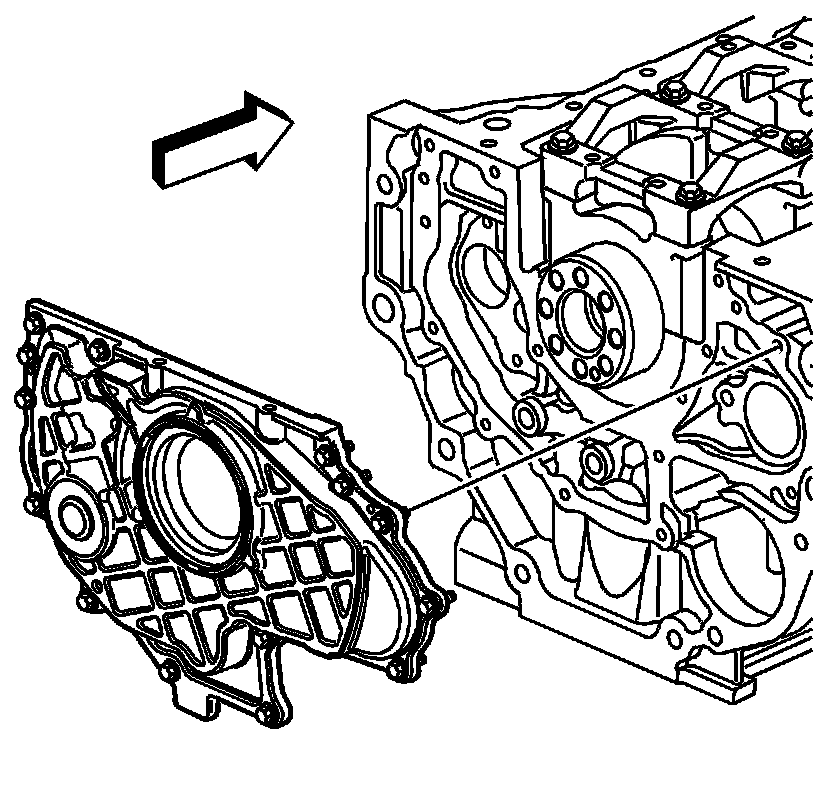

1. Remove the crankshaft rear oil seal housing and bolts.
2. Install 2 bolts (Jack Screws) into the threaded holes to break the seal of the housing.
3. Remove the crankshaft rear oil seal housing.
