Hydraulic Brake Component Views

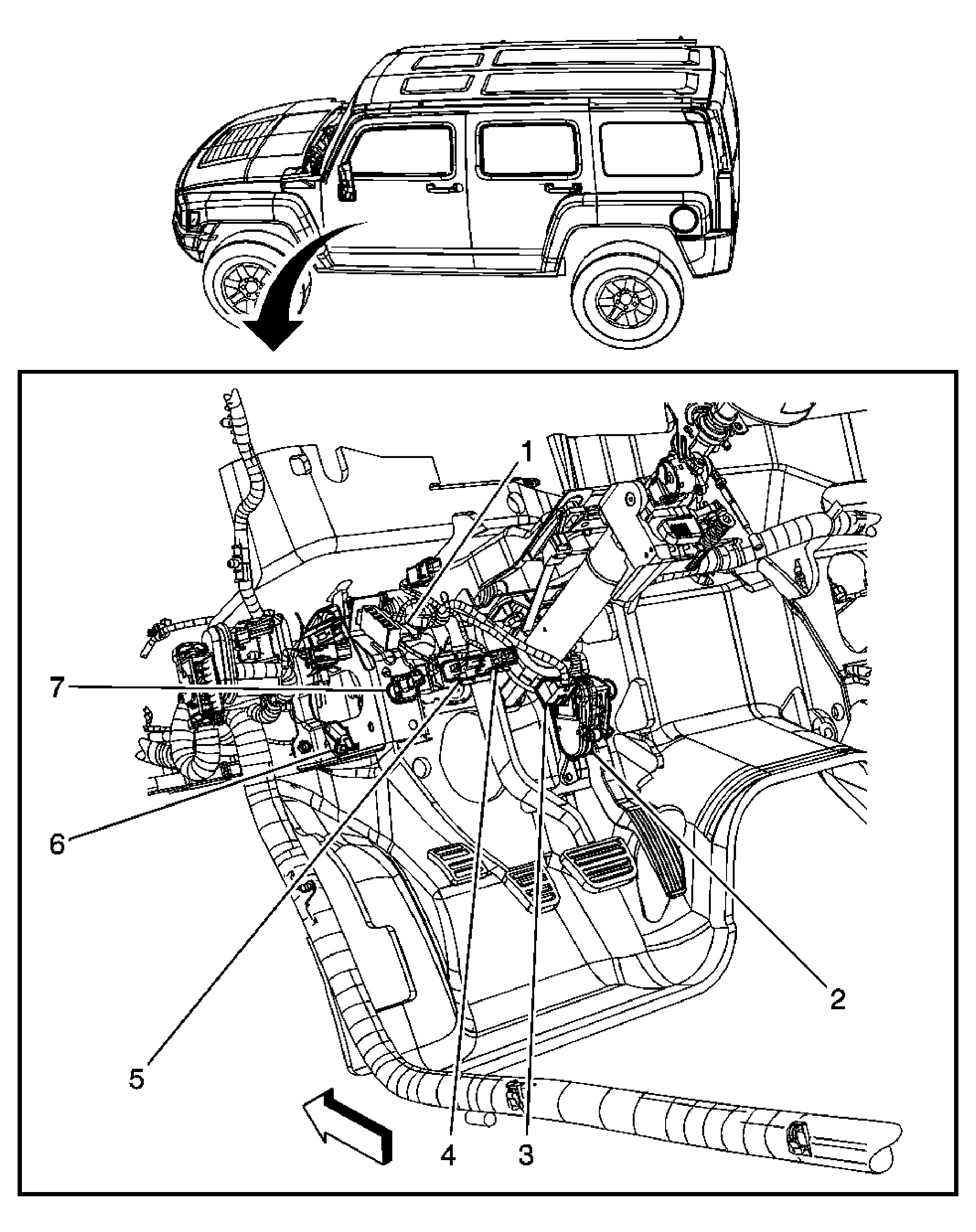

| Callout | Component Name |
|---|---|
| 1 | Clutch Start Switch (MA5) |
| 2 | Accelerator Pedal Position (APP) Sensor |
| 3 | Steering Wheel Position Sensor (JL4) |
| 4 | TCC Brake/Cruise Release Switch |
| 5 | Stop Lamp Switch |
| 6 | Park Brake Switch |
| 7 | Clutch Release Switch (MA5) |
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Vehicle Rollover Sensor (ASF) |
| 2 | Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4) |
| 3 | Brake Fluid Reservoir |
| 4 | Electronic Brake Control Module (EBCM) C2 |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Electronic Brake Control Module (EBCM) C1 |
| 7 | Brake Fluid Level Switch |
