Endgate Trim Panel Replacement
Endgate Trim Panel Replacement

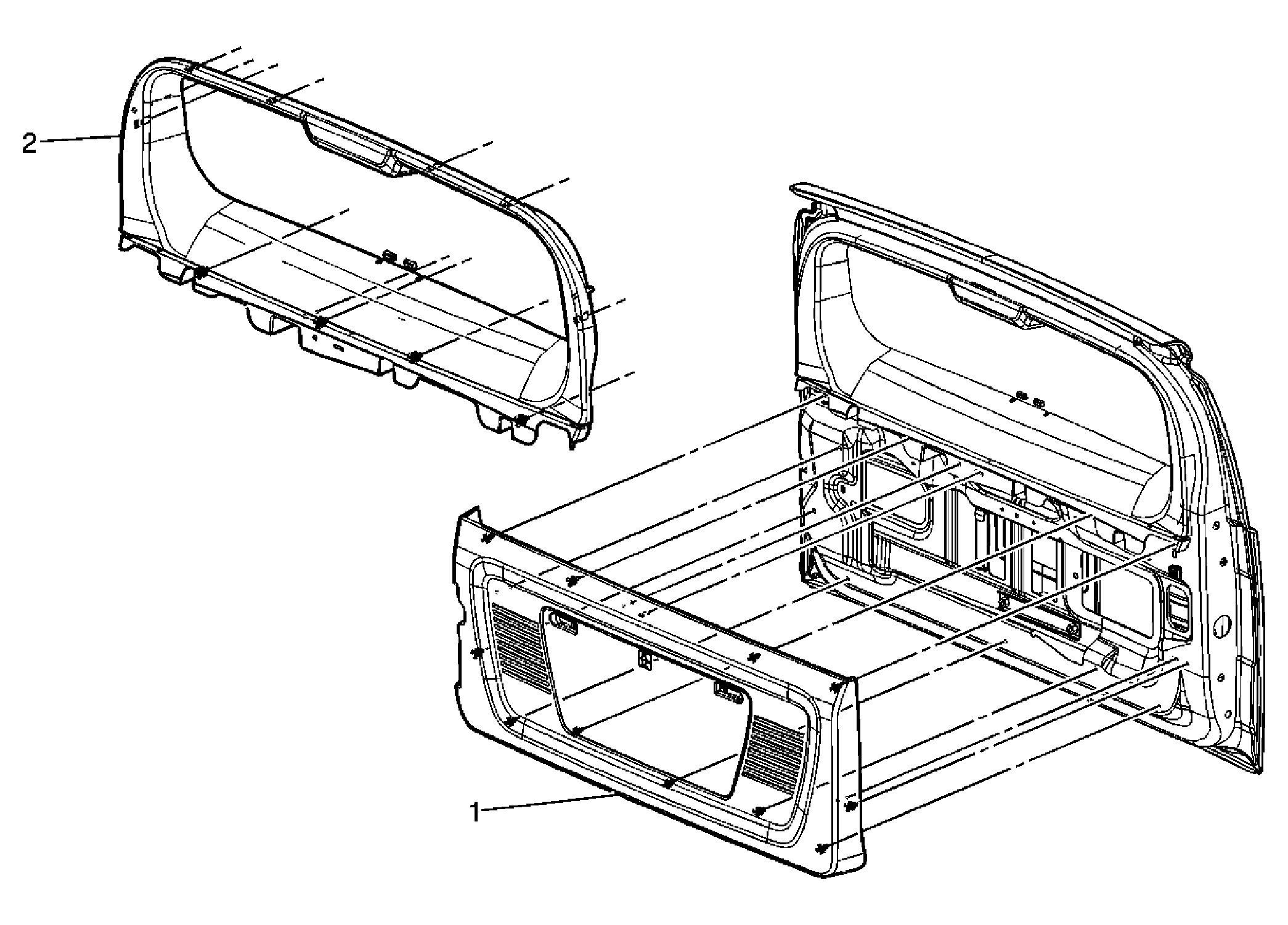

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the lower liftgate trim finish panel. |
|
| 1 | Lower Trim Finish Panel Assembly Lift Gate |
| 2 | Liftgate Lower Trim Finish Panel Retainer (Qty: 10) |
| 3 | Upper Trim Finish Panel Assembly Lift Gate |
| 4 | Liftgate Upper Trim Finish Panel Retainer (Qty: 12) |
