Interior Lights Schematics

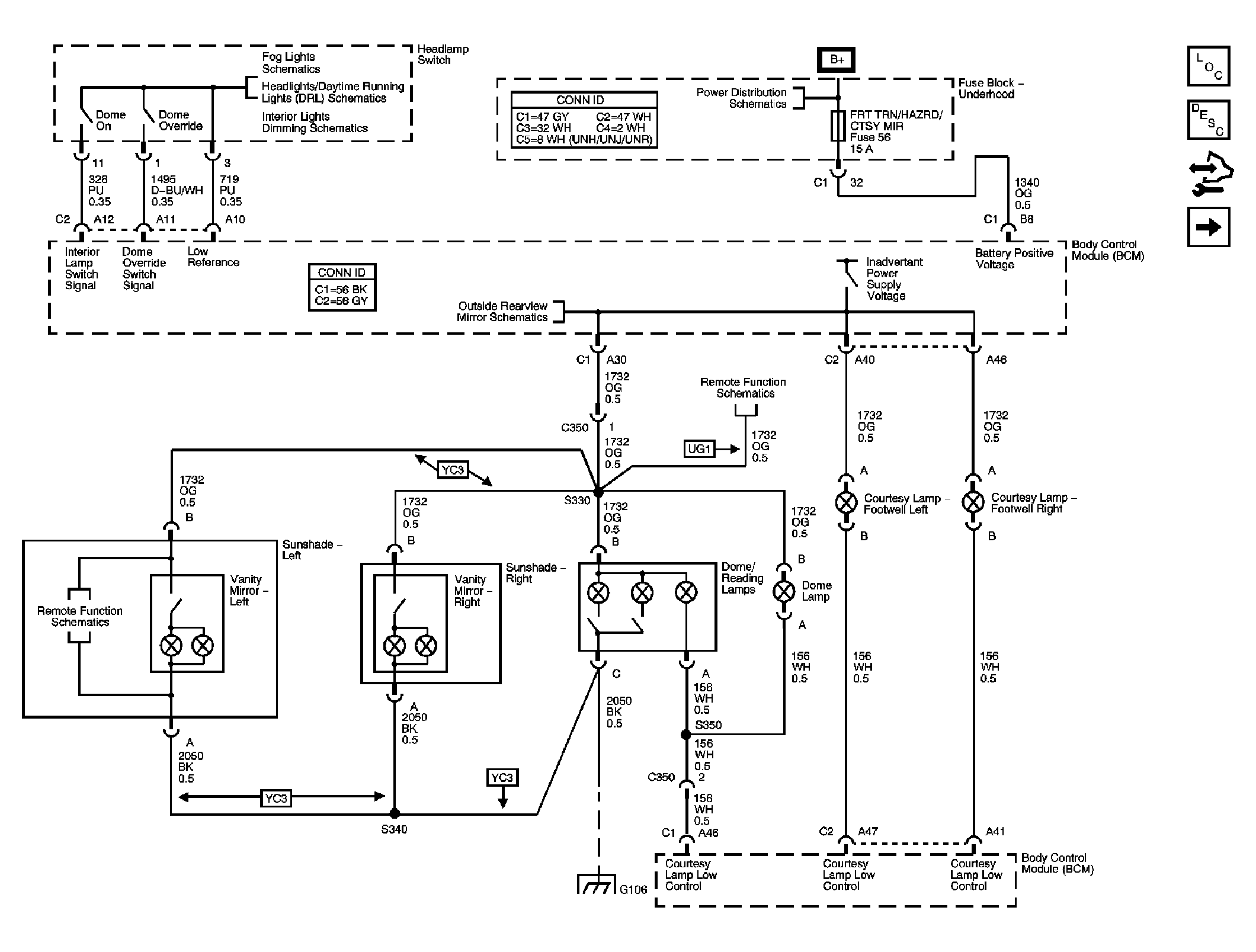

Fig 1: Dome Lamp, Footwell Courtesy Lamps and Vanity Mirror Lamps Schematic
GM1778385Courtesy of GENERAL MOTORS CORP.

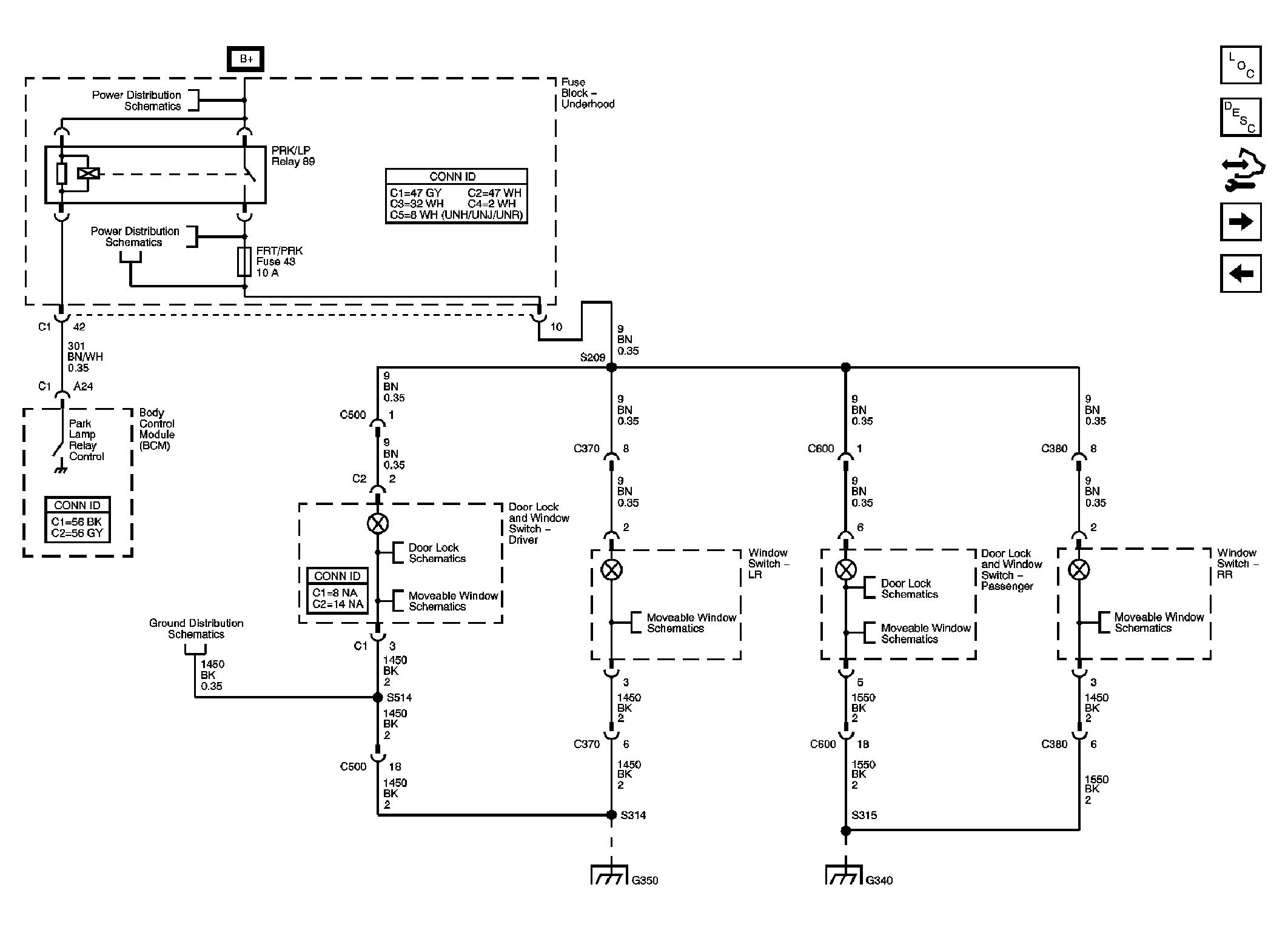

Fig 2: Door Lock and Window Switches Schematic
GM1778387Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Lock and Window Switches Schematic - RHD
GM1891465Courtesy of GENERAL MOTORS CORP.

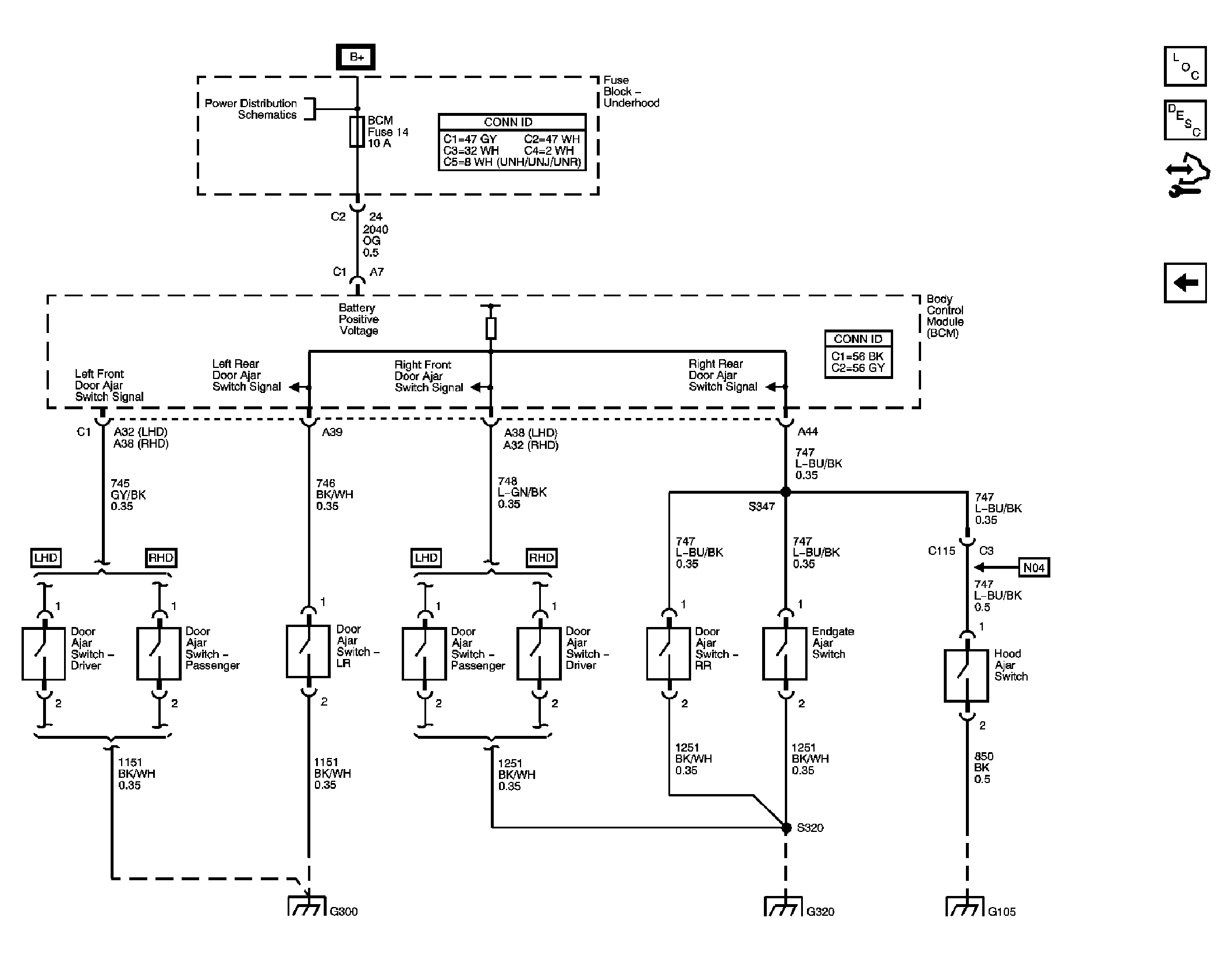

Fig 4: Door Jamb Switches Schematic
GM1778397Courtesy of GENERAL MOTORS CORP.
