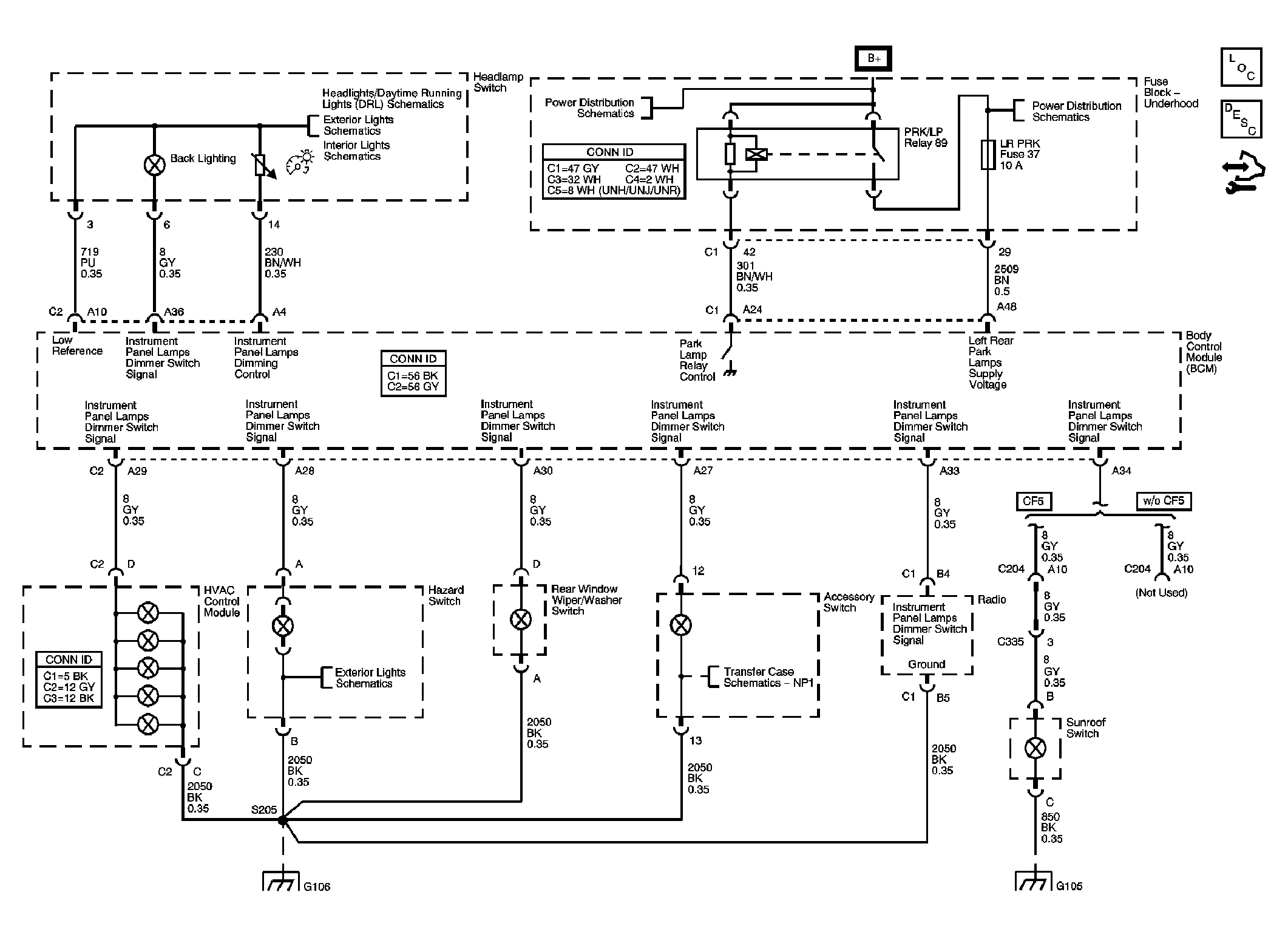

Home >> Hummer >> 2007 >> H3 Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting >> Schematic and Routing Diagrams >> Interior Lights Dimming Schematics
