Exterior Lights Schematics

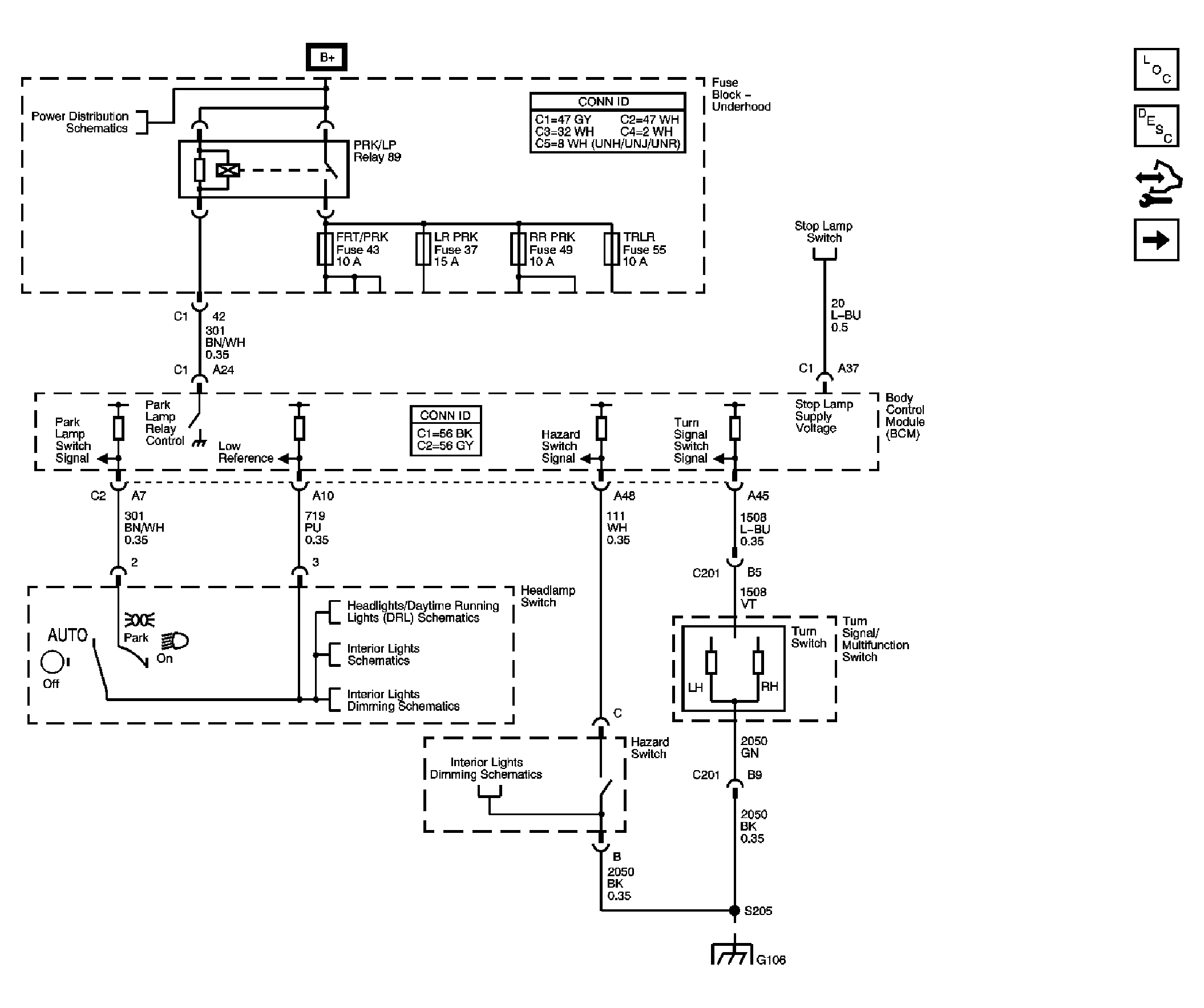

Fig 1: Hazard Switch, Park Lamp Control and Turn Signal/Stop Lamp Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

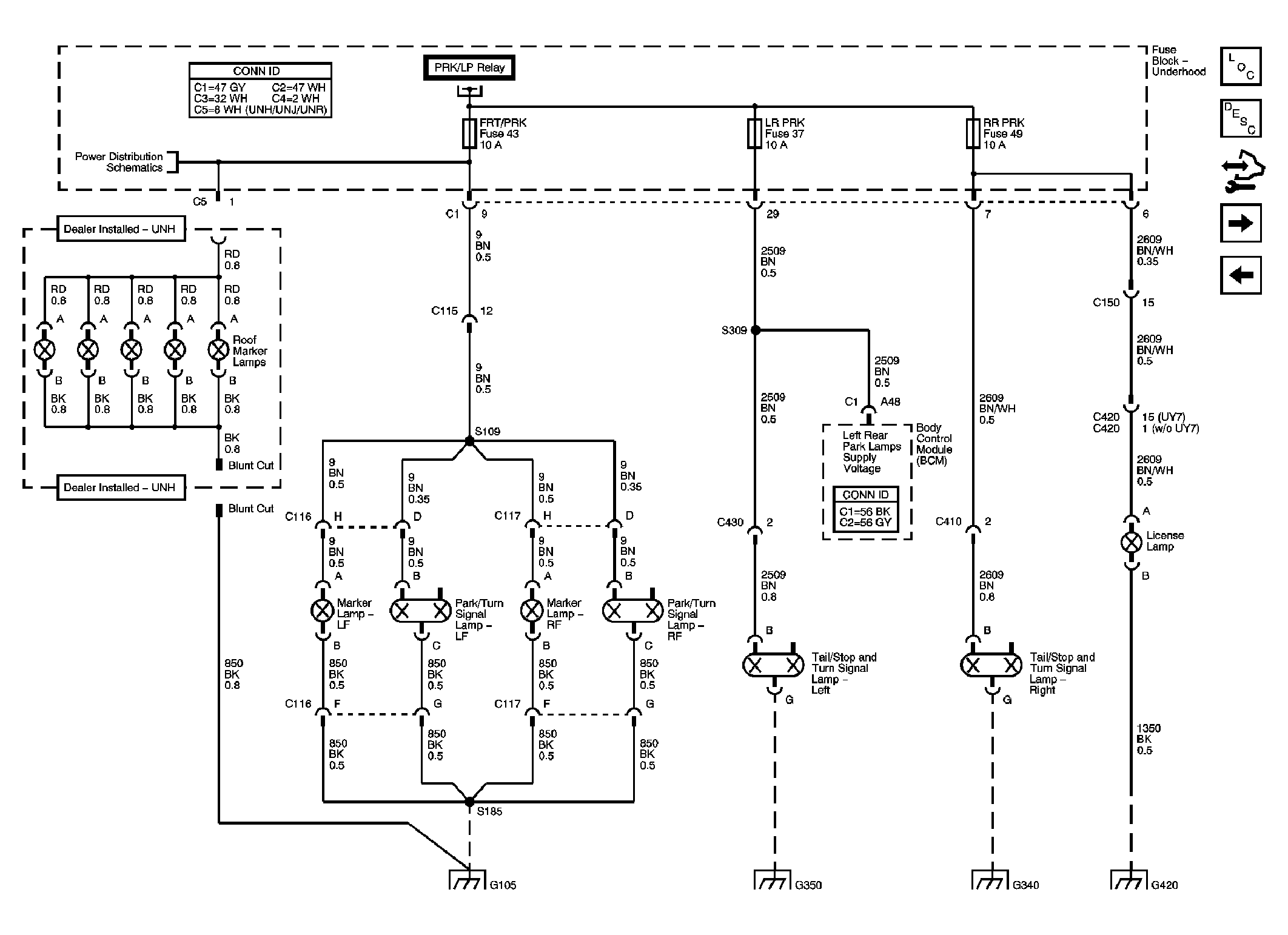

Fig 2: Roof Marker Lamps (UNH), License Lamp and Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

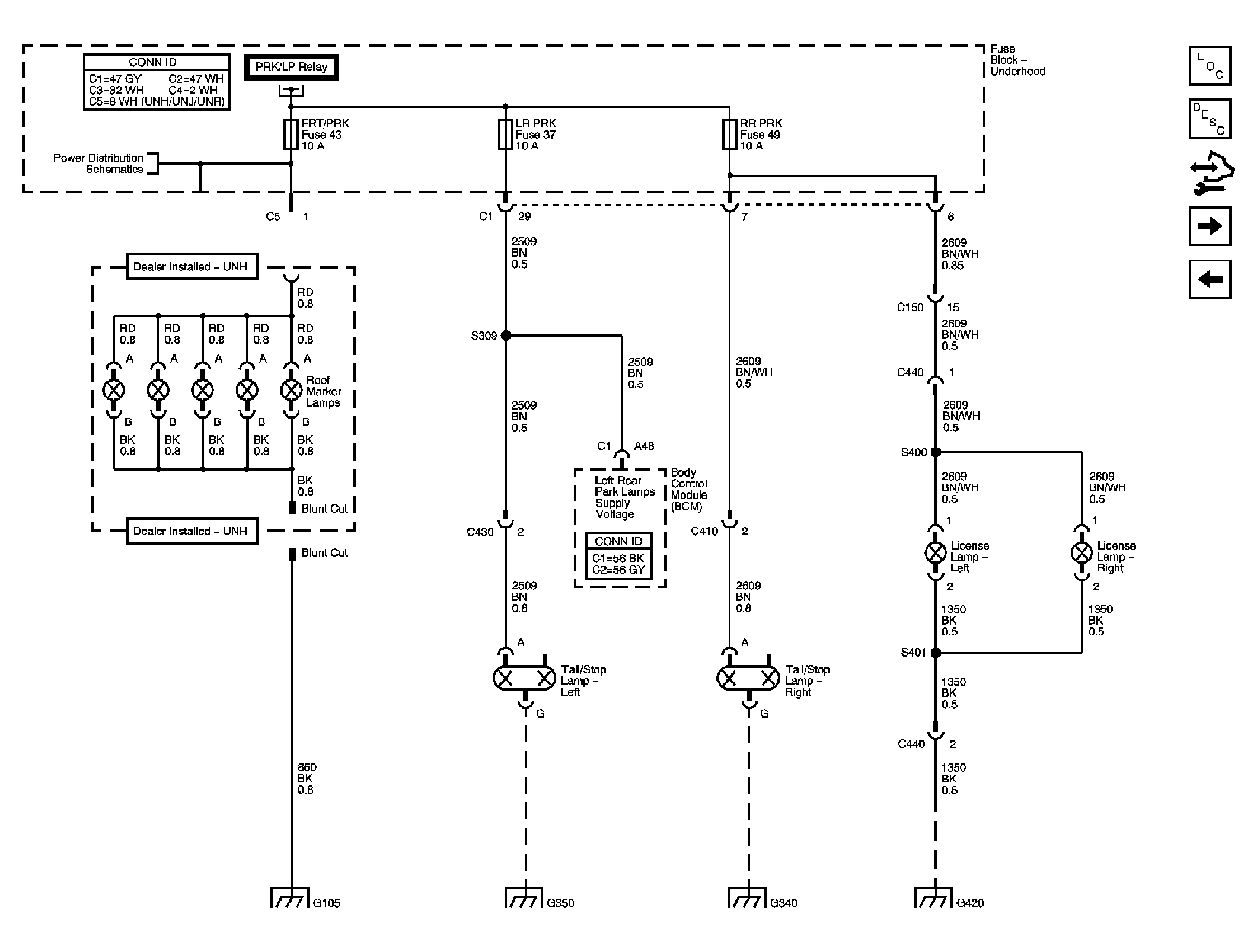

Fig 3: Roof Marker Lamps (UNH), License Lamps and Park Lamps Schematic - Export

Courtesy of GENERAL MOTORS CORP.

Fig 4: Turn Signal/Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

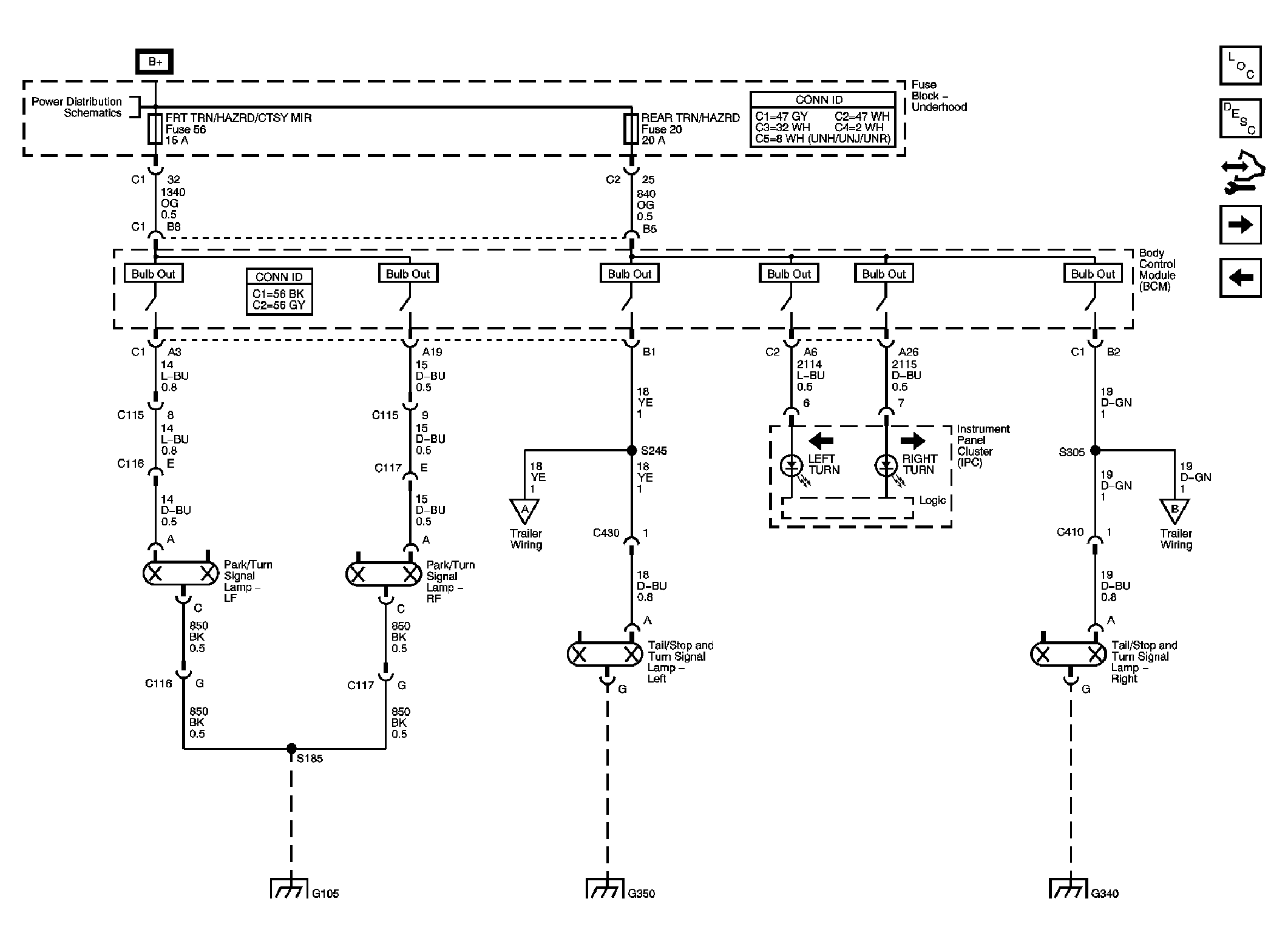

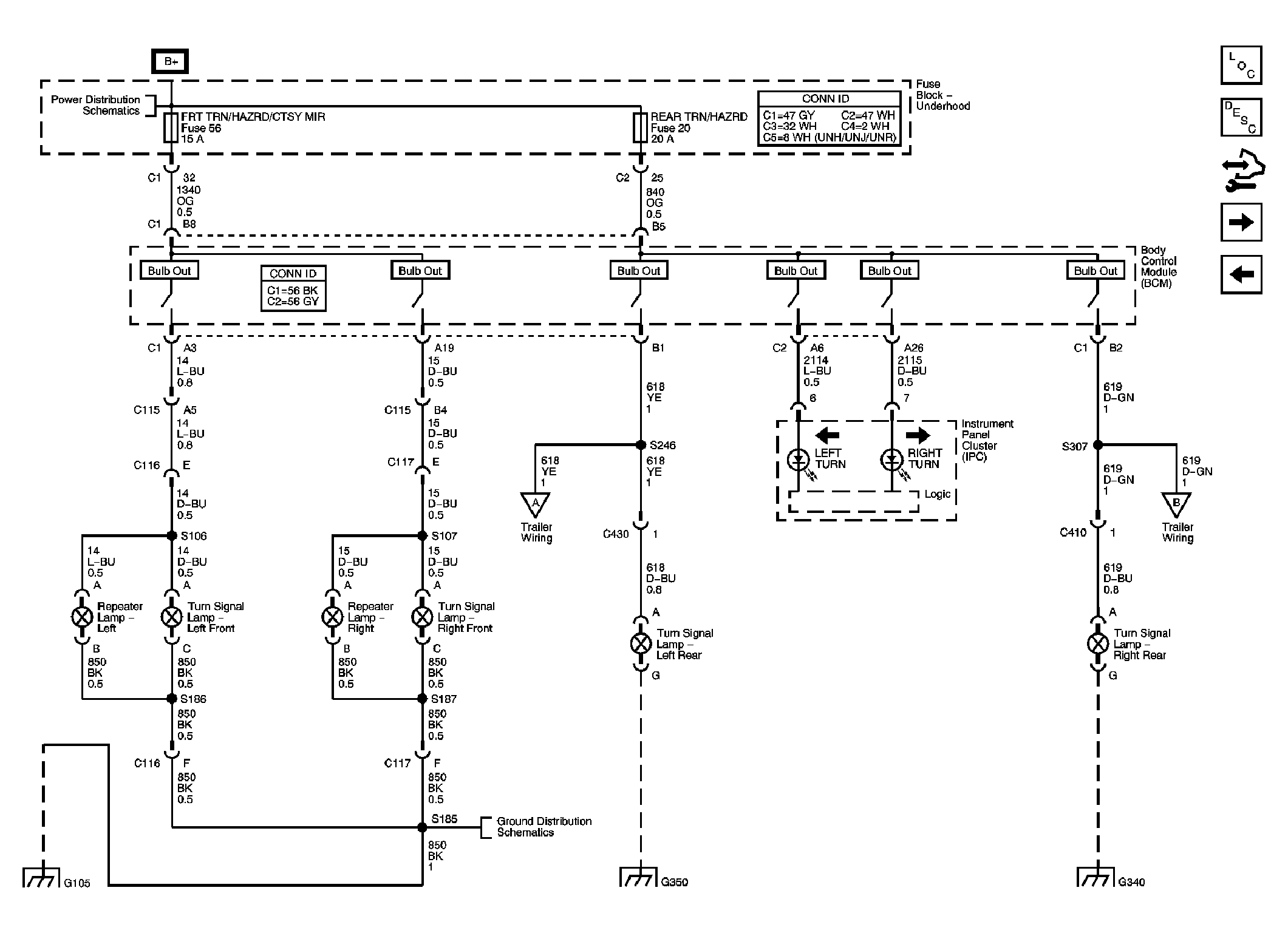

Fig 5: Turn Signal/Hazard Lamps Schematic - Export

Courtesy of GENERAL MOTORS CORP.

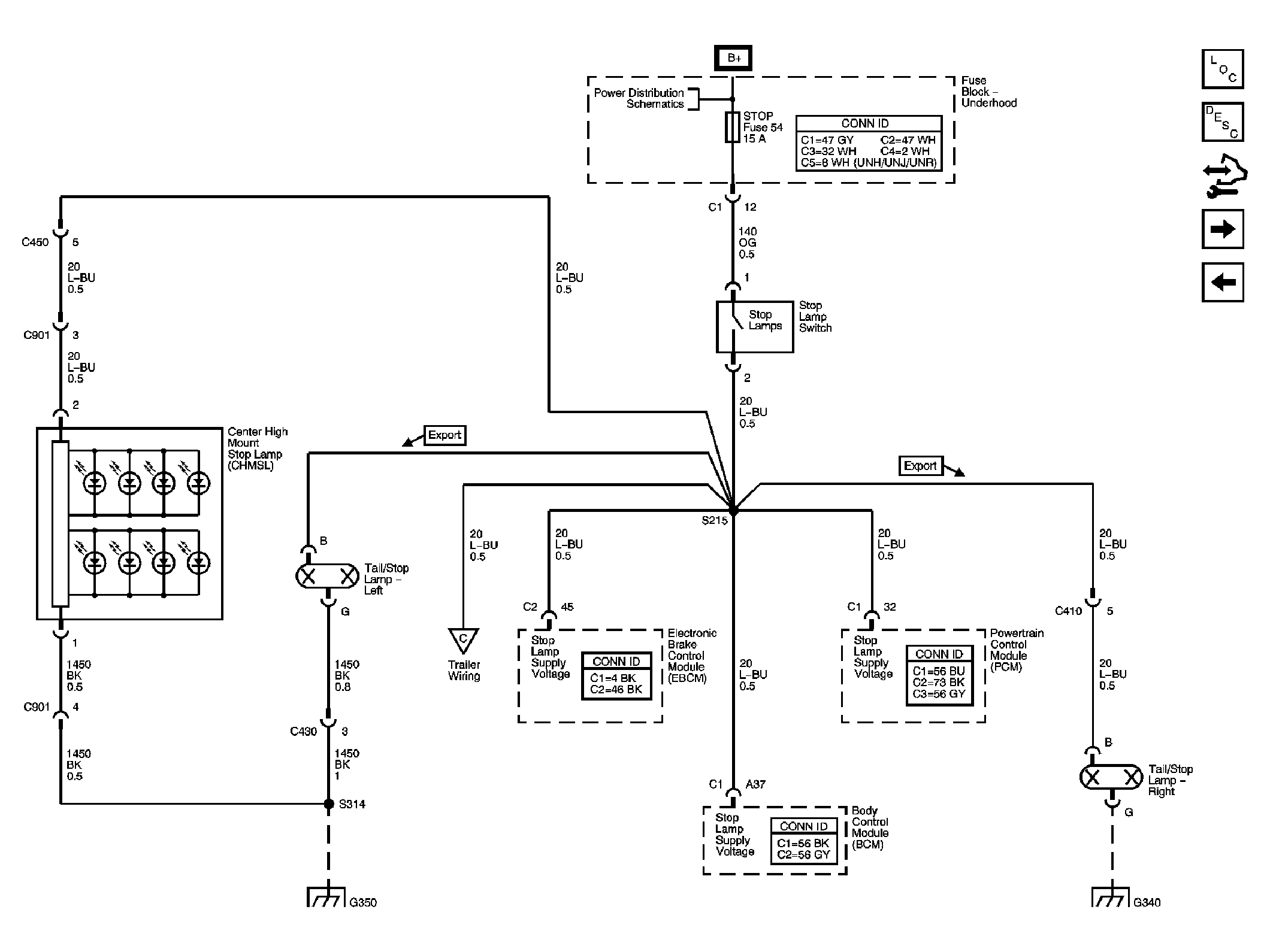

Fig 6: Center High Mount Stop Lamps (CHMSL) and Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

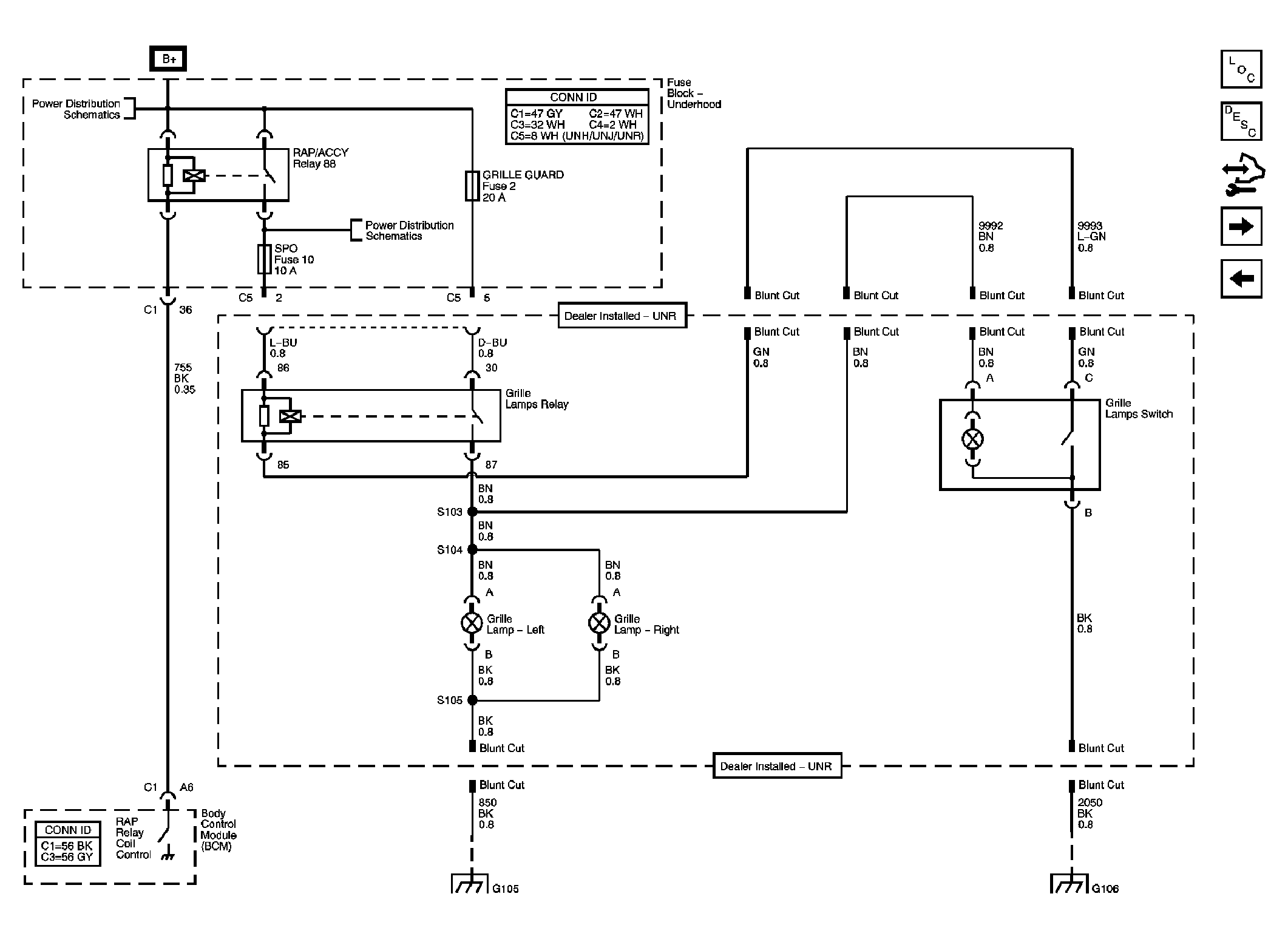

Fig 7: Grille Mounted Off Road Lamps Schematic - UNR

Courtesy of GENERAL MOTORS CORP.

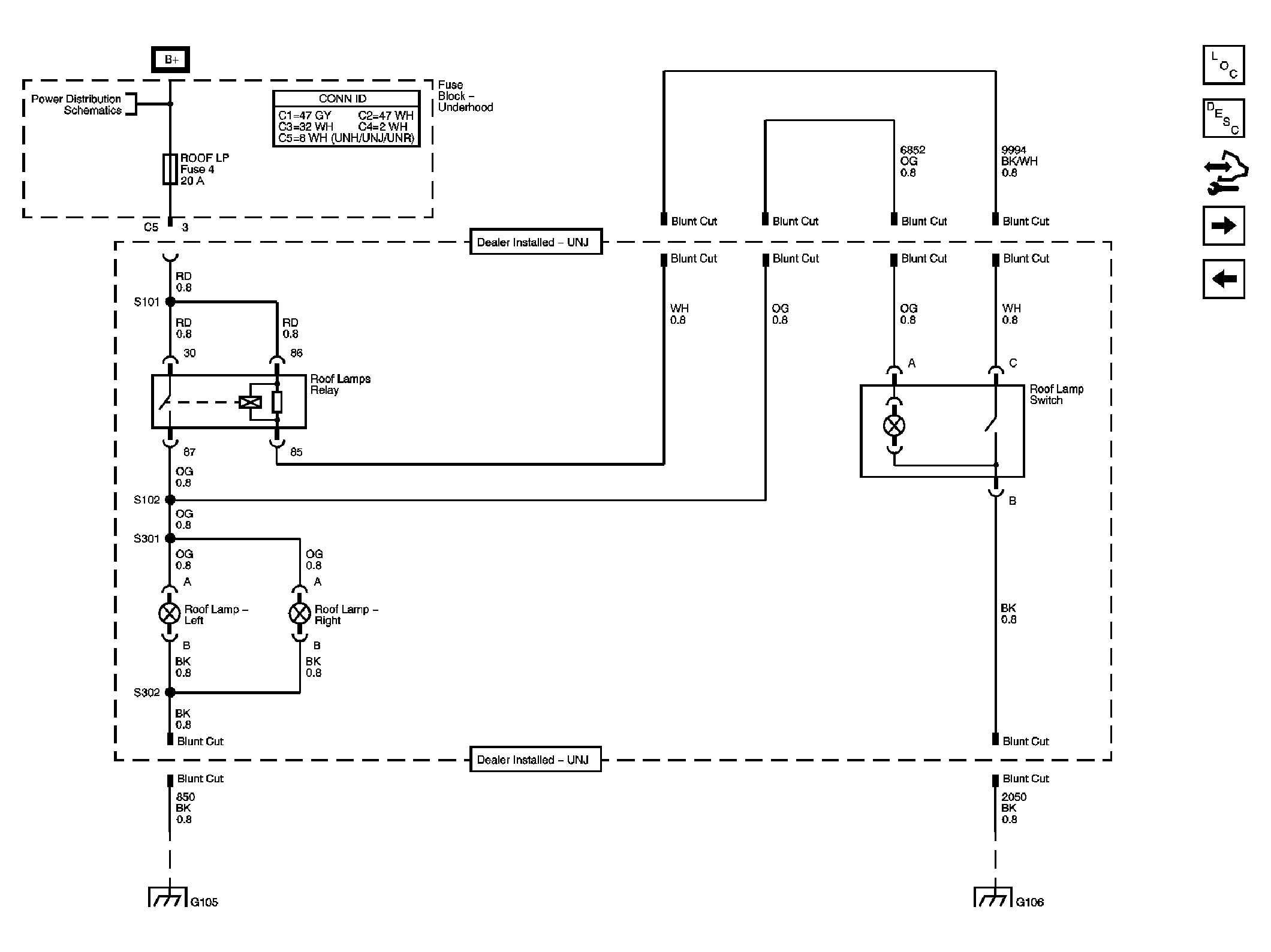

Fig 8: Roof Mounted Off Road Lamps Schematic - UNJ

Courtesy of GENERAL MOTORS CORP.

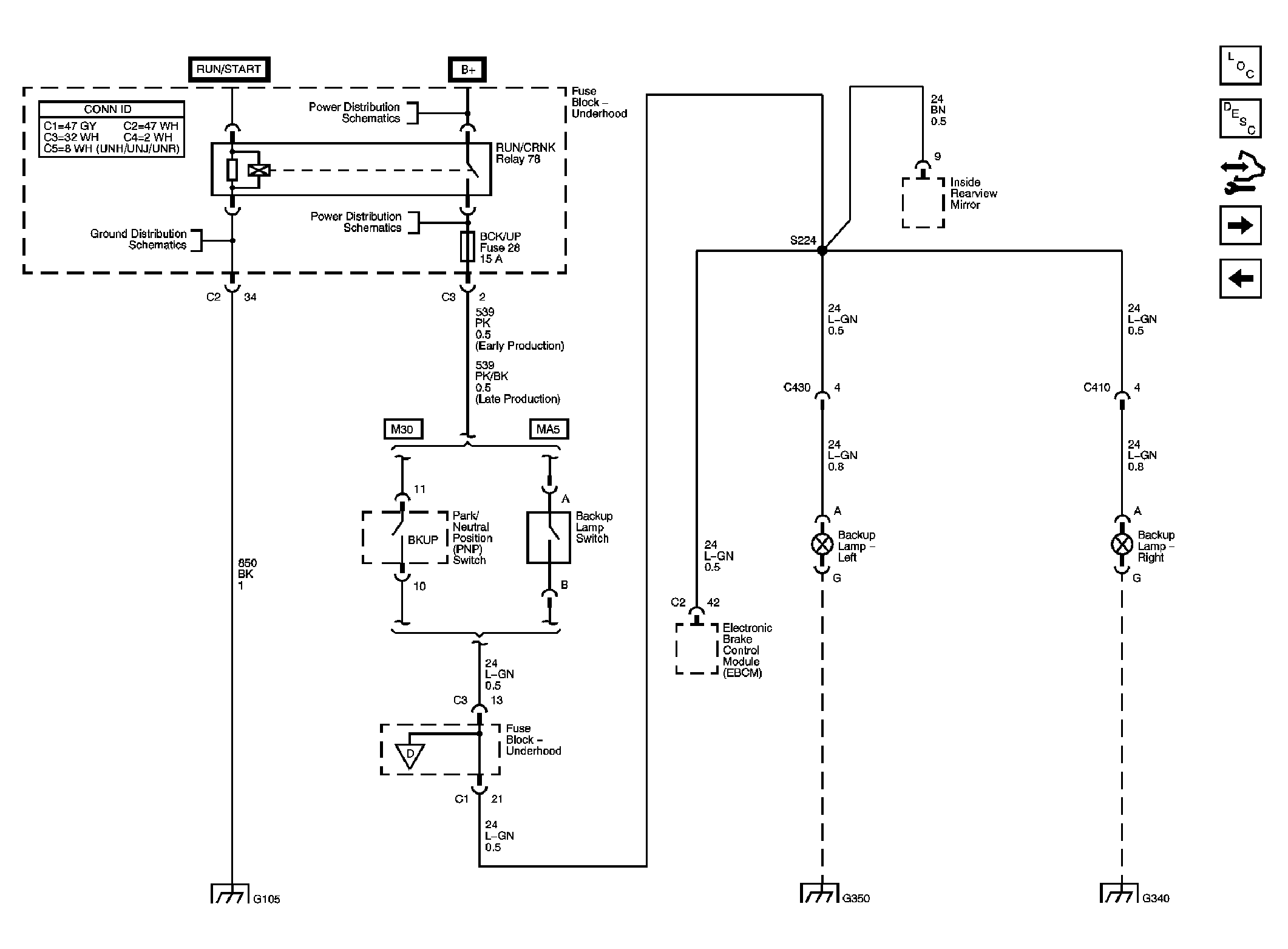

Fig 9: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

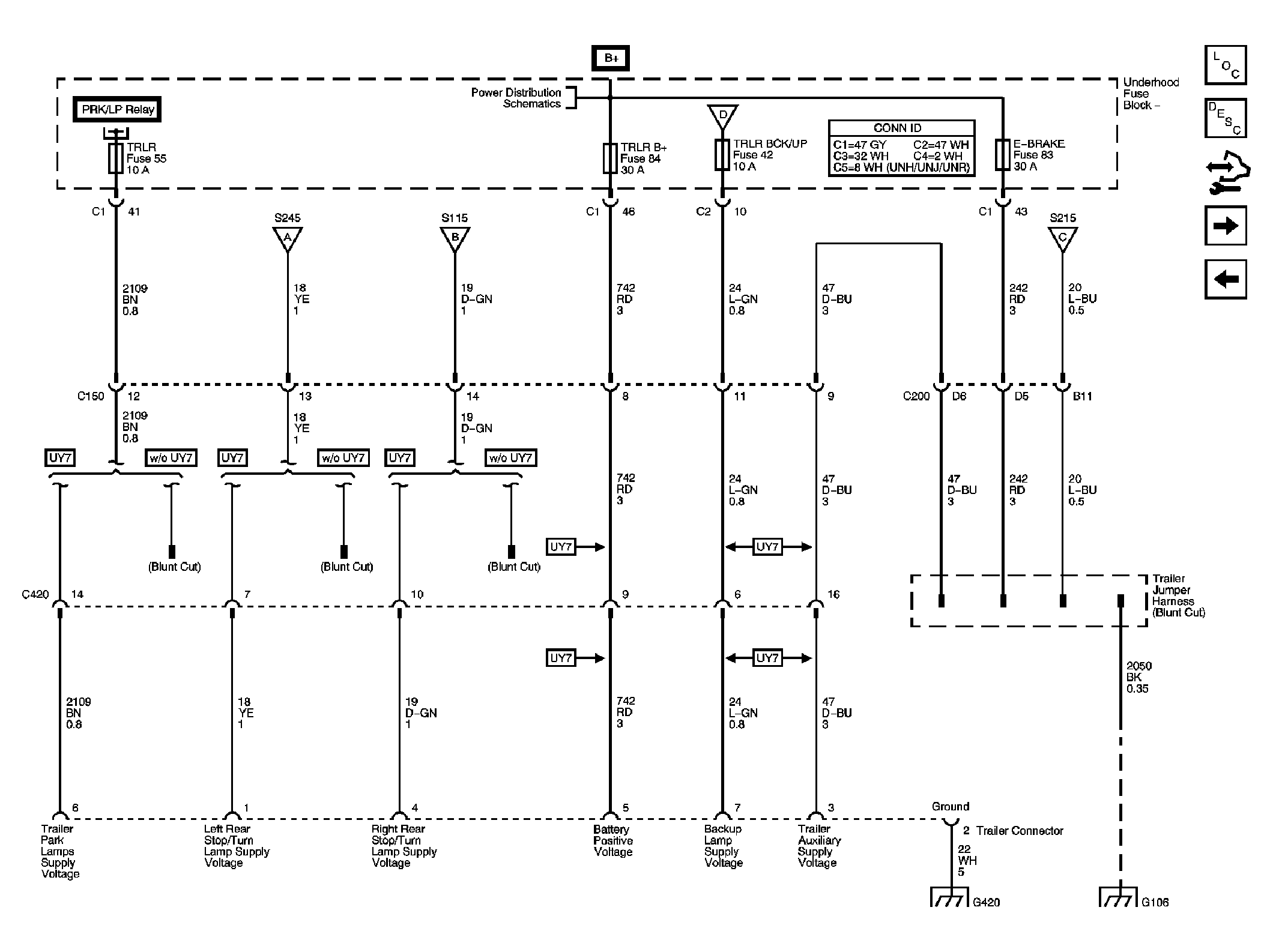

Fig 10: Trailer Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

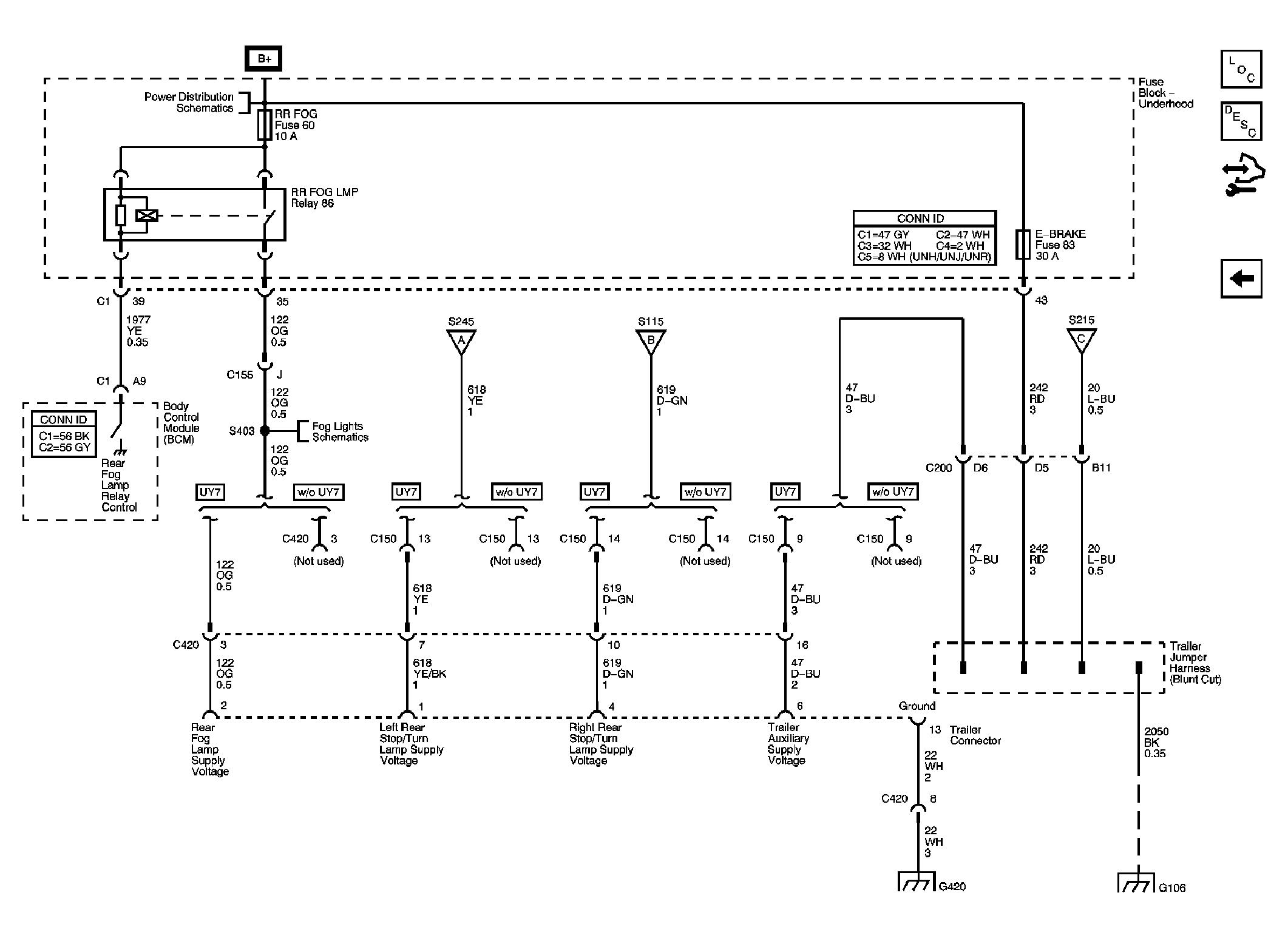

Fig 11: Trailer Wiring Schematic - Export (1 of 2)

Courtesy of GENERAL MOTORS CORP.

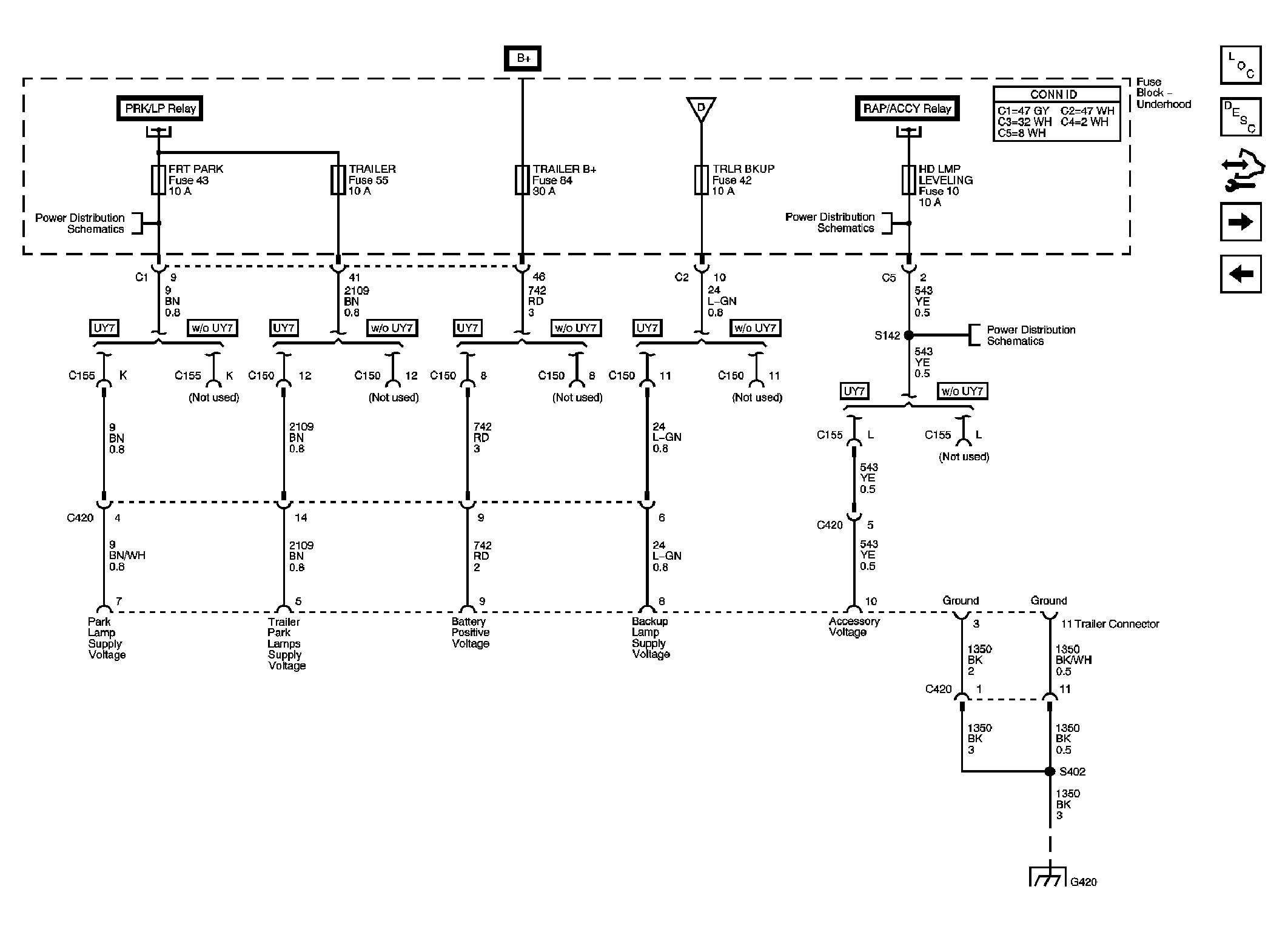

Fig 12: Trailer Wiring Schematic - Export (2 of 2)

Courtesy of GENERAL MOTORS CORP.
