Headlamp Switch Replacement
Headlamp Switch Replacement

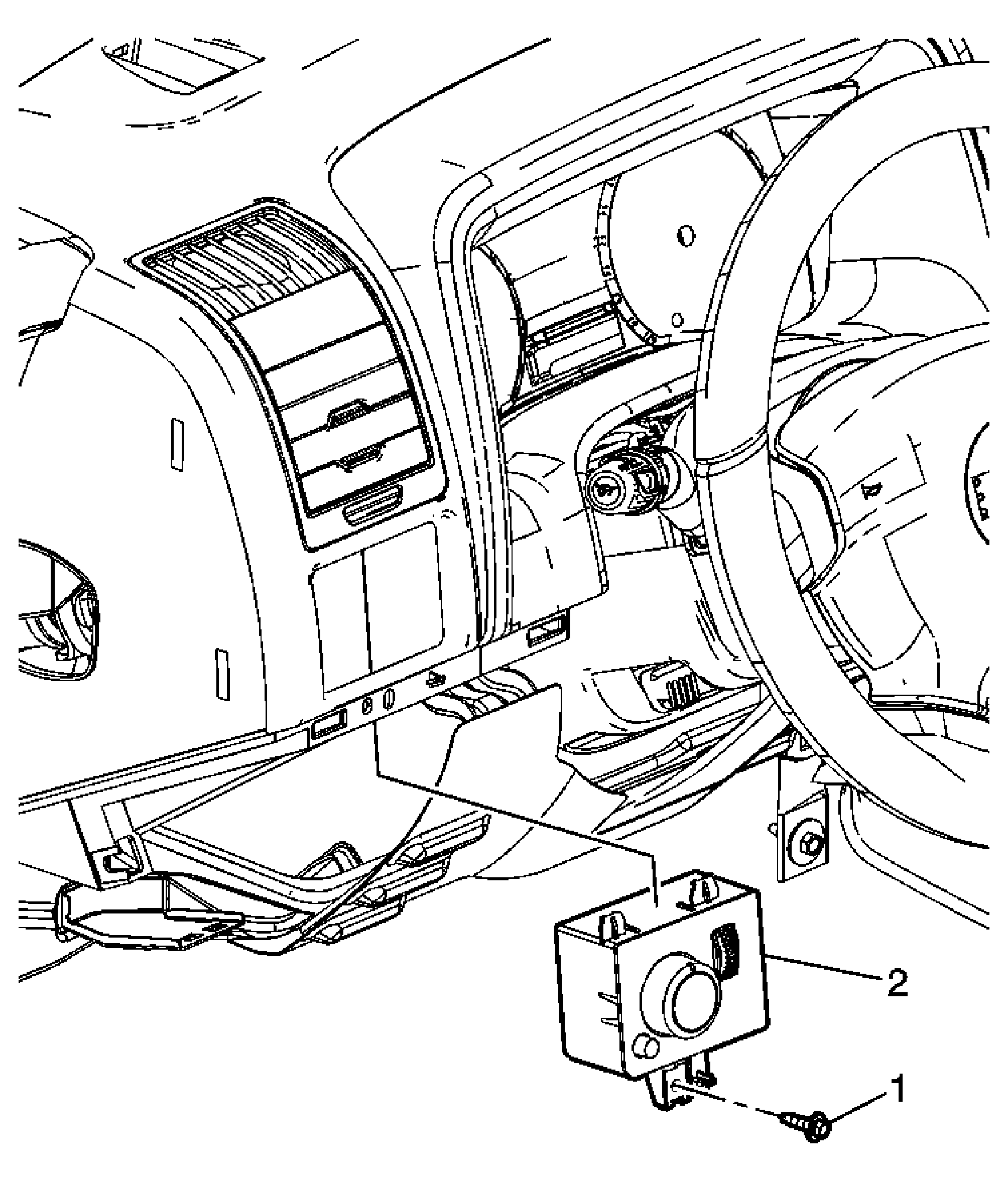

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the left knee bolster panel. Refer to Driver Knee Bolster Replacement (Left Hand Drive)
or Driver Knee Bolster Replacement (Right Hand Drive)
. |
|
| 1 | Screw, Headlamp Switch Tighten: 2 N.m (18 lb in) |
| 2 | Switch Assembly, Headlamp Tip: Disconnect the electrical connector. |
