Instrument Cluster Schematics

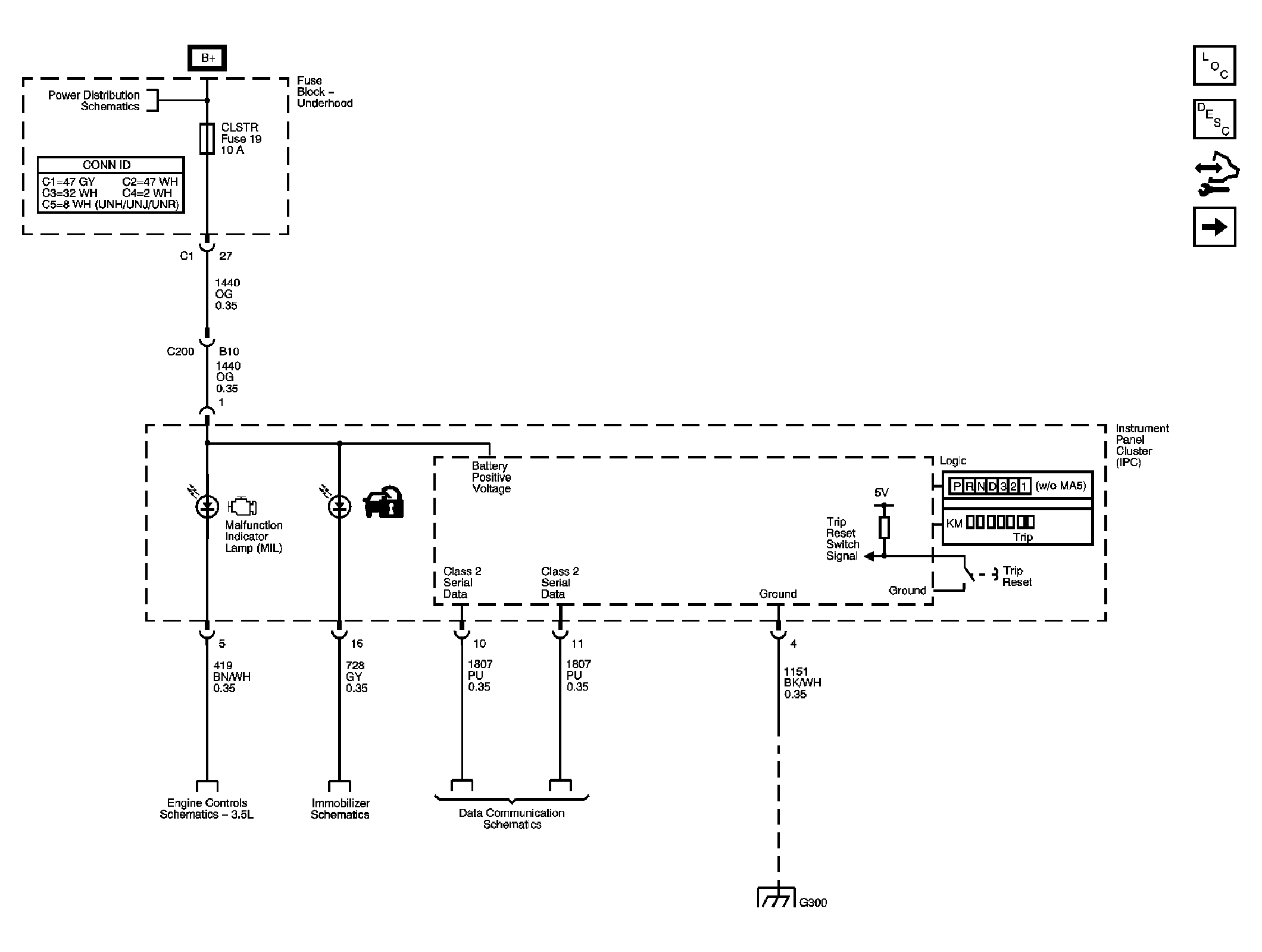

Fig 1: Power, Ground, MIL and Security Schematic
GM1777975Courtesy of GENERAL MOTORS CORP.

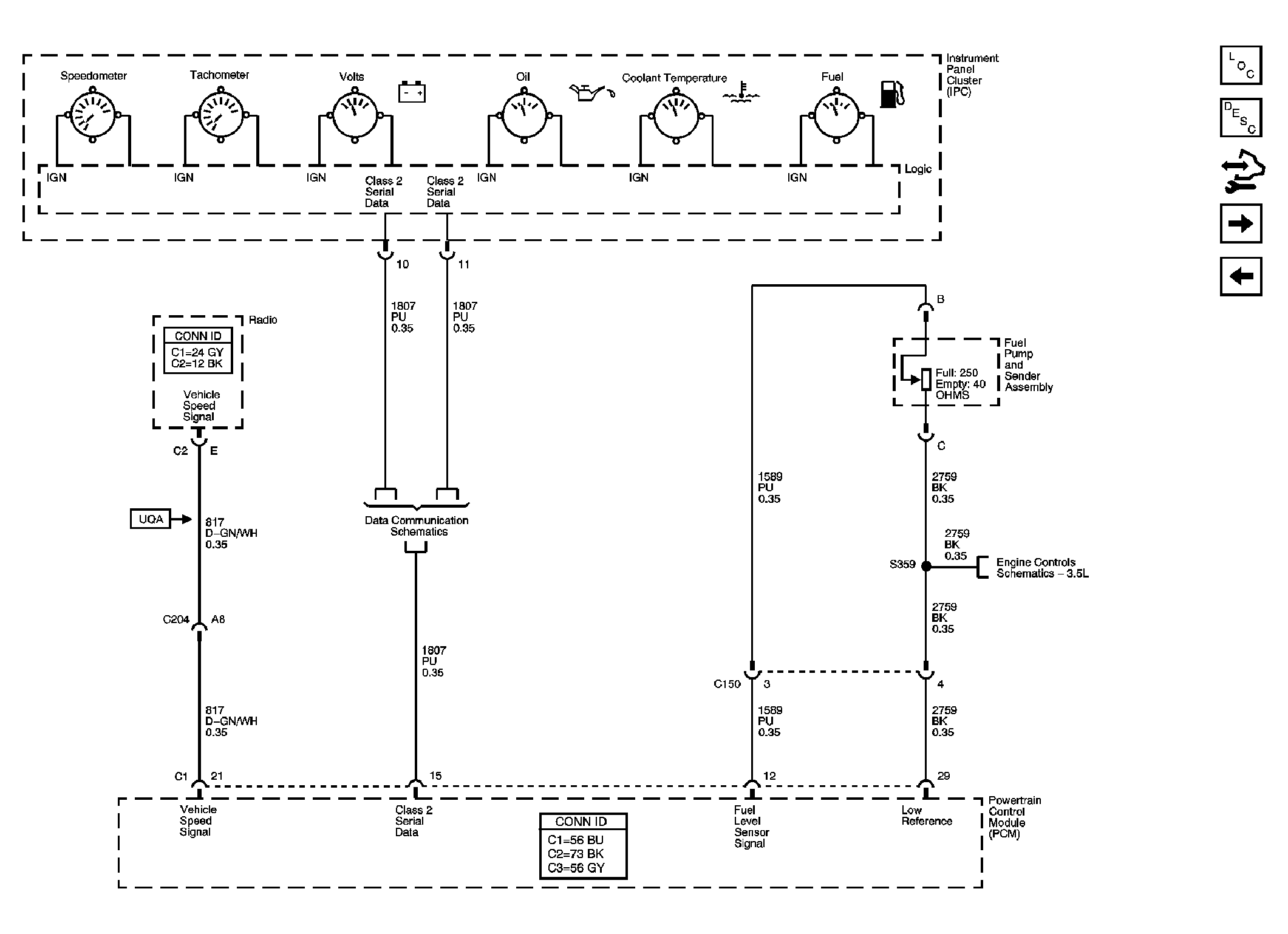

Fig 2: Gages Schematic
GM1778020Courtesy of GENERAL MOTORS CORP.

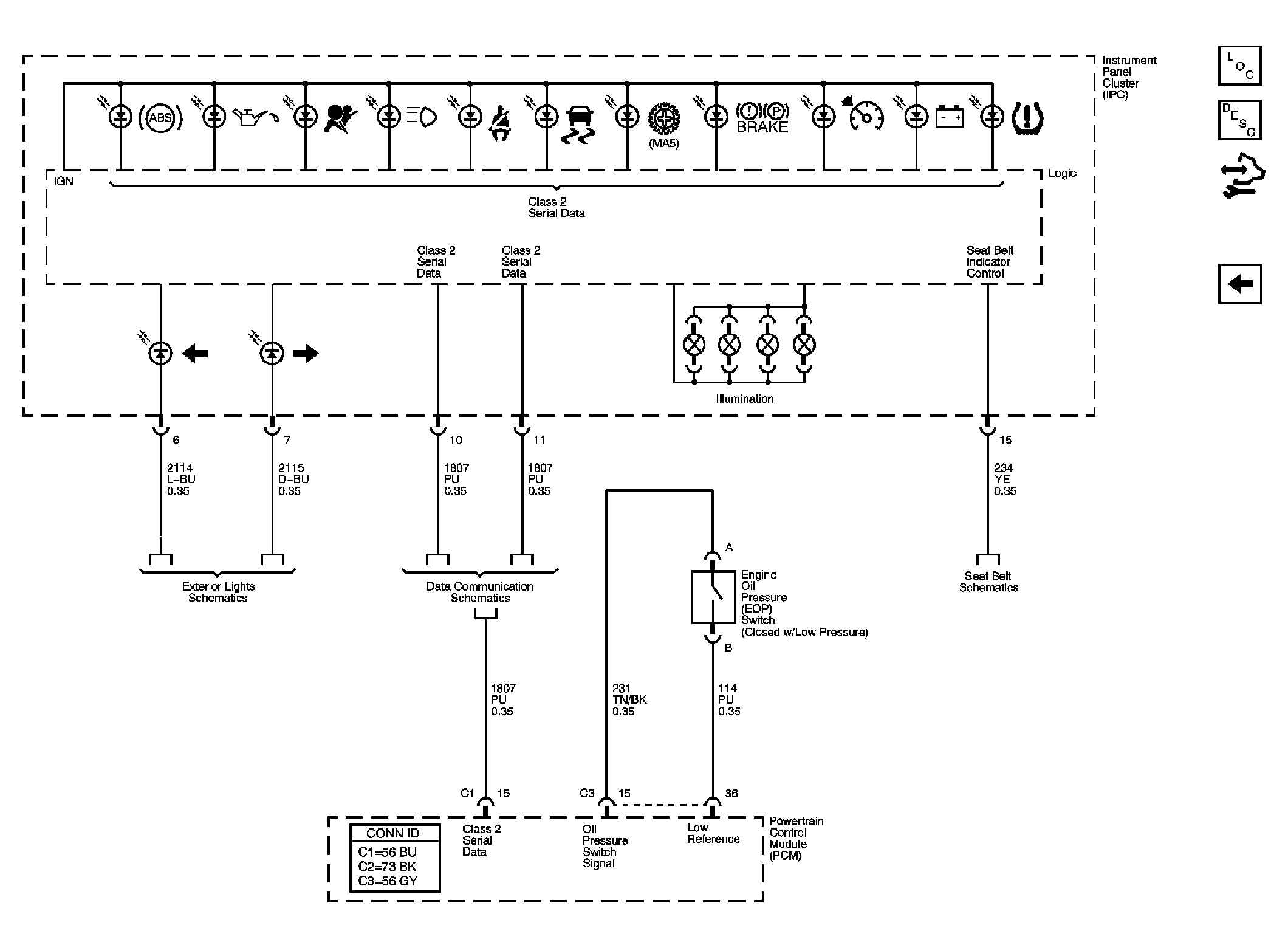

Fig 3: Indicators Schematic
GM1778056Courtesy of GENERAL MOTORS CORP.
