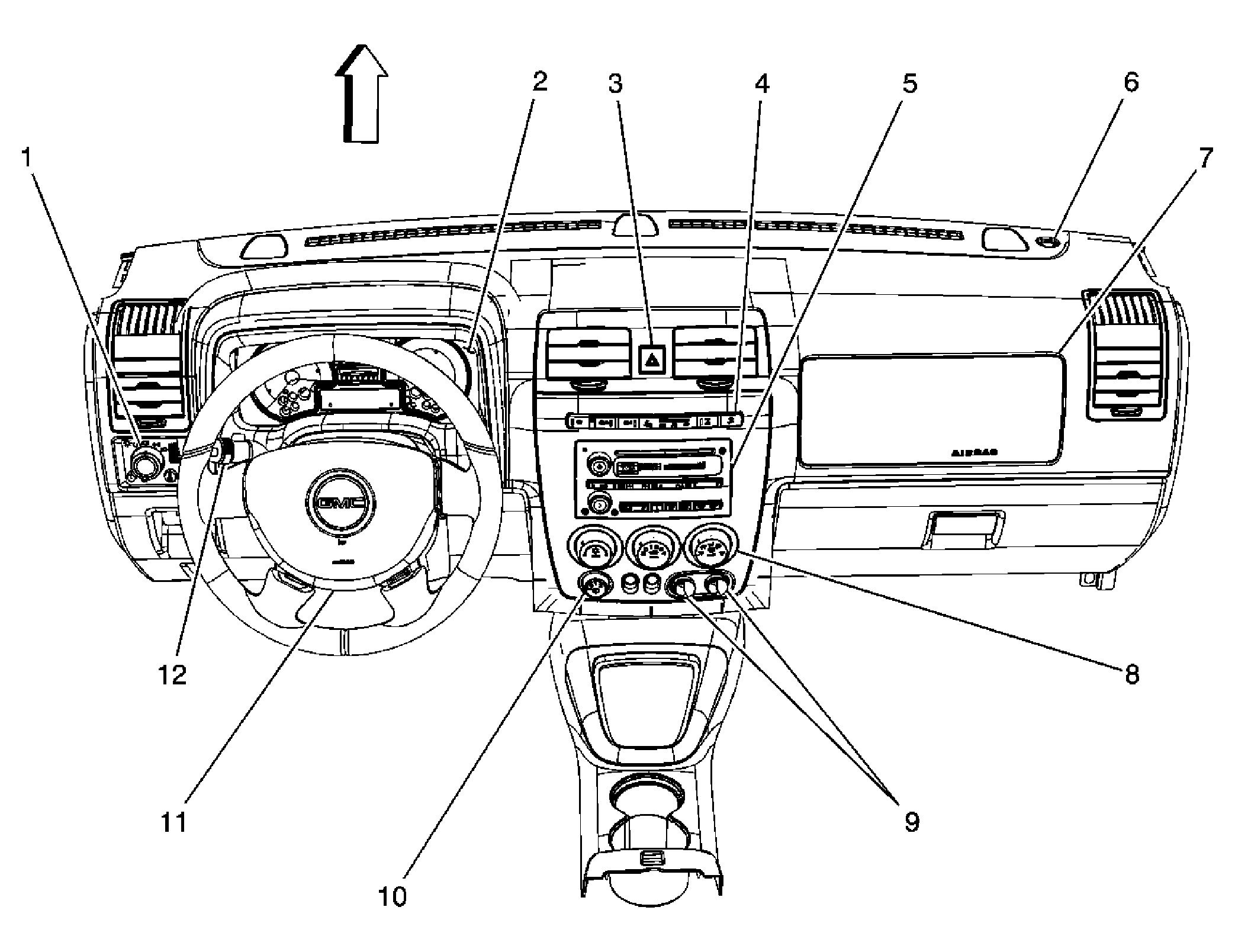

Displays and Gages Component Views
| Callout | Component Name |
|---|---|
| 1 | Headlamp Switch |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Hazard Switch |
| 4 | Accessory Switch |
| 5 | Radio |
| 6 | Ambient Light Sensor |
| 7 | Inflatable Restraint I/P Module |
| 8 | HVAC Control Module |
| 9 | Auxiliary Power Outlets - Front |
| 10 | Rear Window Wiper/Washer Switch |
| 11 | Inflatable Restraint Steering Wheel Module |
| 12 | Turn Signal/Multifunction Switch |
| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure (MAP) Sensor |
| 2 | Throttle Body |
| 3 | Ignition Coil 3 |
| 4 | Ignition Coil 2 |
| 5 | Ignition Coil 1 |
| 6 | Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust |
| 7 | Engine Oil Pressure (EOP) Switch |
| 8 | Heated Oxygen Sensor (HO2S) 1 |
| 9 | Engine Coolant Temperature (ECT) Sensor |
| 10 | Engine Coolant Temperature (ECT) Sensor Connector |
| 11 | C101 Fuel Injector Harness to Engine Harness |
| 12 | Ignition Coil 5 |
| 13 | Ignition Coil 4 |
