Actuator: Locations



Rear Axle Component Views

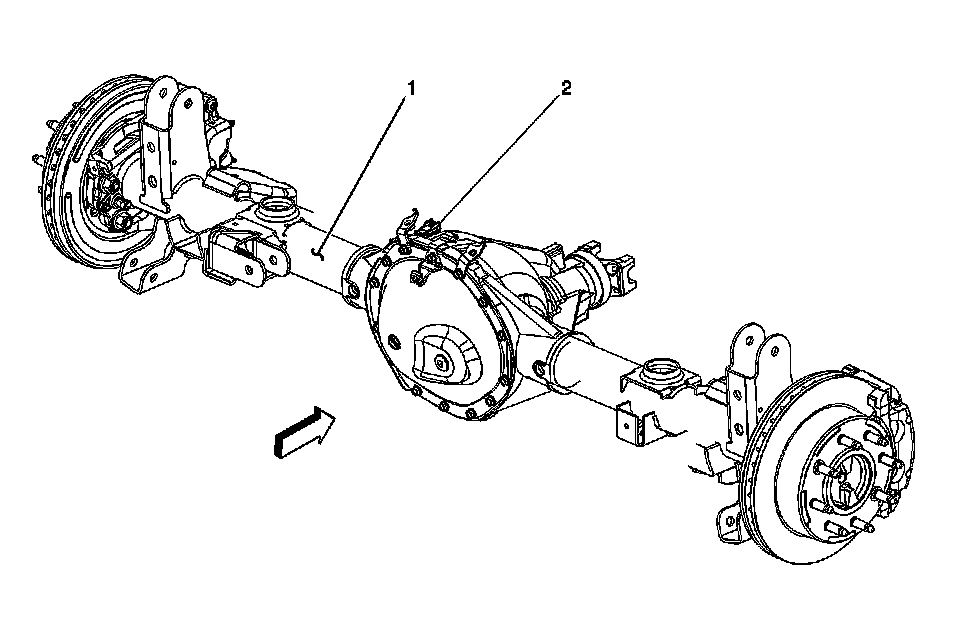

Rear Differential Lock Actuator

Rear Differential Lock Actuator:





1 - Rear Axle
2 - Rear Differential Lock Actuator
