Noise Diagnosis - Front Suspension

Noise Diagnosis - Front Suspension

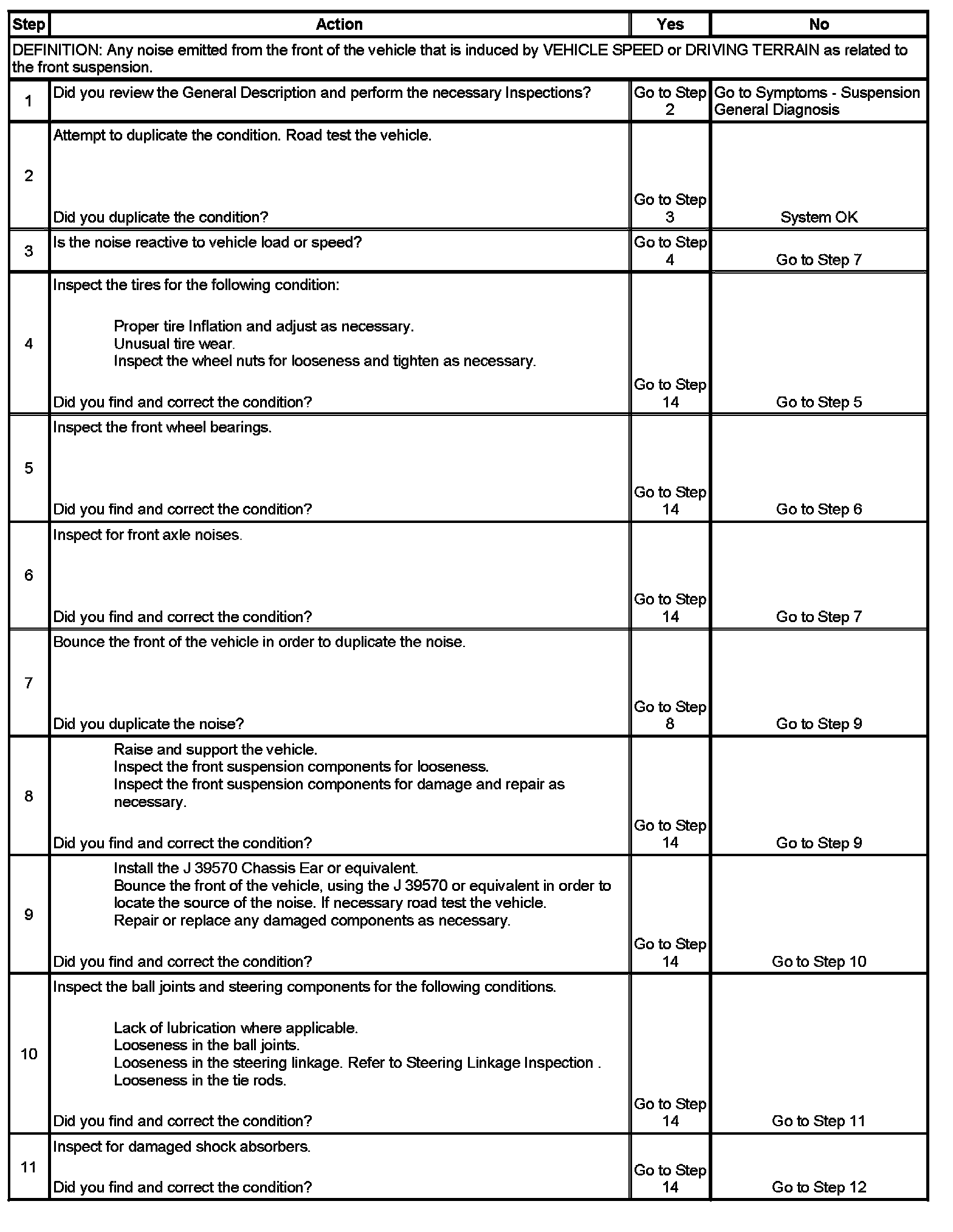

Step 1 - Step 11:

Step 12 - Step 14:
