Vacuum and Vapor Hose Diagrams

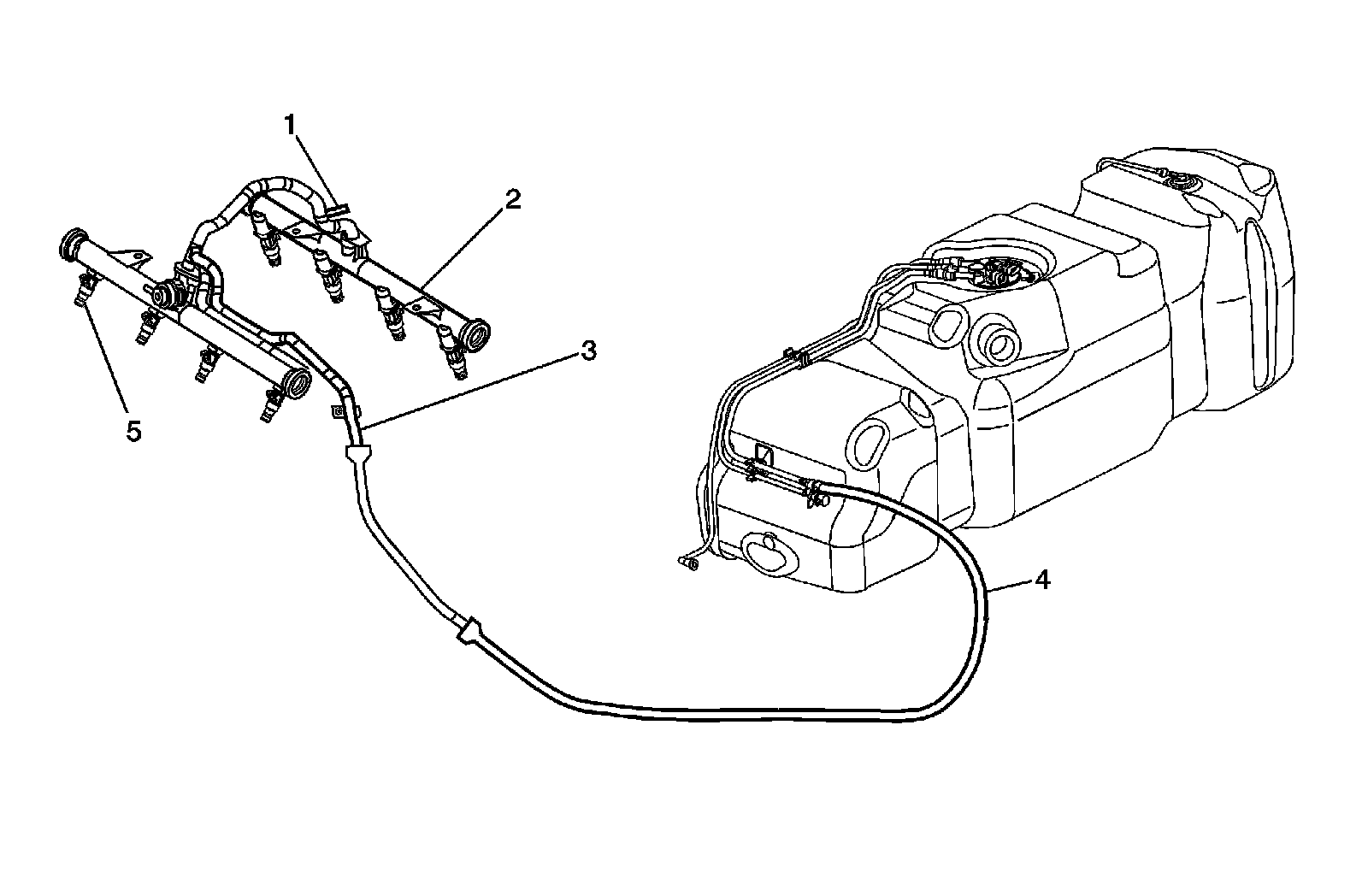

Fuel Hose/Pipes Routing Diagram (Single Fuel Tank)




1 - Fuel Pressure Service Connection
2 - Fuel Injector Rail
3 - Fuel Rail Feed Pipe
4 - Fuel Feed Hose
5 - Fuel Injector
