Instrument Cluster Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

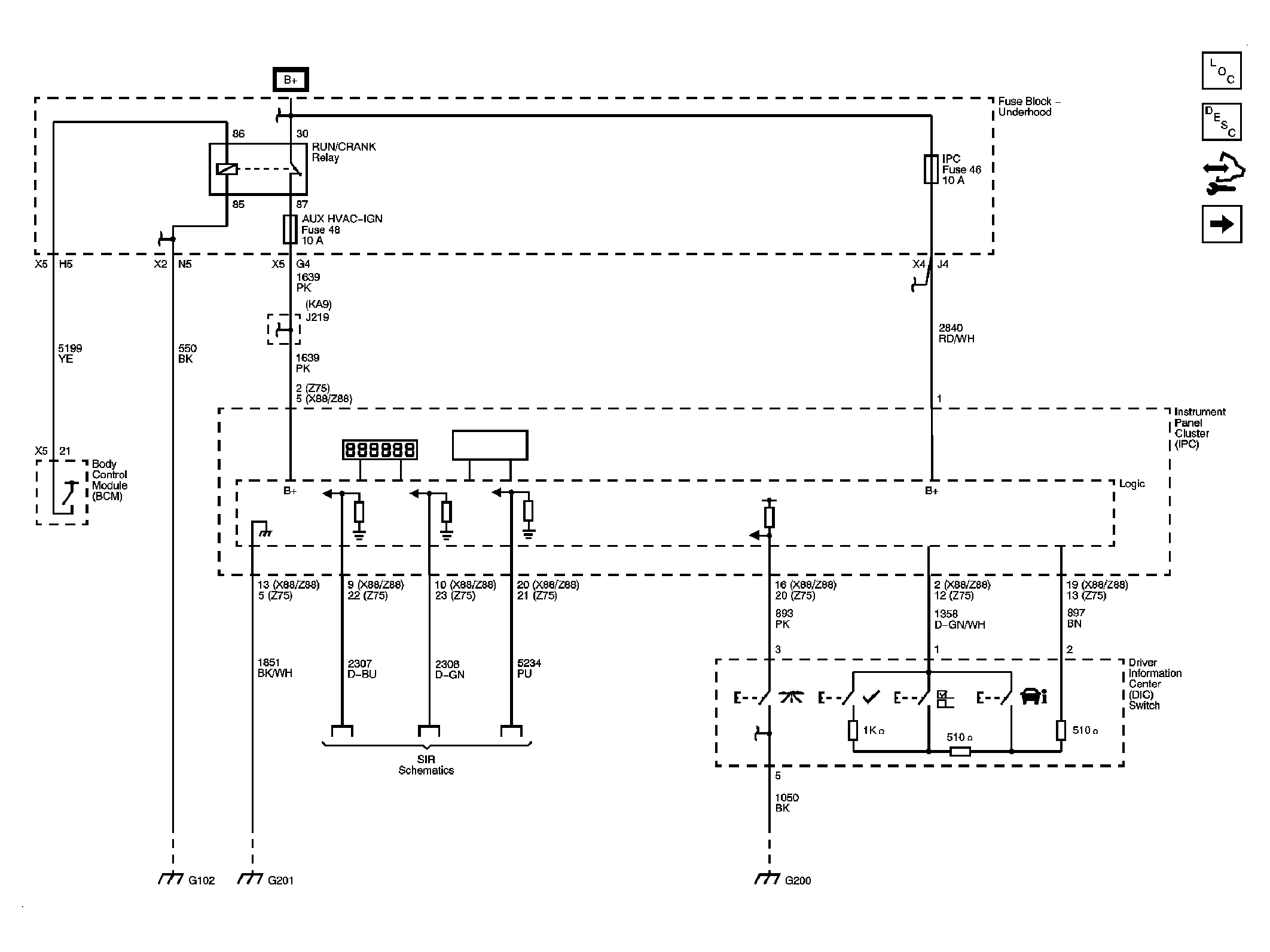

Fig 1: Power, Ground, and Driver Information Center Switch
GM1906979Courtesy of GENERAL MOTORS CORP.

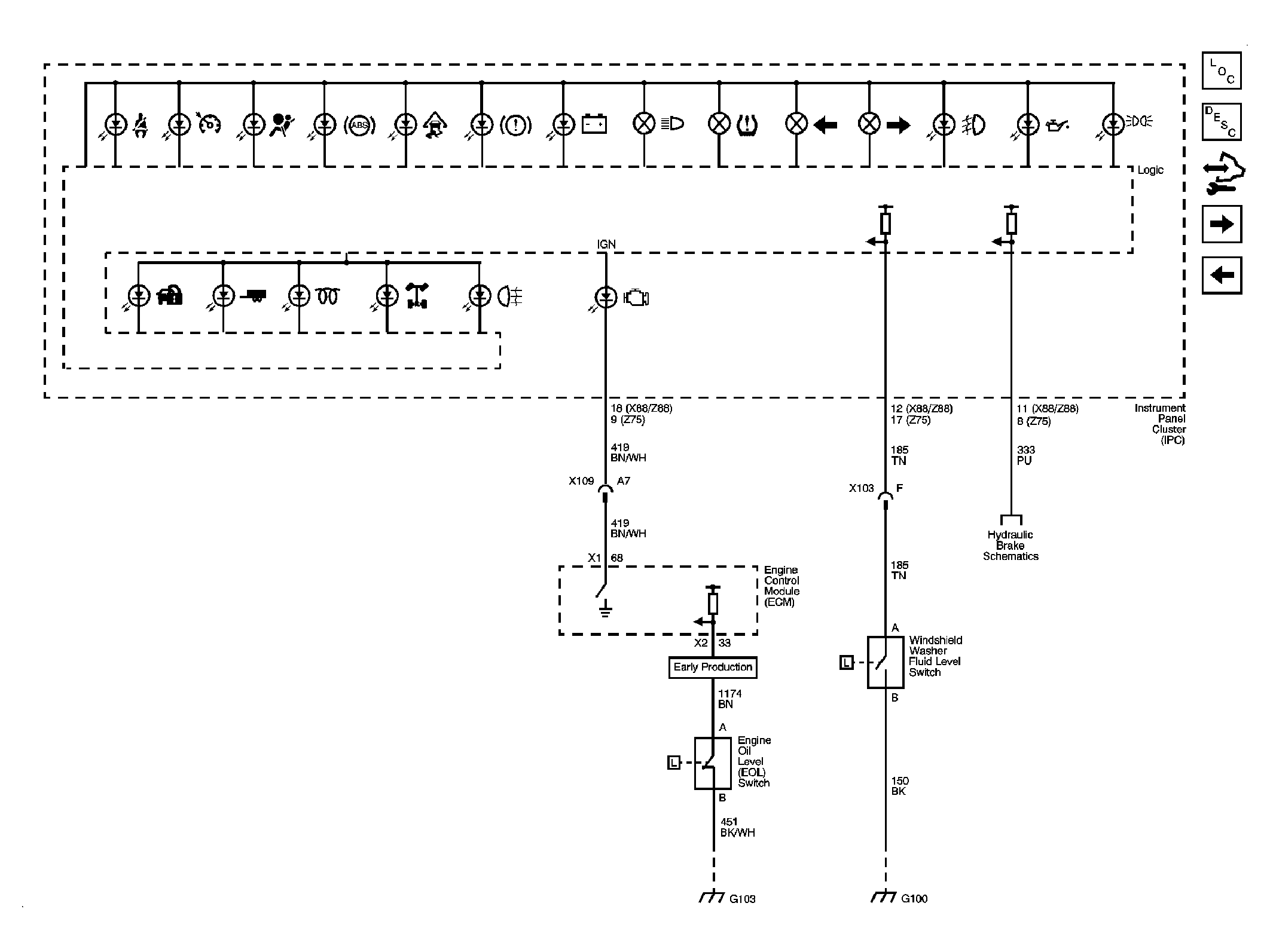

Fig 2: Indicators
GM1906986Courtesy of GENERAL MOTORS CORP.

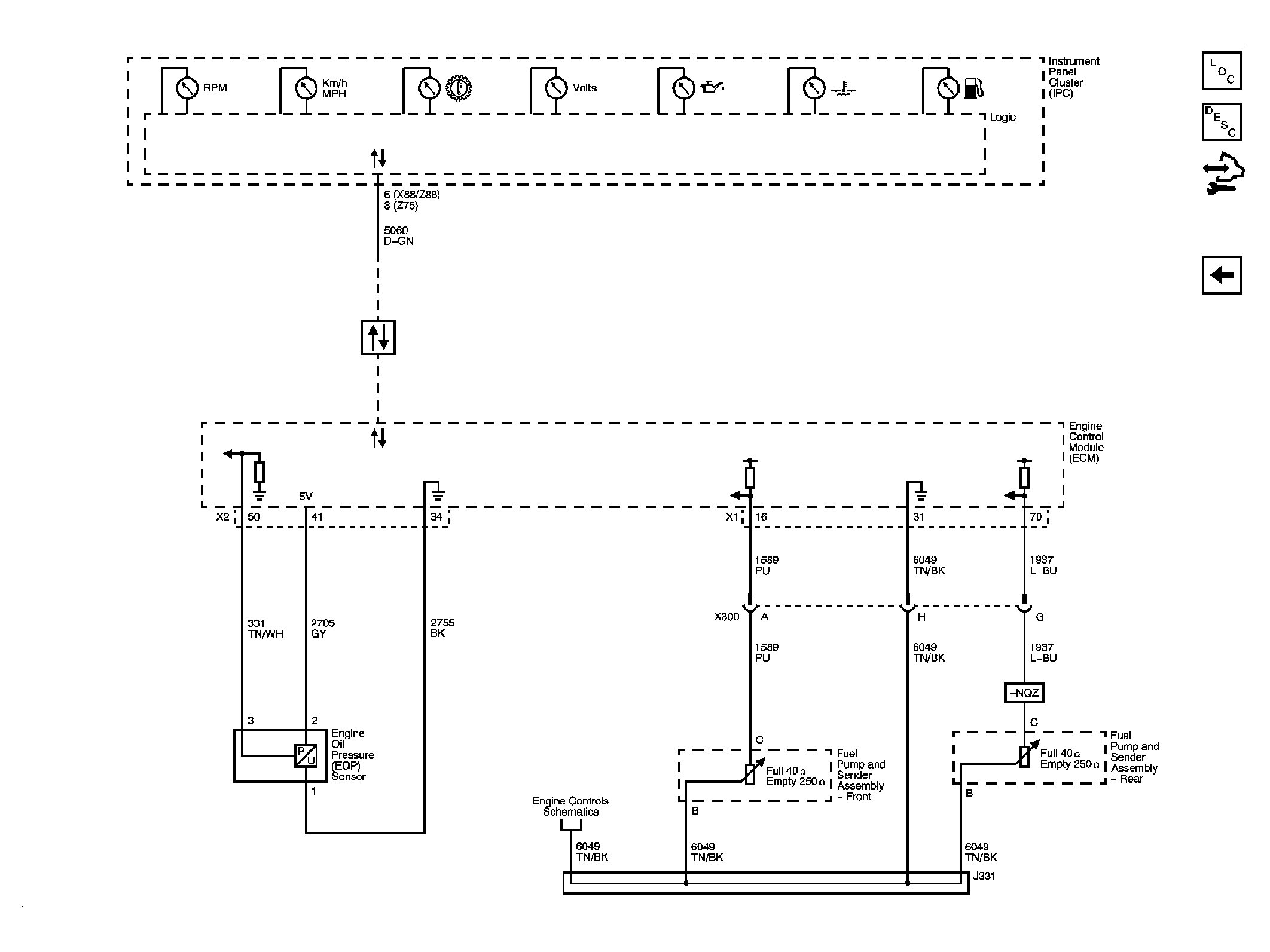

Fig 3: Gages
GM1906990Courtesy of GENERAL MOTORS CORP.
