Front Seat Replacement - Bucket (without HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

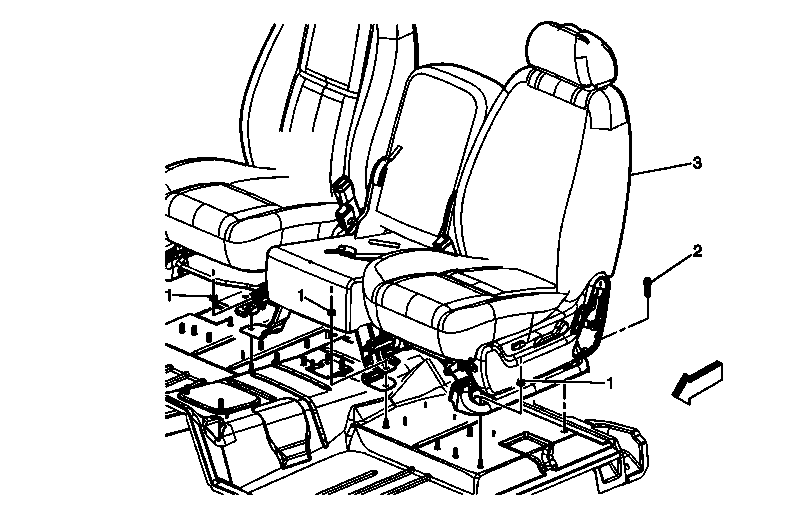

Fig 1: View Of Front Seat Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat adjuster covers. Refer to Front Seat Adjuster Track Finish Cover Replacement . Disconnect the seat belt from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Front Seat Assembly Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Adjust the seat rearward to access to the nuts. Tighten: 45 N.m (33 lb ft)
2	Front Seat Assembly Bolt (Qty: 2) Tip: Adjust the seat forward to access the bolts. Tighten: 45 N.m (33 lb ft)
3	Front Seat Assembly Tip: Disconnect the electrical connector. If removing and installing seat the center seat or floor console do not need to be removed.
