Front Side Door Sill Plate Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

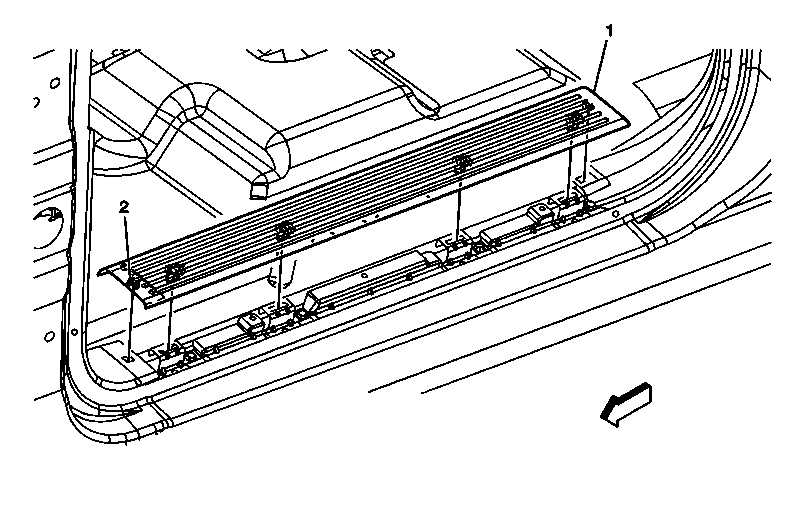

Fig 1: View Of Front Side Door Sill Plate Assembly & Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Sill Trim Plate Assembly Tip: Reposition the door opening weatherstrip out of the way. Pull upward to disengage retainers.
2	Front Side Door Trim Plate Retainer (Qty: 6)
