Power Take-Off (PTO) Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

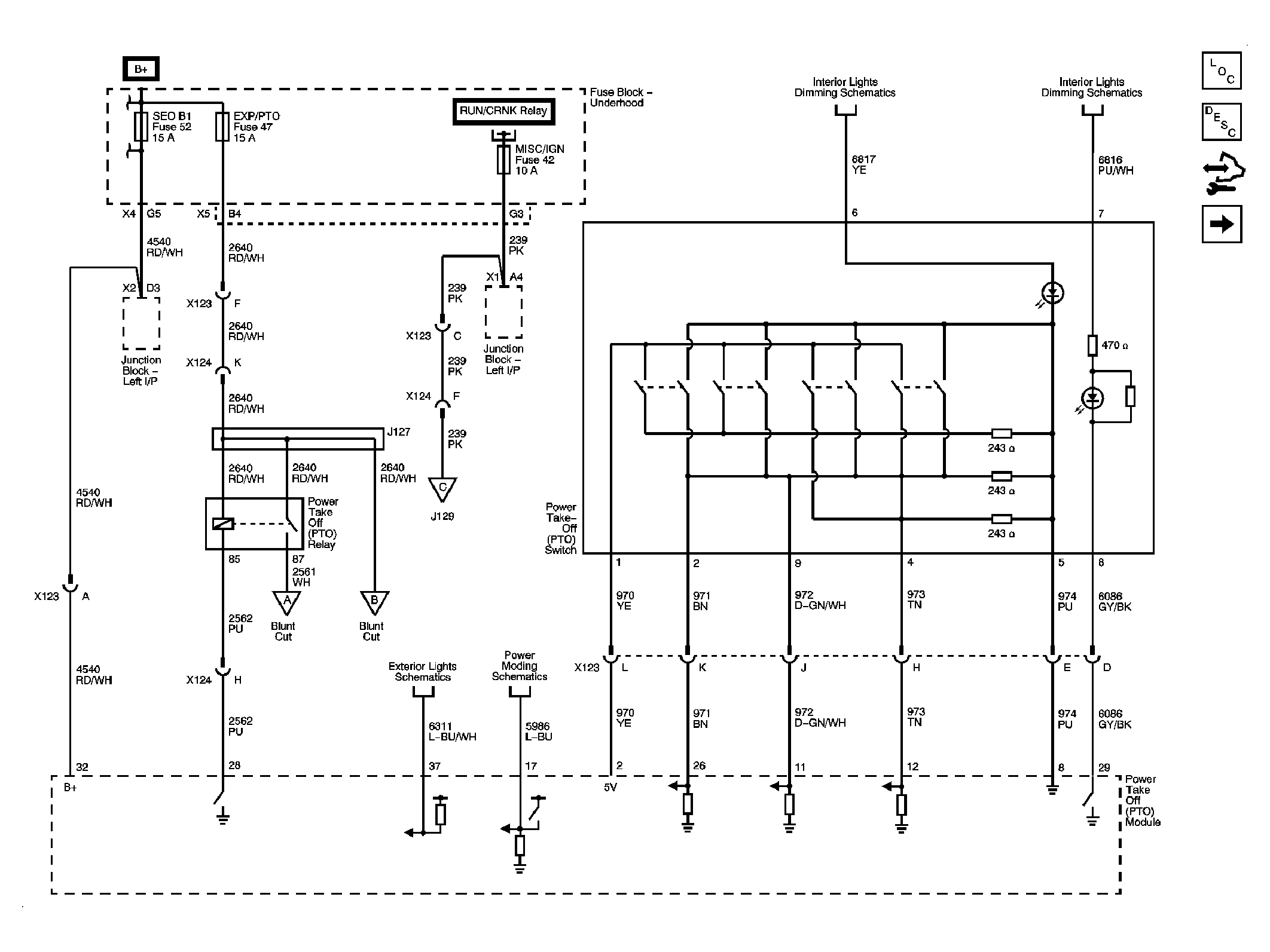

Fig 1: Switch Controls
GM1917002Courtesy of GENERAL MOTORS CORP.

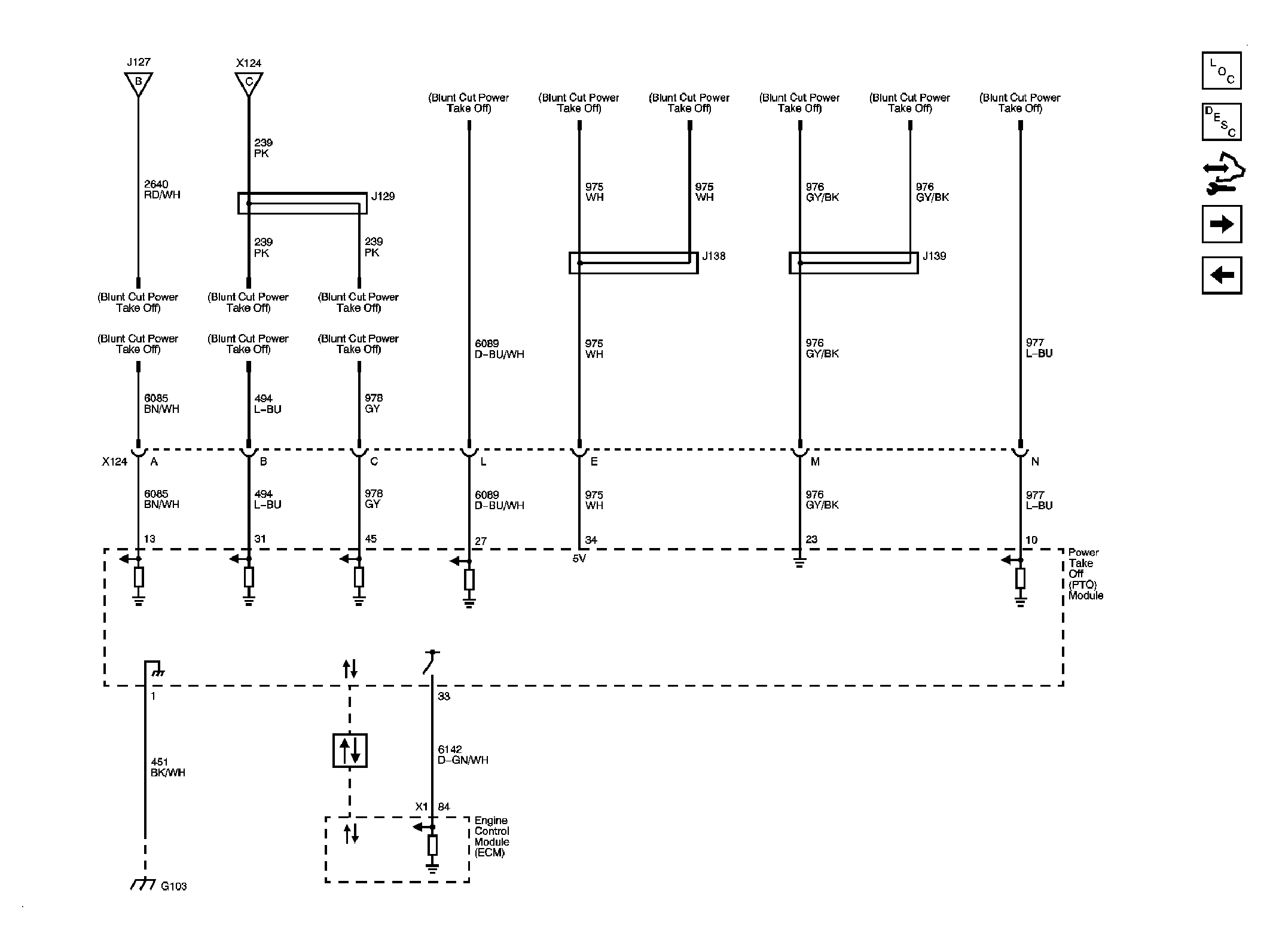

Fig 2: Wiring Provisions - 1 of 2
GM1917008Courtesy of GENERAL MOTORS CORP.
Fig 3: Wiring Provisions - 2 of 2
GM1917017Courtesy of GENERAL MOTORS CORP.
