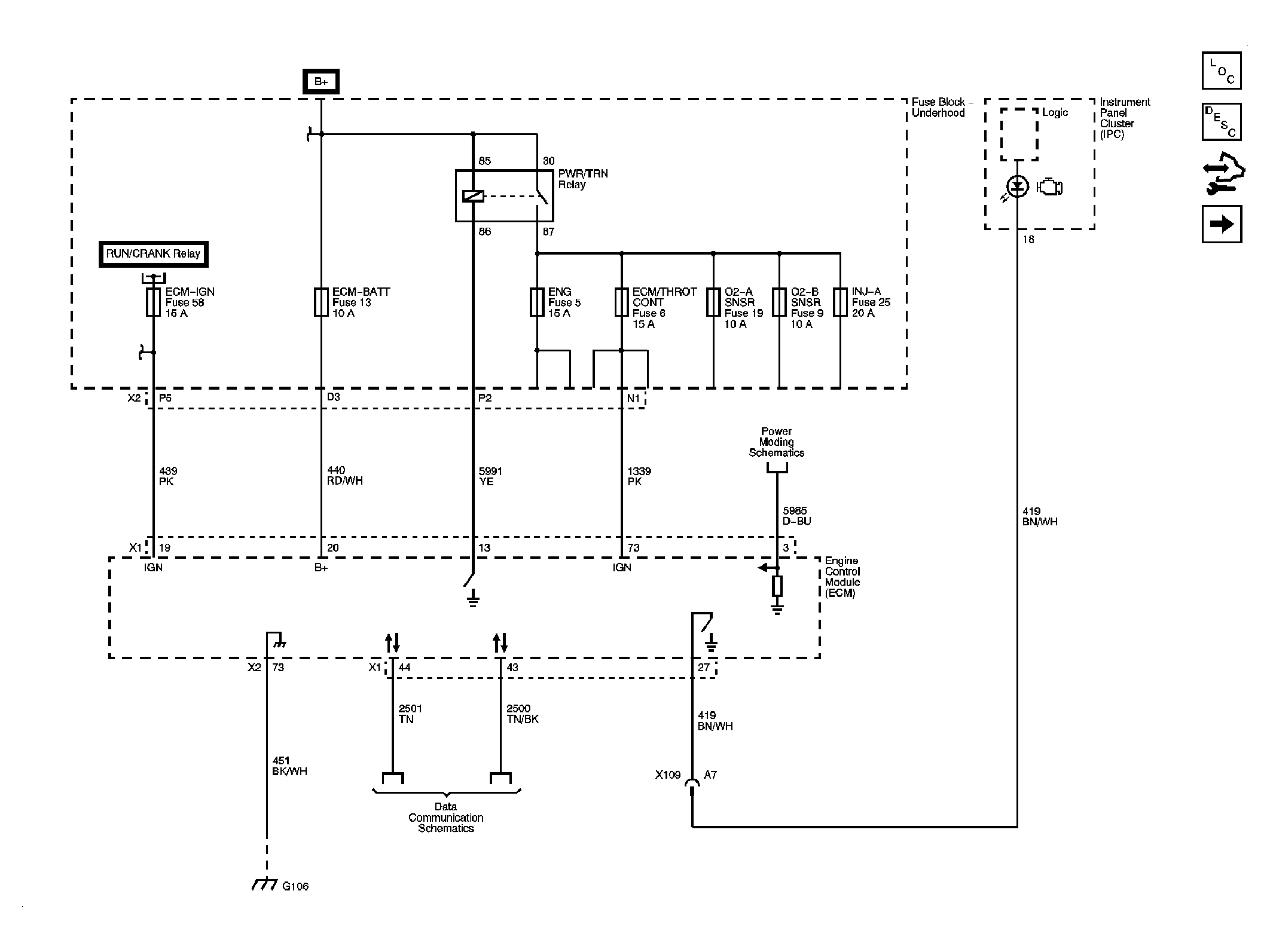

Fig 1: Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

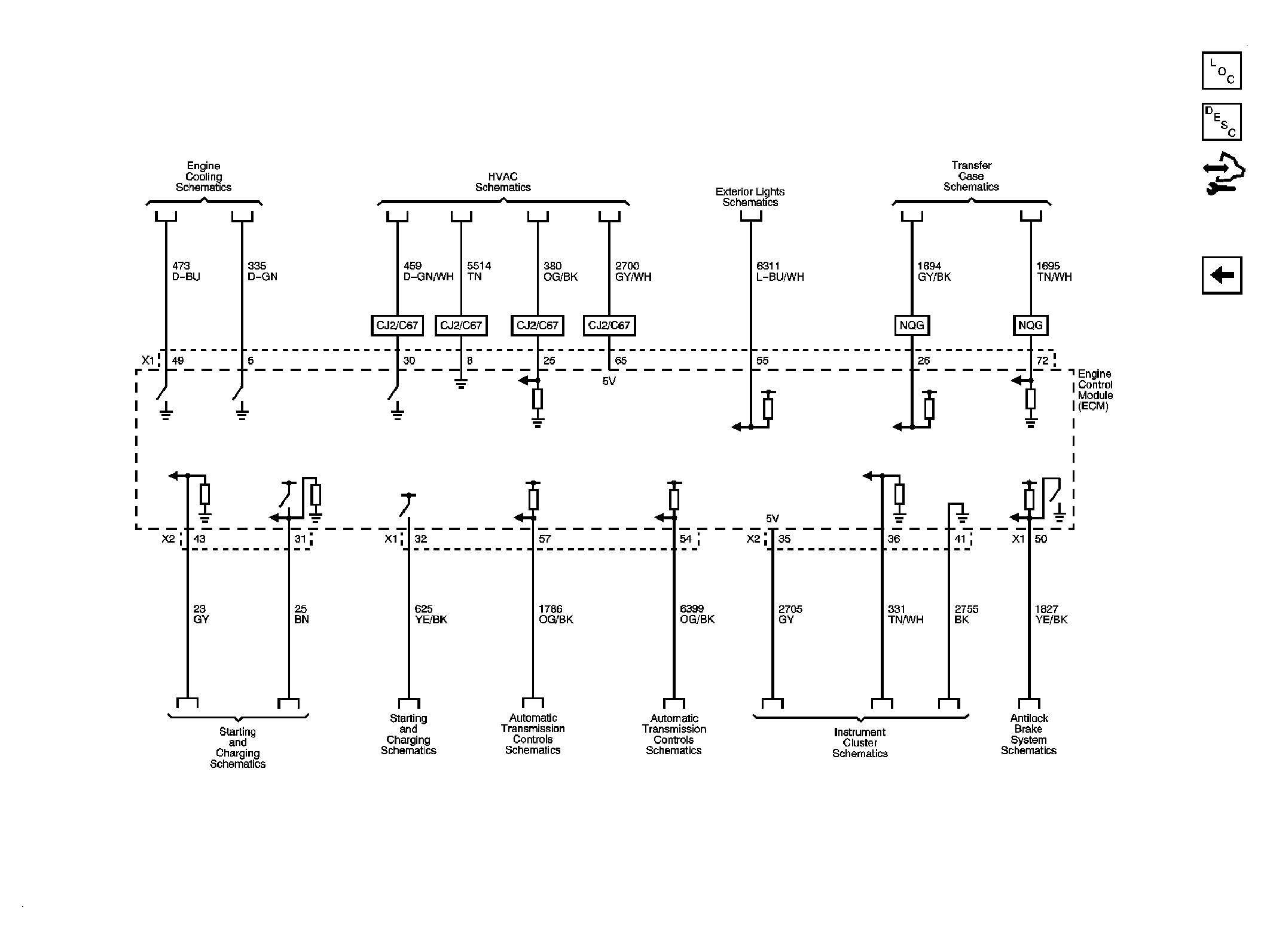

Fig 2: 5-Volt and Low Reference
Courtesy of GENERAL MOTORS CORP.

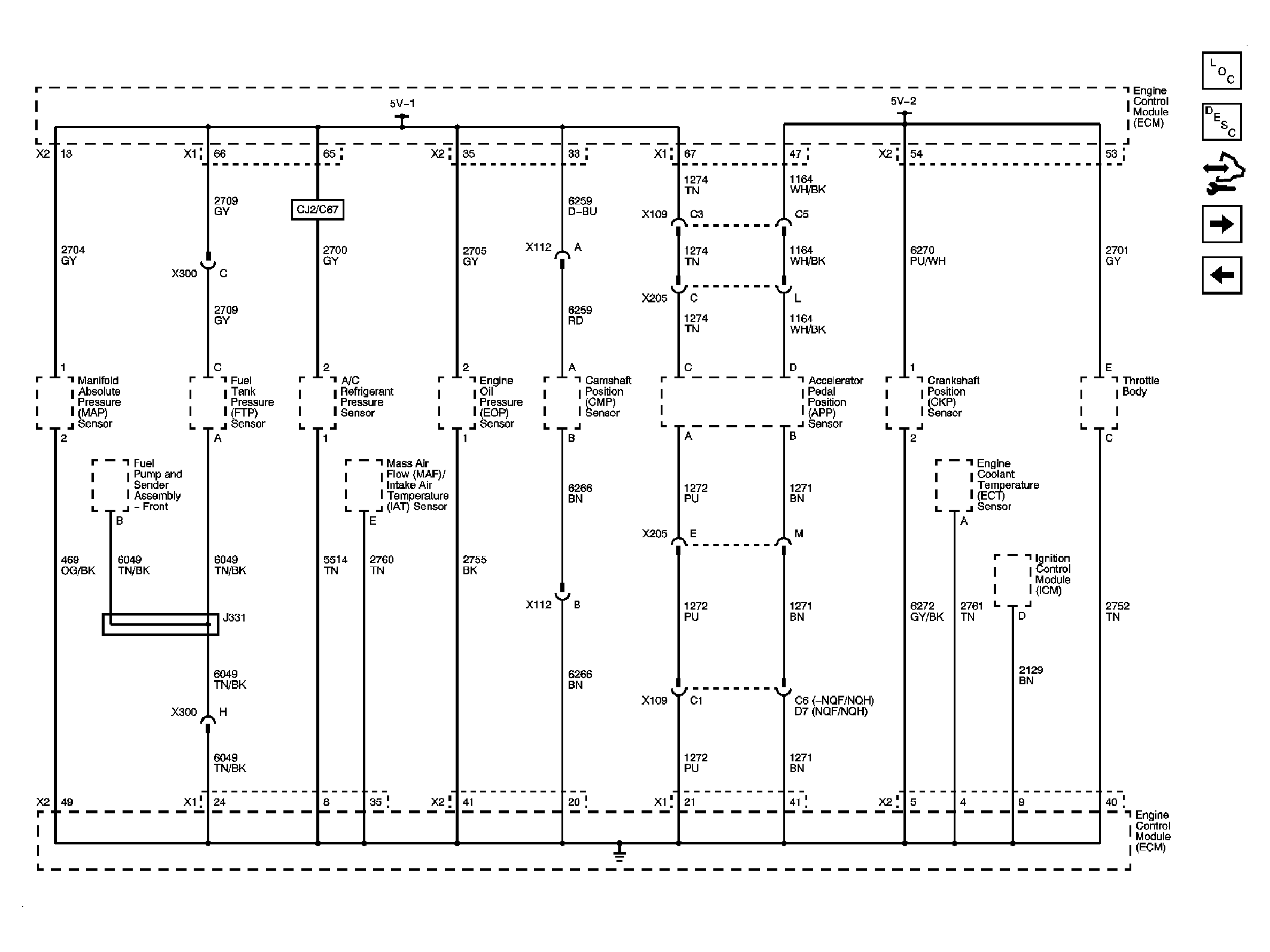

Fig 3: Engine Data Sensors - Pressure and Temperature
Courtesy of GENERAL MOTORS CORP.

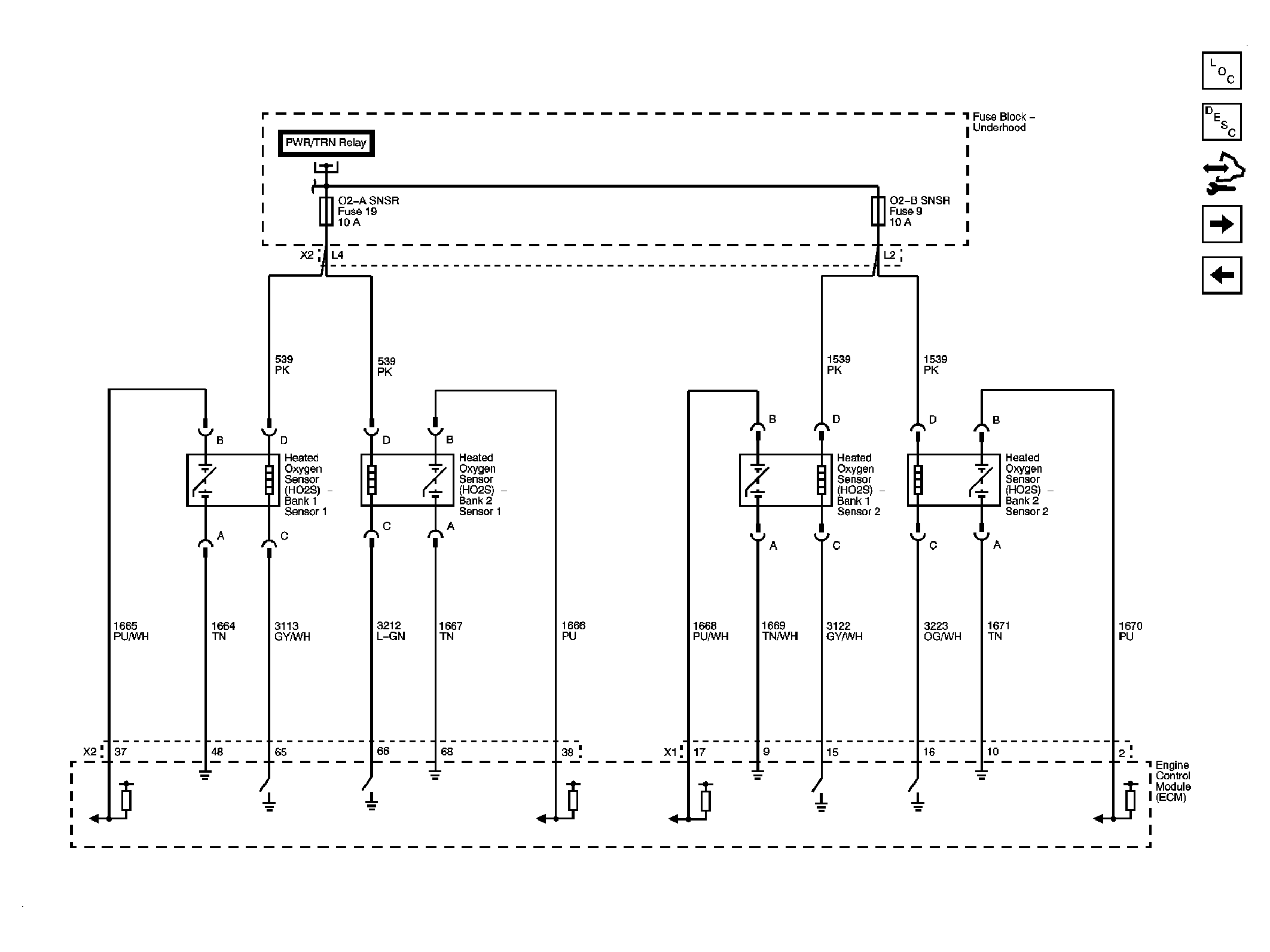

Fig 4: Engine Data Sensors - Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.

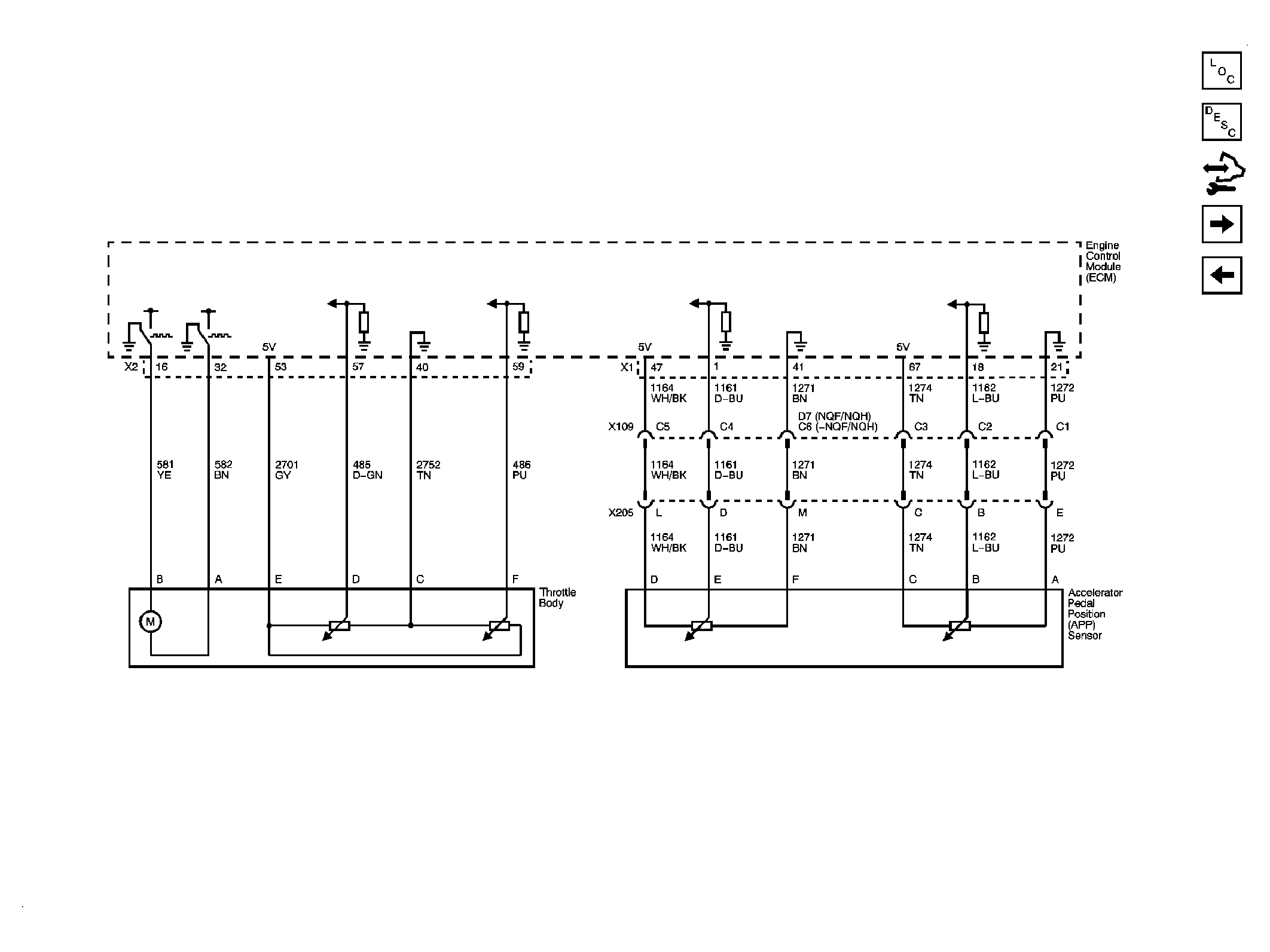

Fig 5: Engine Data Sensors - Throttle Controls
Courtesy of GENERAL MOTORS CORP.

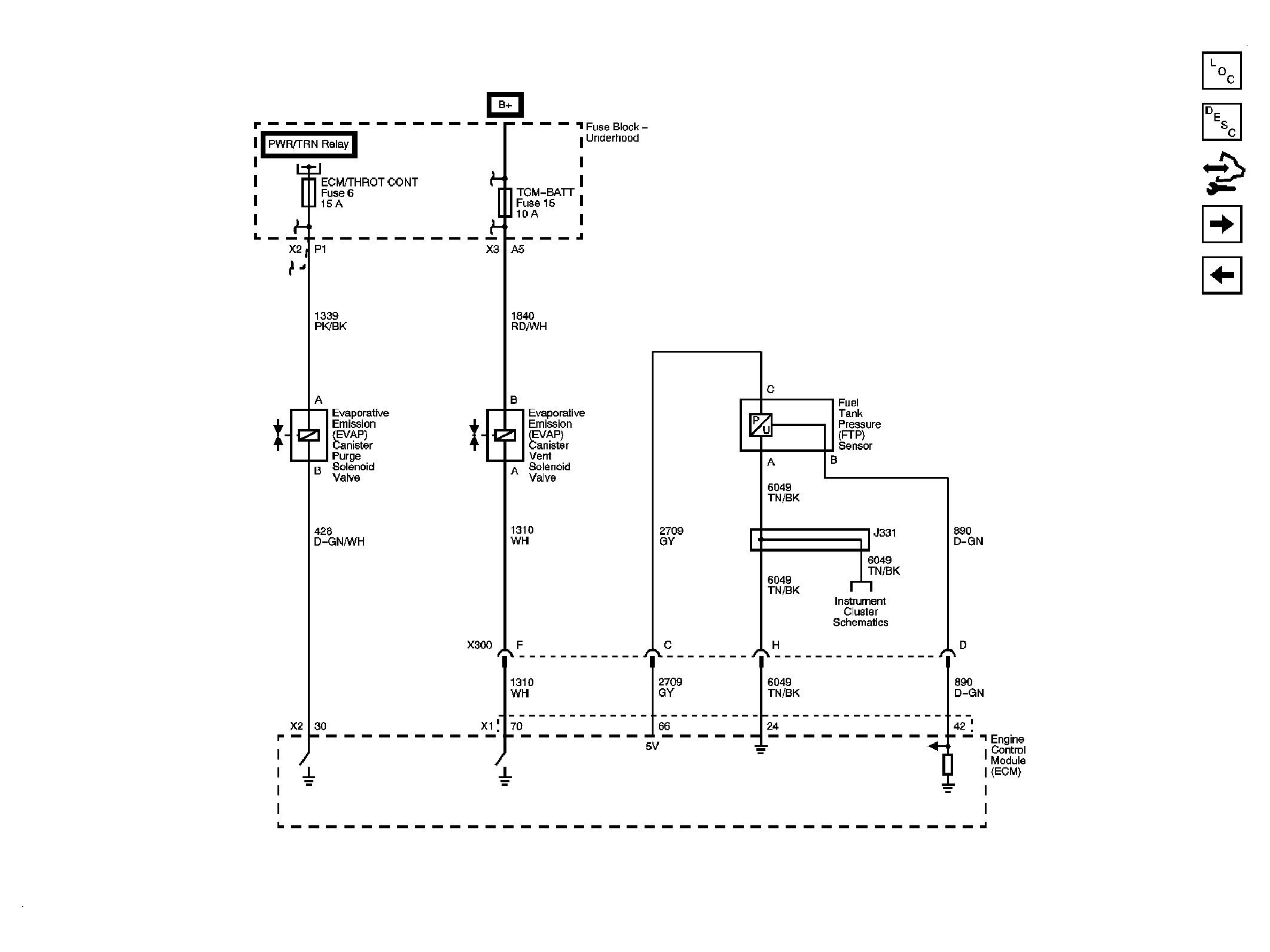

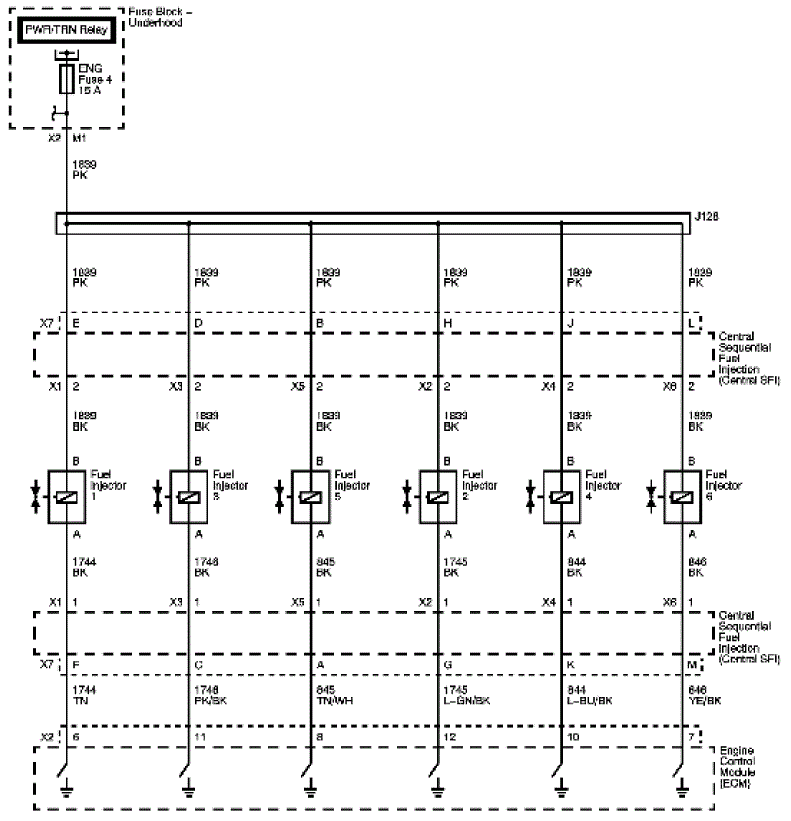

Fig 6: Ignition Controls - Ignition Control Module
