Driver Seat Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 6-Way Power (-AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Module Power, Ground, Serial Data and Memory Switch (AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Seat Adjuster Switches (AN3)

Courtesy of GENERAL MOTORS CORP.

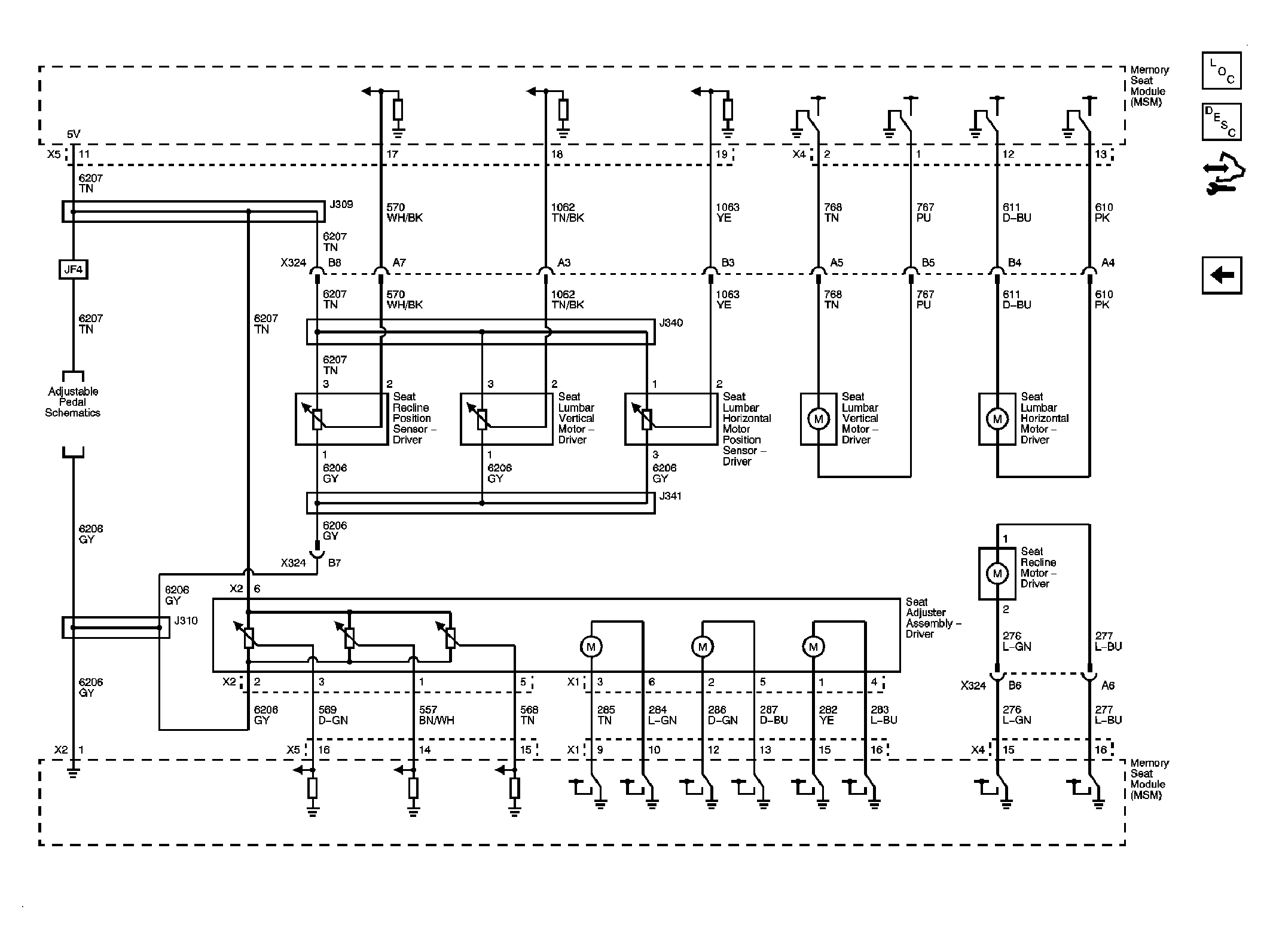

Fig 4: Motors and Position Sensors (AN3)

Courtesy of GENERAL MOTORS CORP.
