Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G100

GM1916289

Courtesy of GENERAL MOTORS CORP.

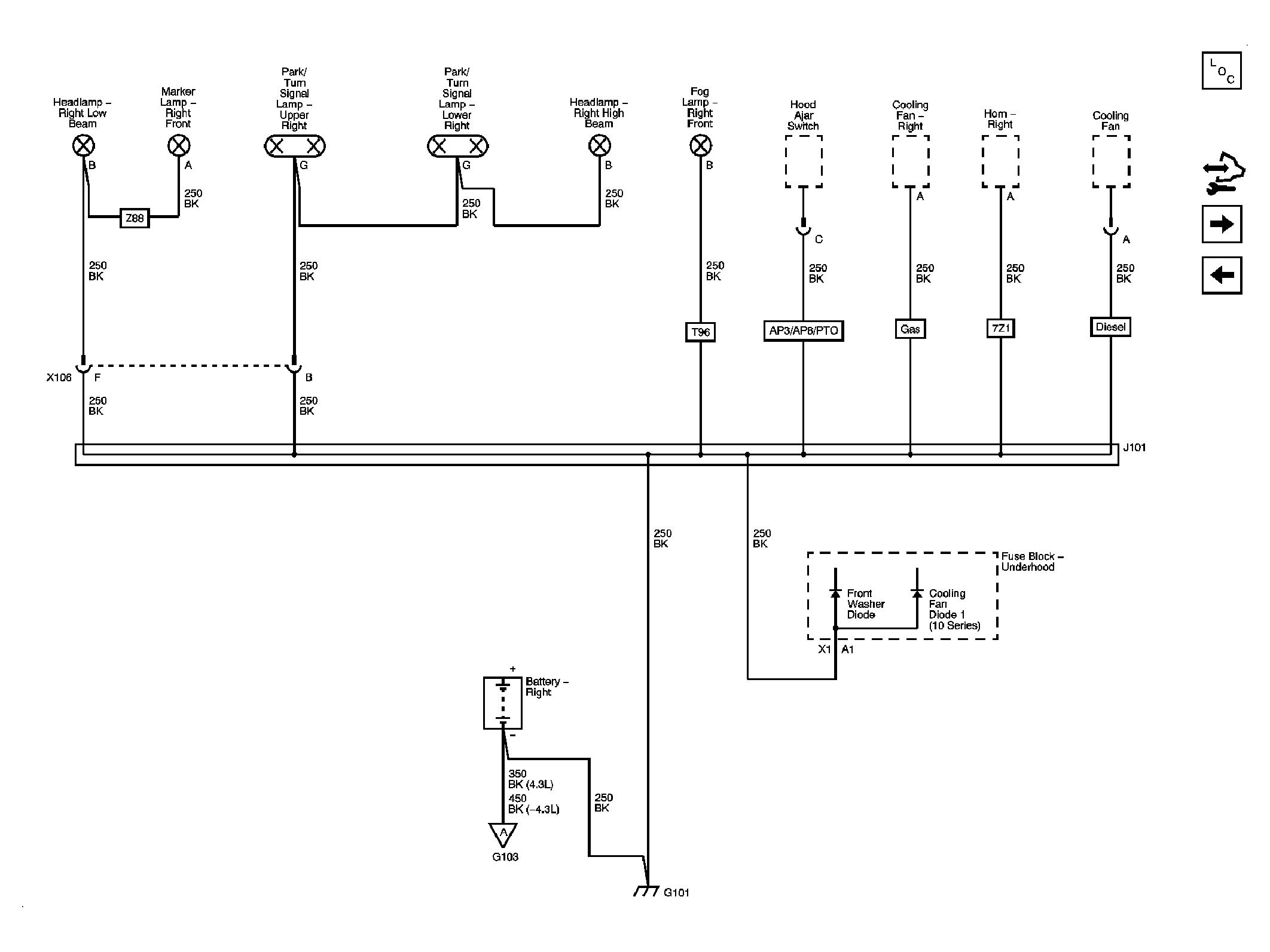

Fig 2: G101

GM1916298

Courtesy of GENERAL MOTORS CORP.

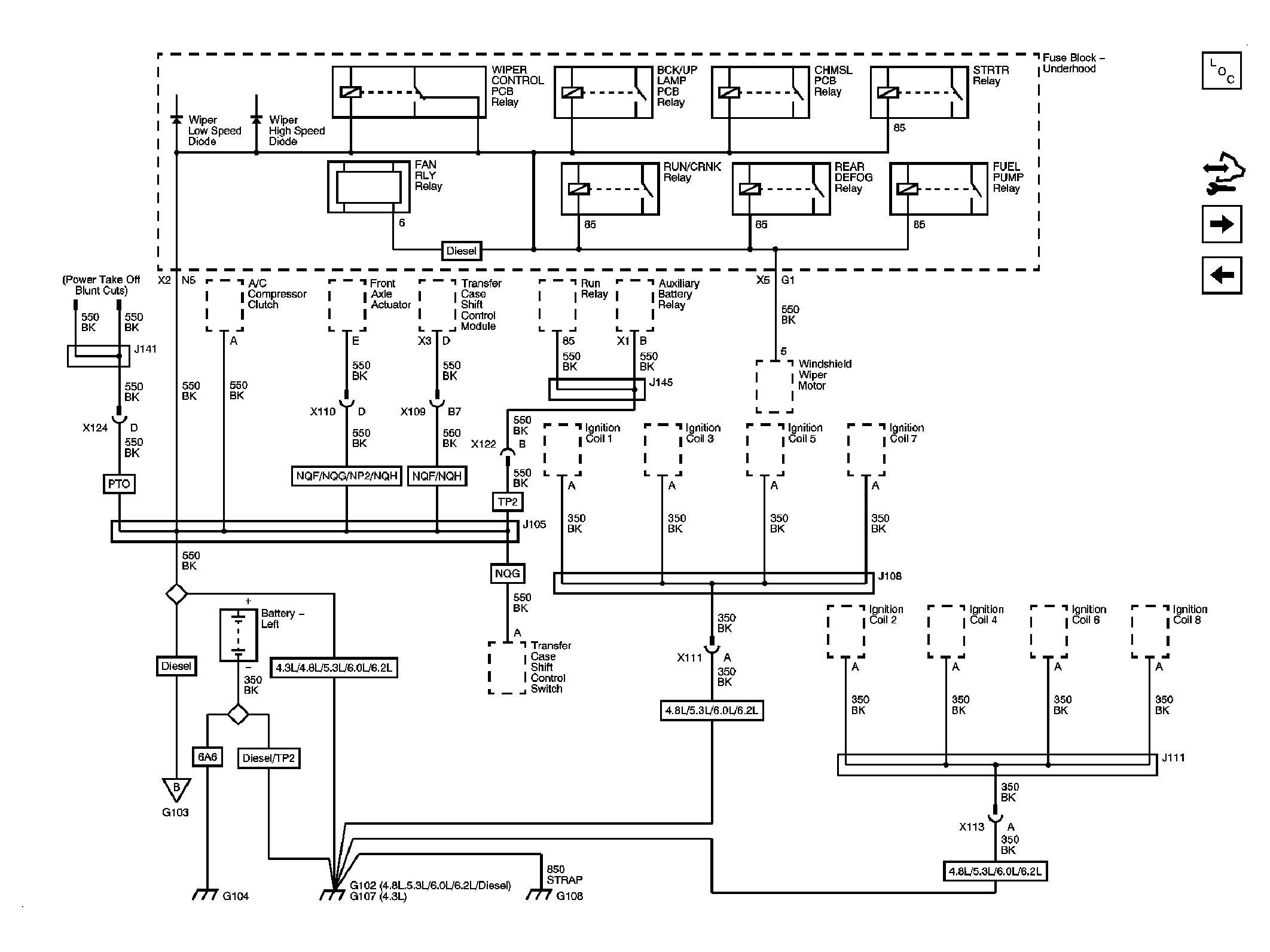

Fig 3: G102, G107 (4.3L), G104 and G108

GM1916300

Courtesy of GENERAL MOTORS CORP.

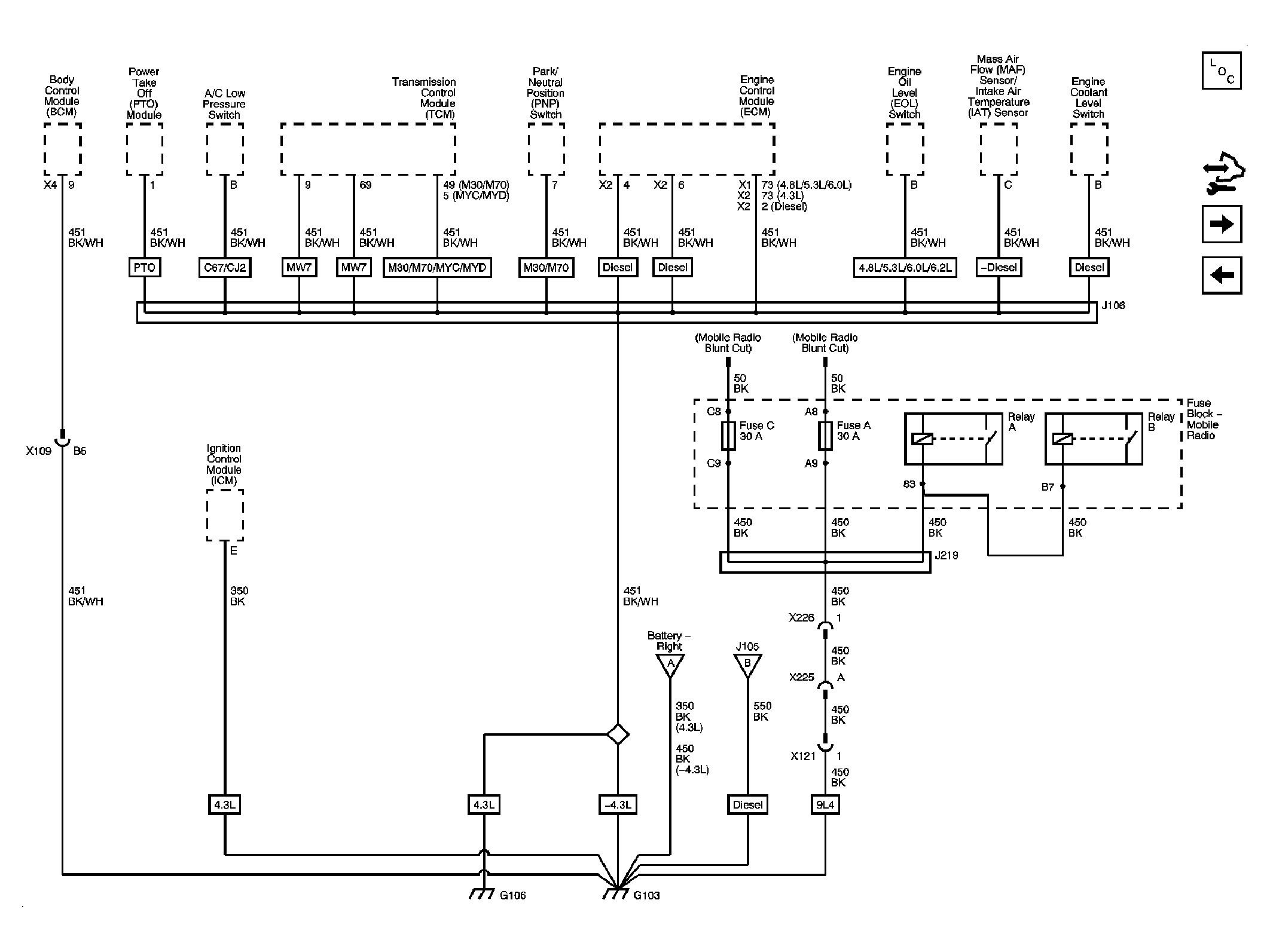

Fig 4: G106 (4.3L) and G103

GM1916328

Courtesy of GENERAL MOTORS CORP.

Fig 5: G106 (Diesel), G105, G110 and G111

GM1916358

Courtesy of GENERAL MOTORS CORP.

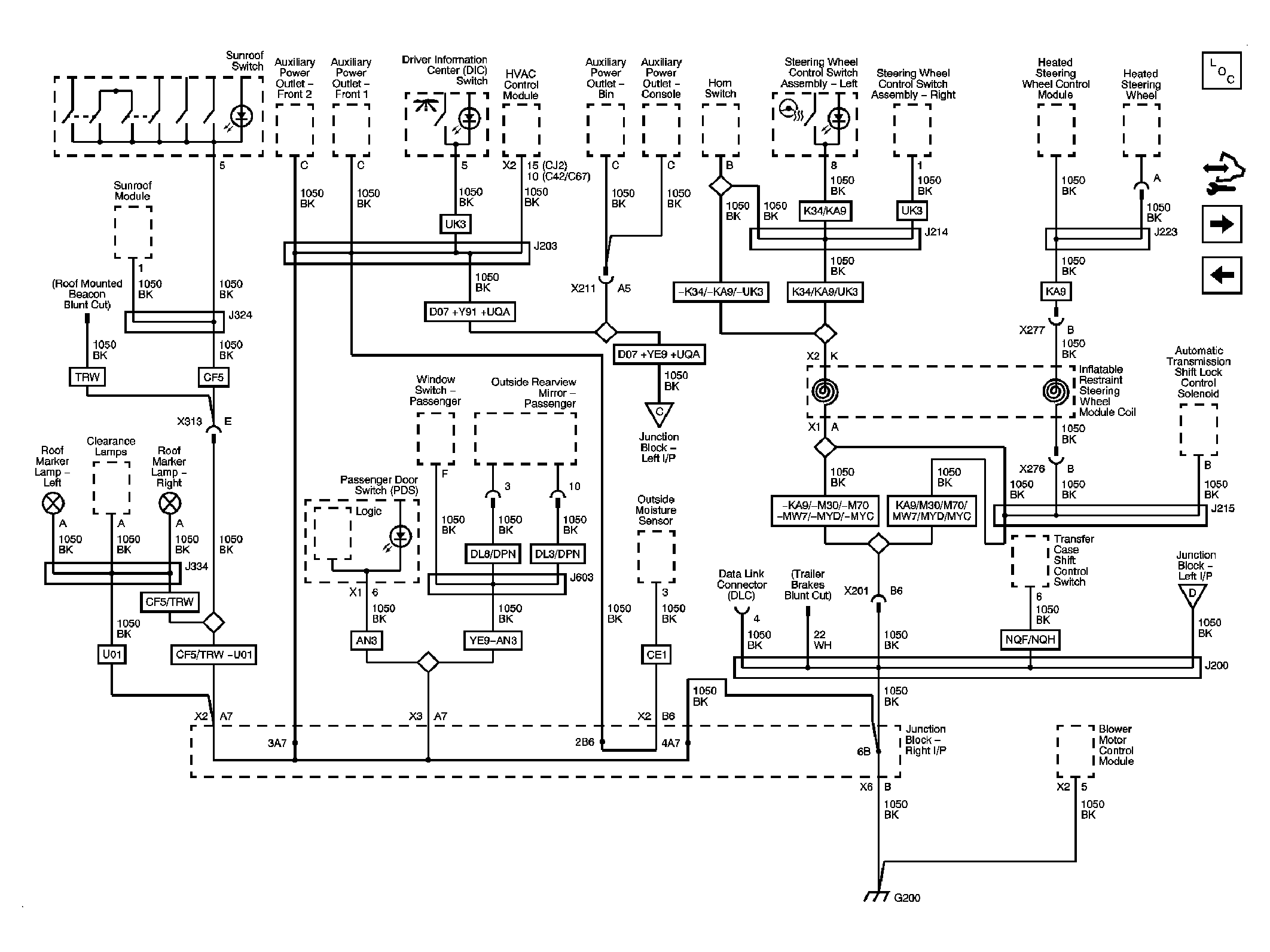

Fig 6: G200 1 of 2

GM1916382

Courtesy of GENERAL MOTORS CORP.

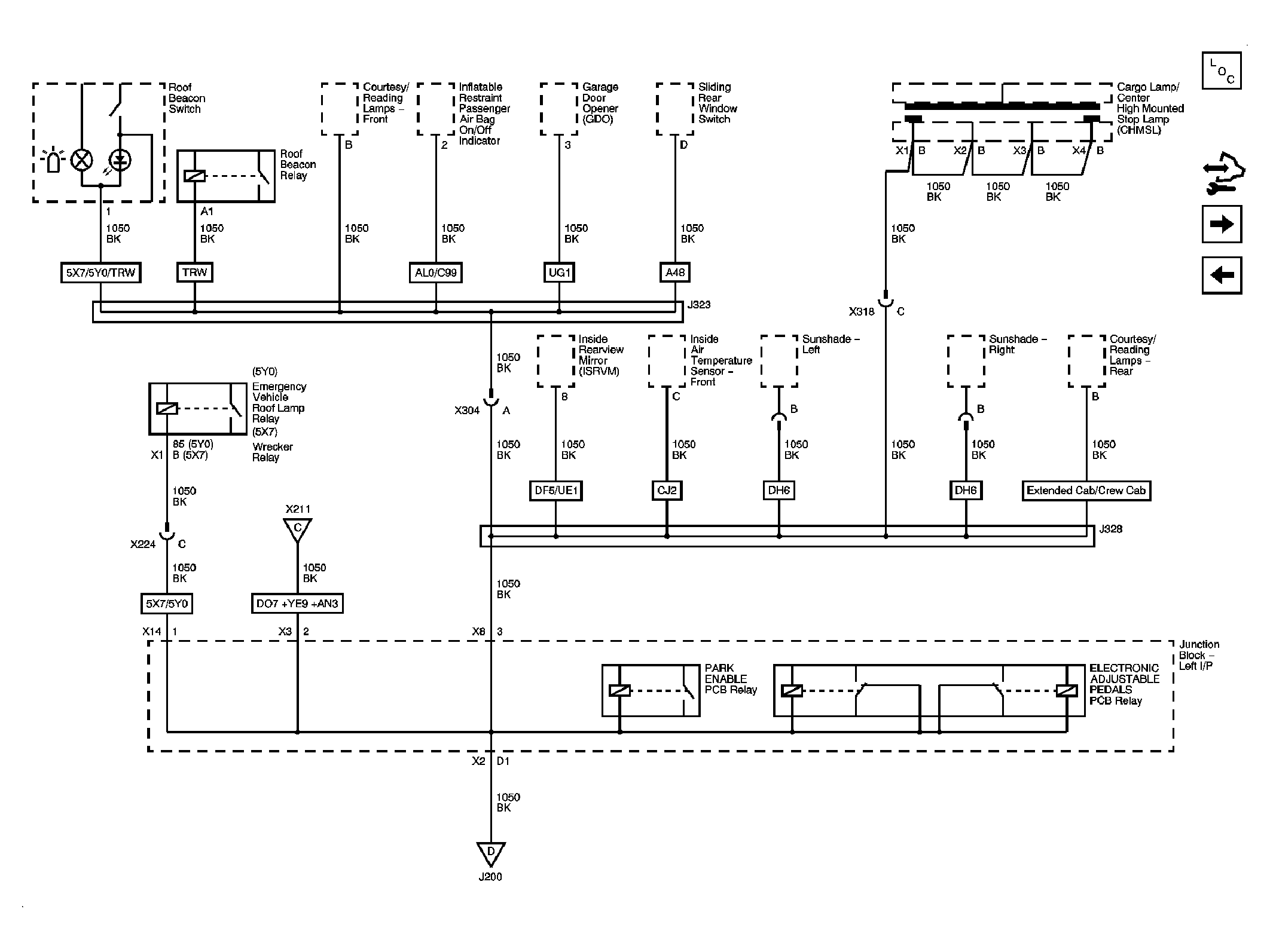

Fig 7: G200 2 of 2

GM1916385

Courtesy of GENERAL MOTORS CORP.

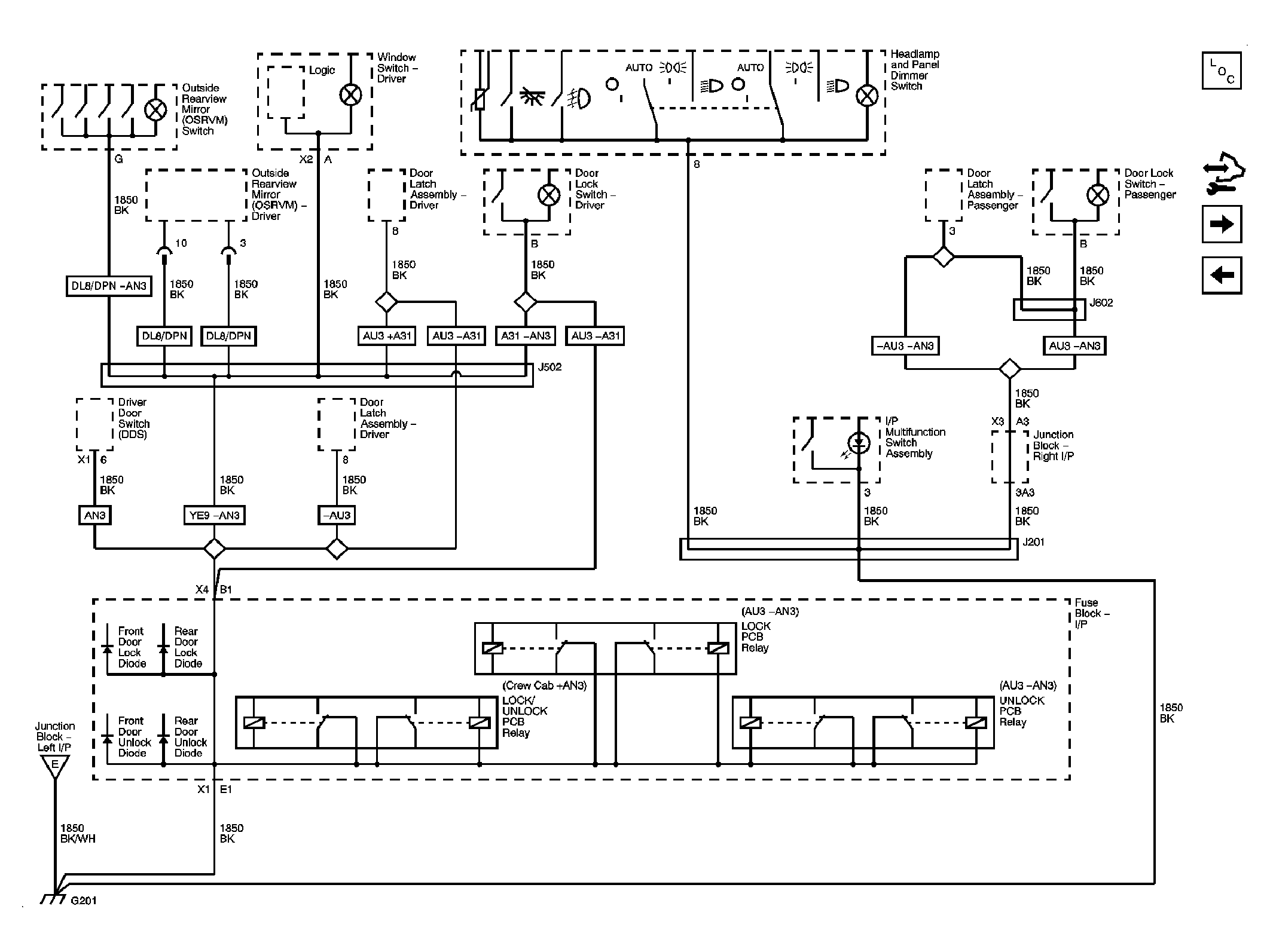

Fig 8: G201 1 of 2

GM1916404

Courtesy of GENERAL MOTORS CORP.

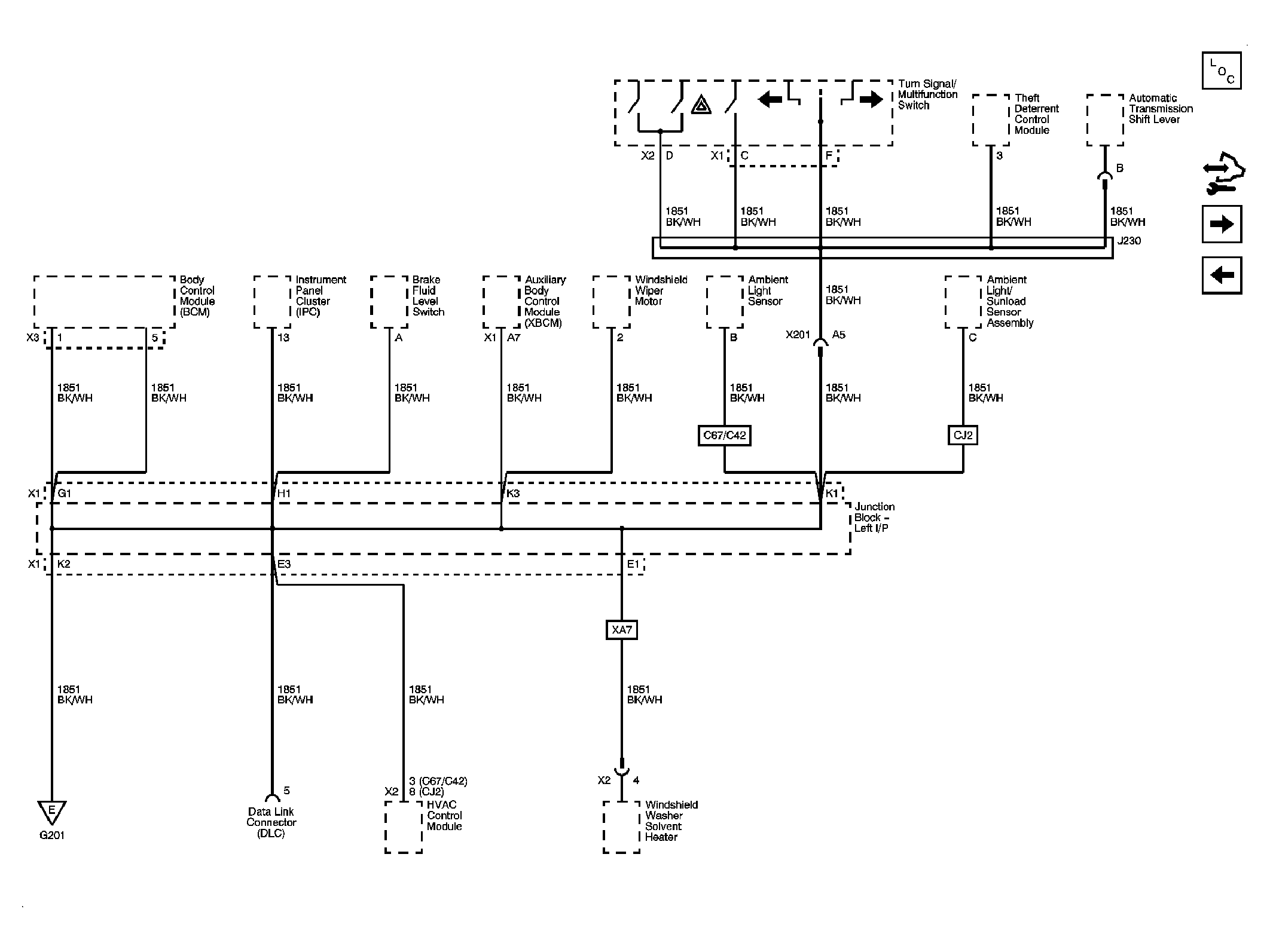

Fig 9: G201 2 of 2

GM1916417

Courtesy of GENERAL MOTORS CORP.

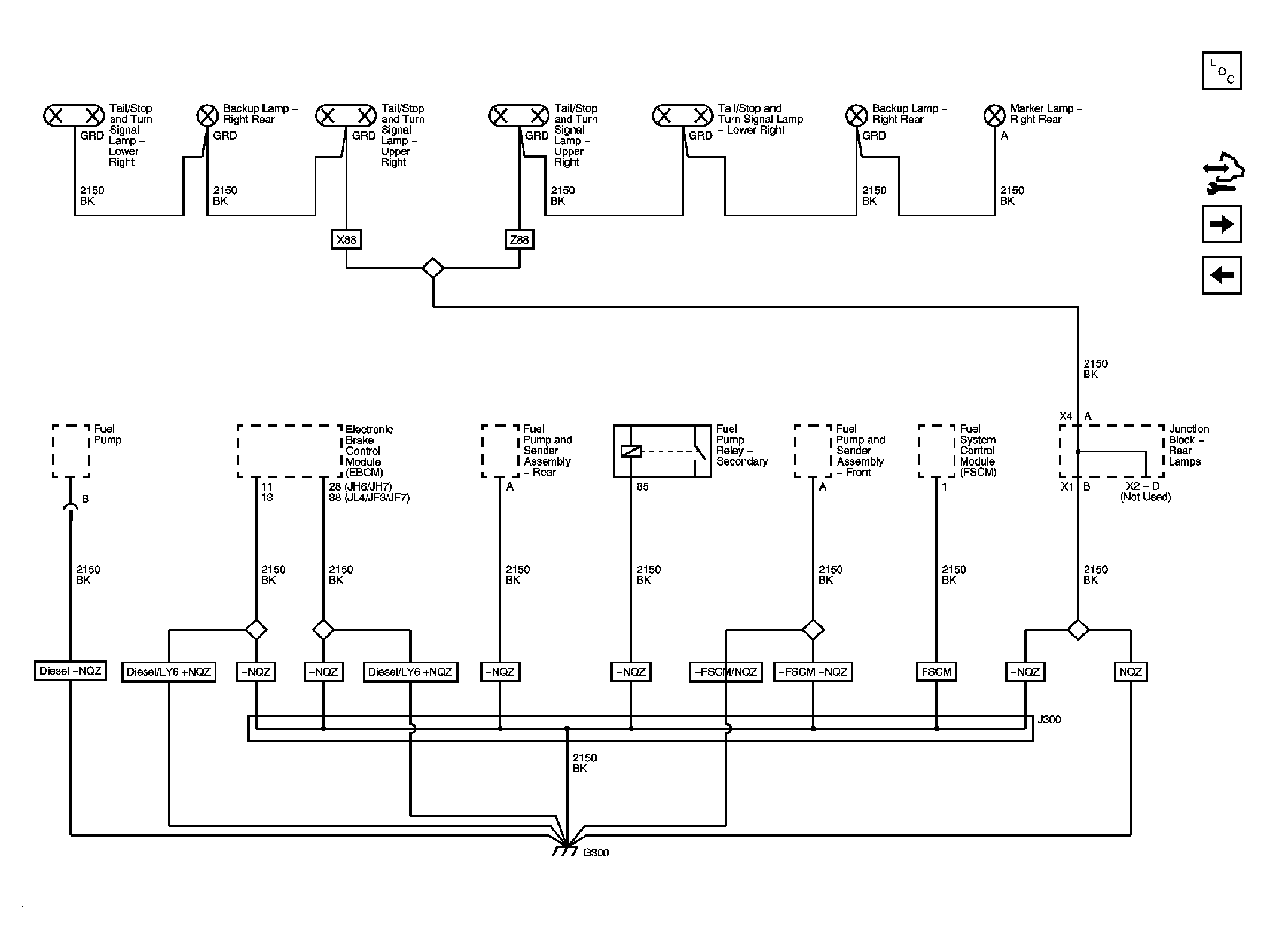

Fig 10: G300

GM1916419

Courtesy of GENERAL MOTORS CORP.

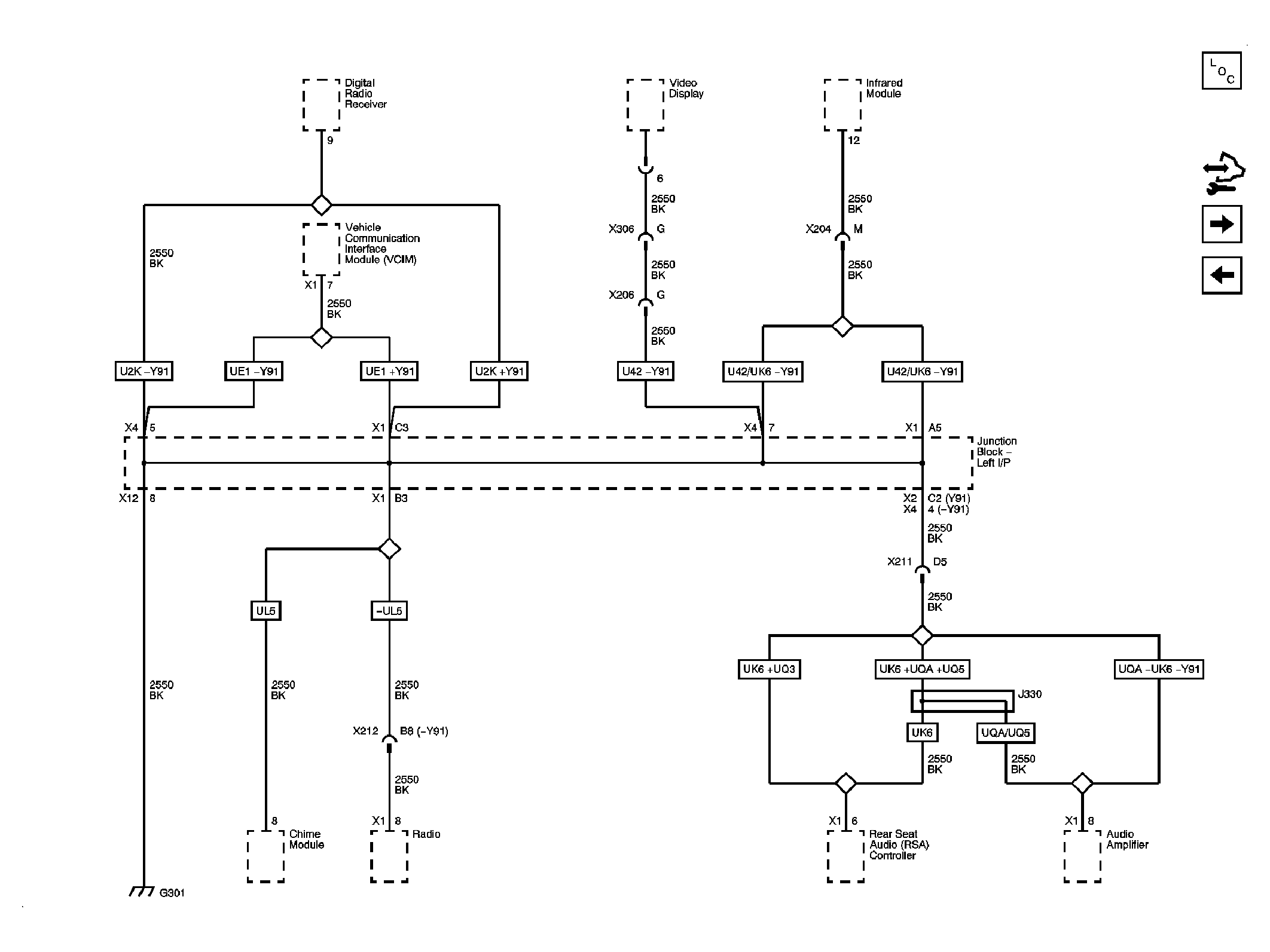

Fig 11: G301

GM1916421

Courtesy of GENERAL MOTORS CORP.

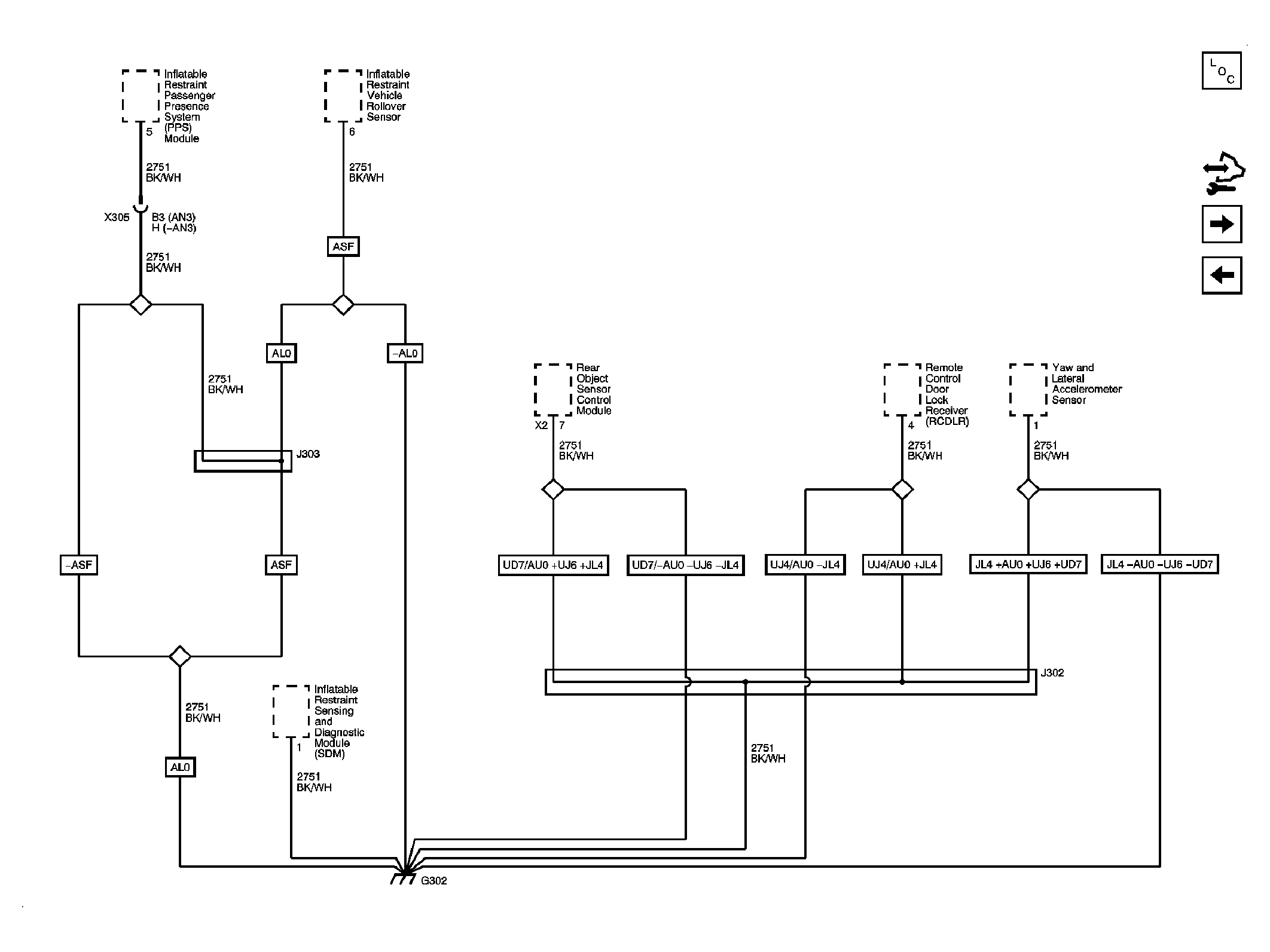

Fig 12: G302

GM1916426

Courtesy of GENERAL MOTORS CORP.

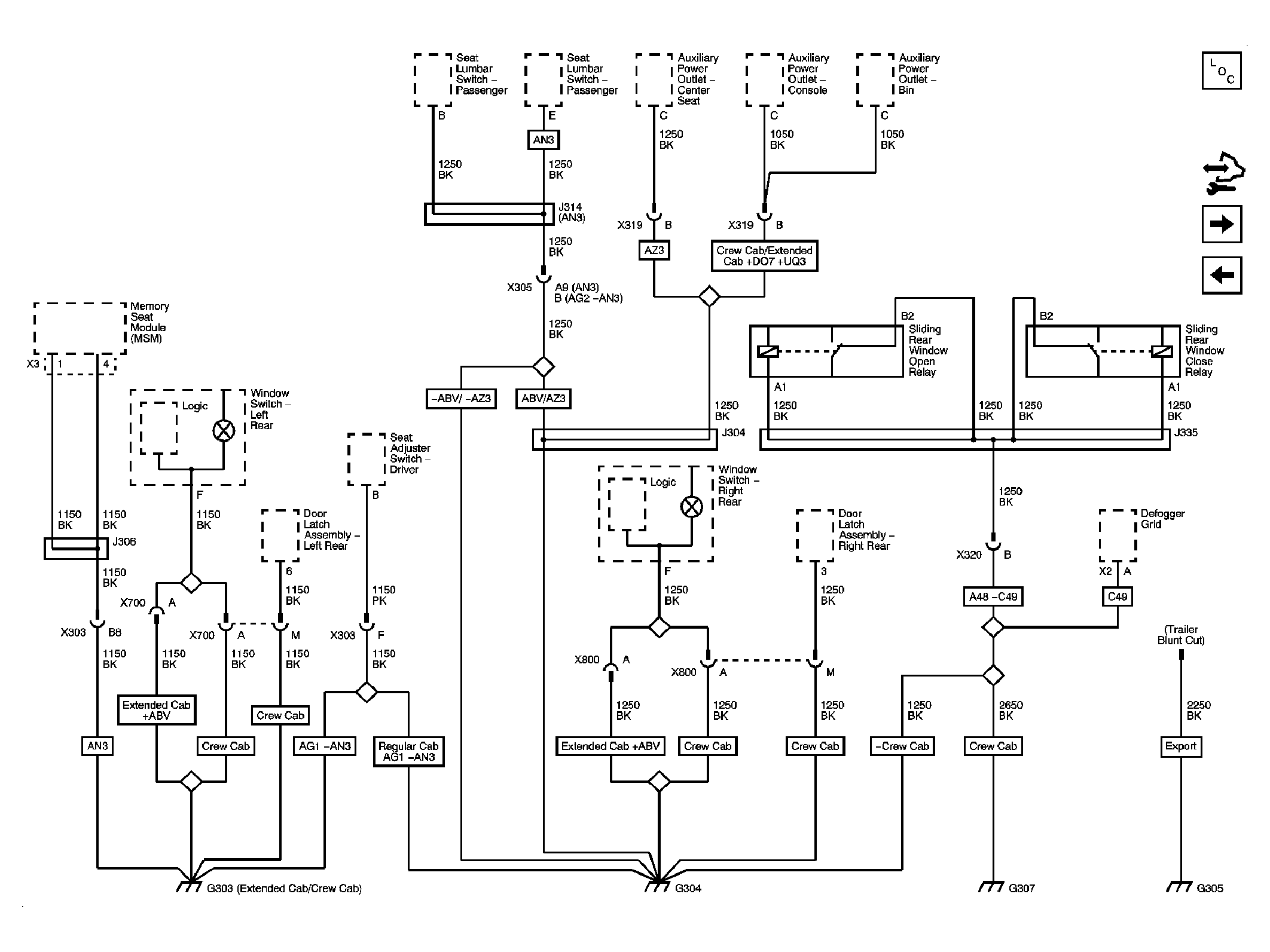

Fig 13: G303, G304, G305 and G307

GM1916429

Courtesy of GENERAL MOTORS CORP.

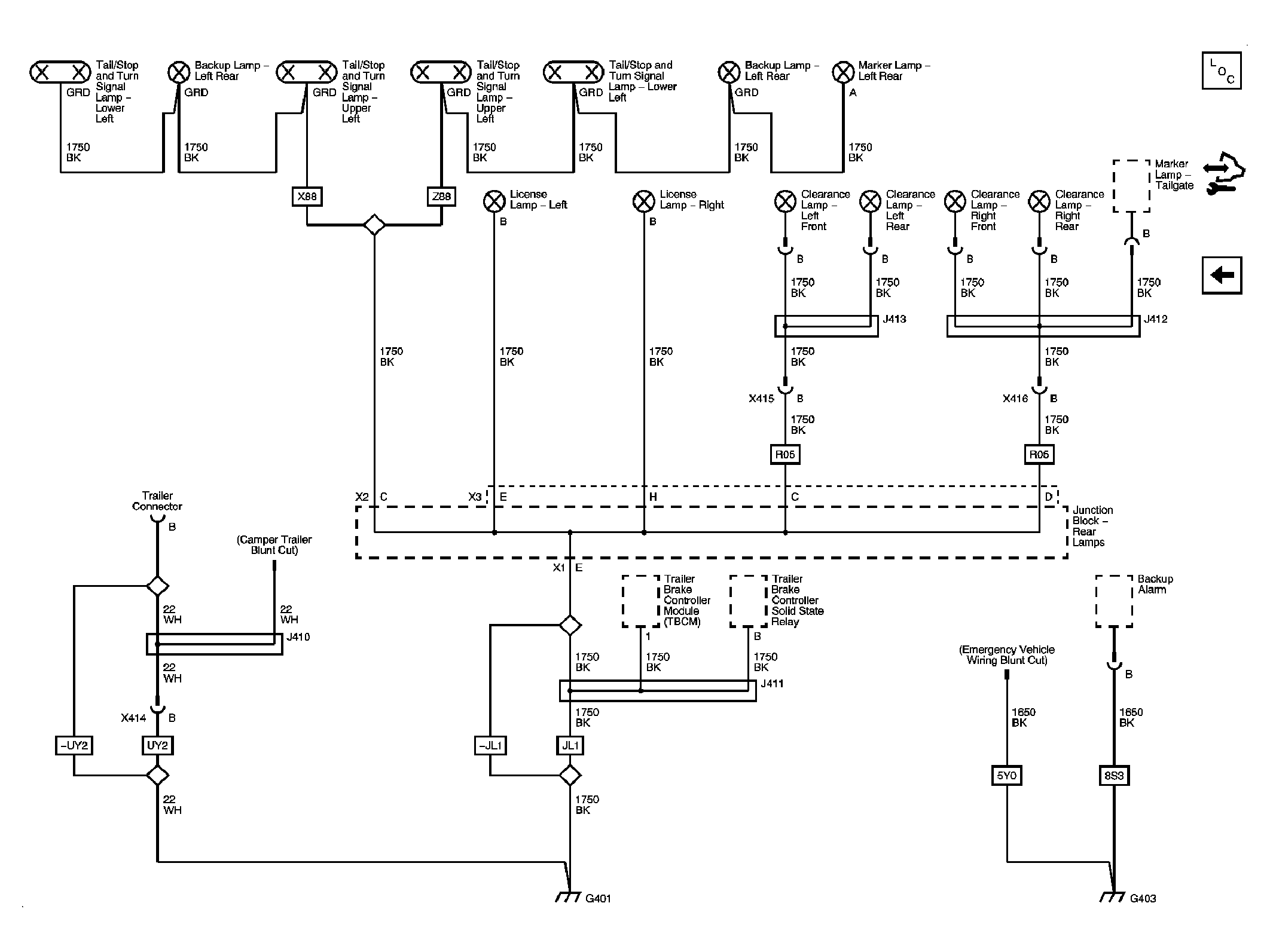

Fig 14: G401 and G403

GM1916432

Courtesy of GENERAL MOTORS CORP.
