HVAC Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

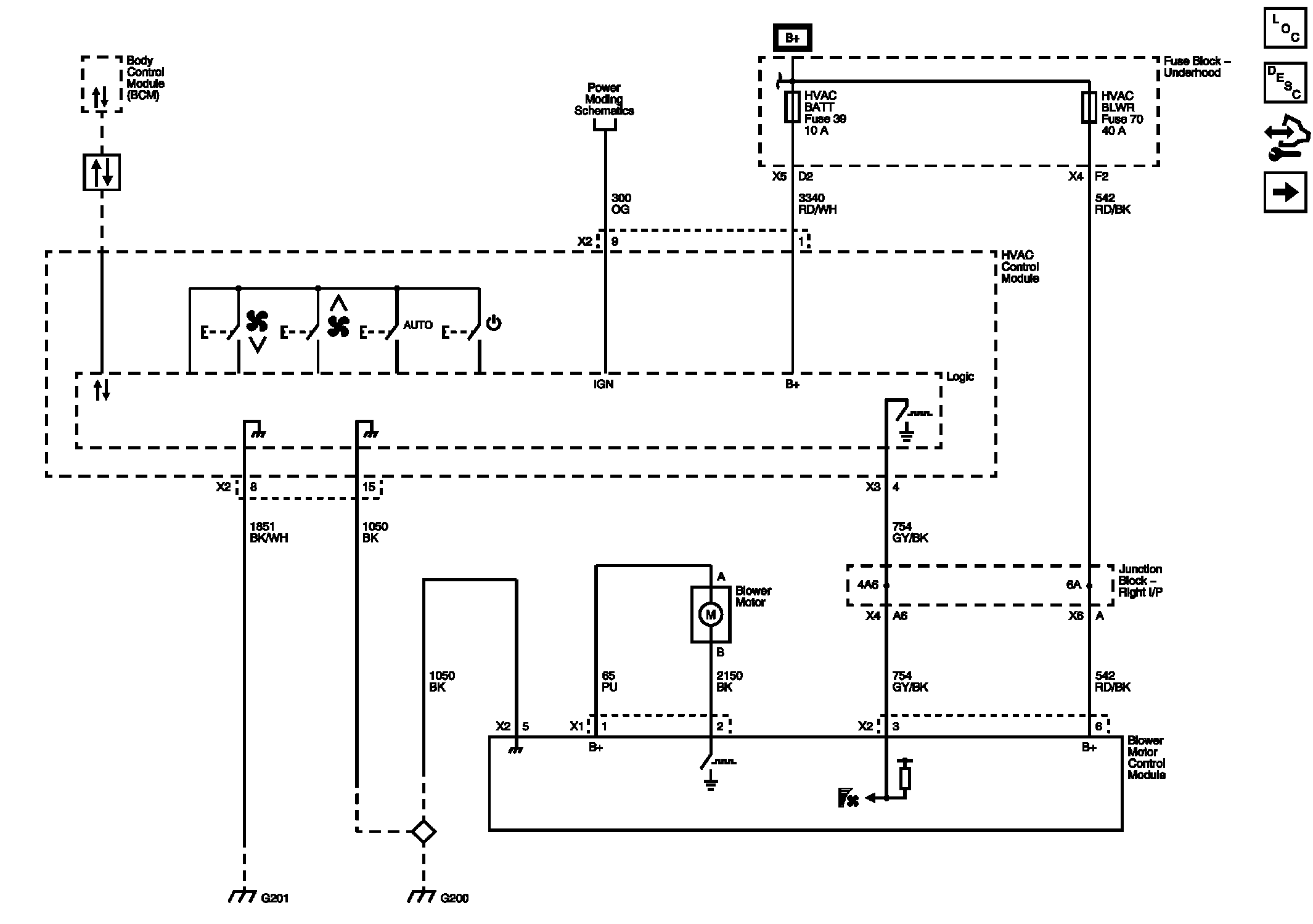

Fig 1: Module Power, Ground, Serial Data and Blower Controls

Courtesy of GENERAL MOTORS CORP.

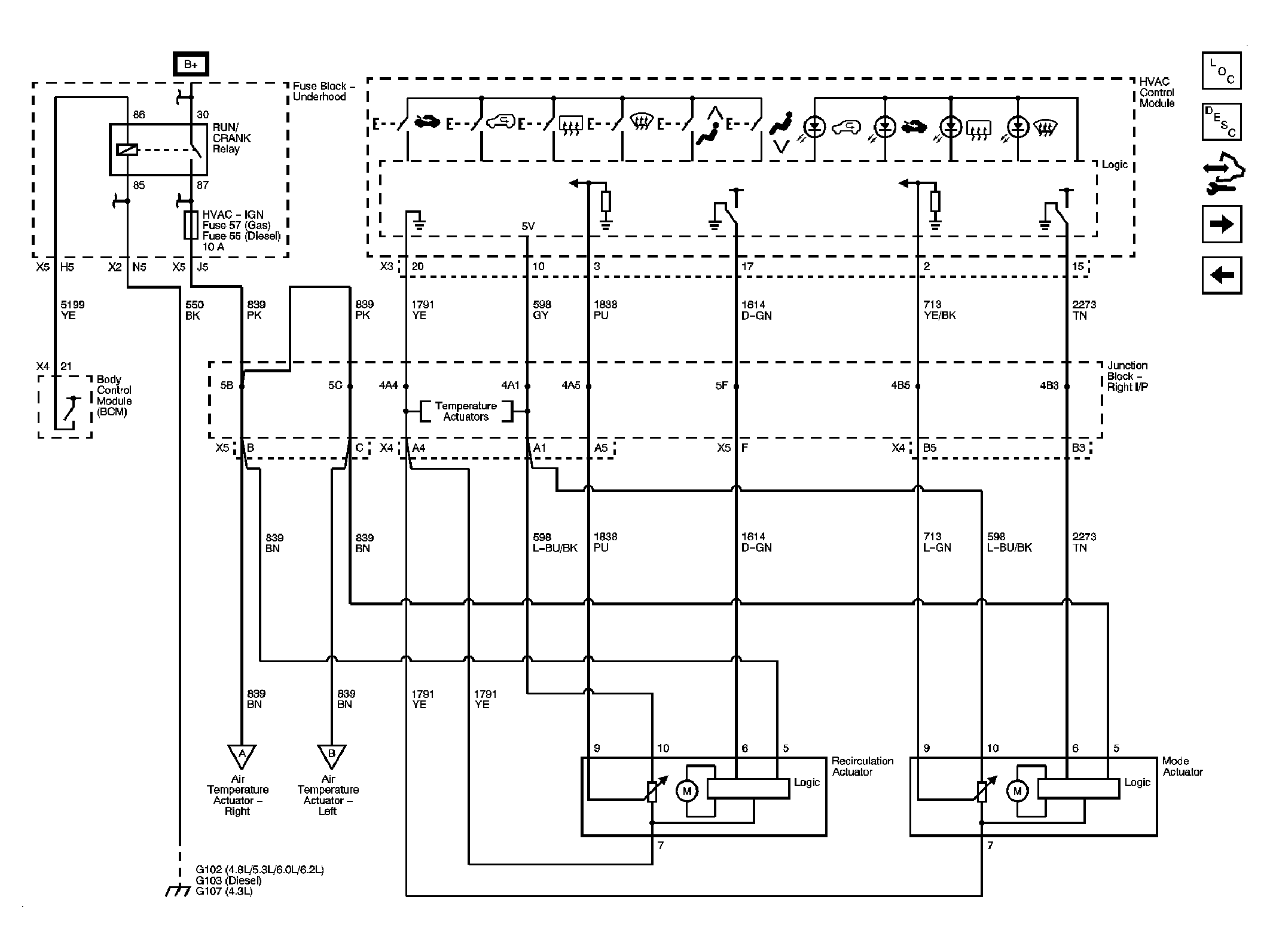

Fig 2: Mode Controls

Courtesy of GENERAL MOTORS CORP.

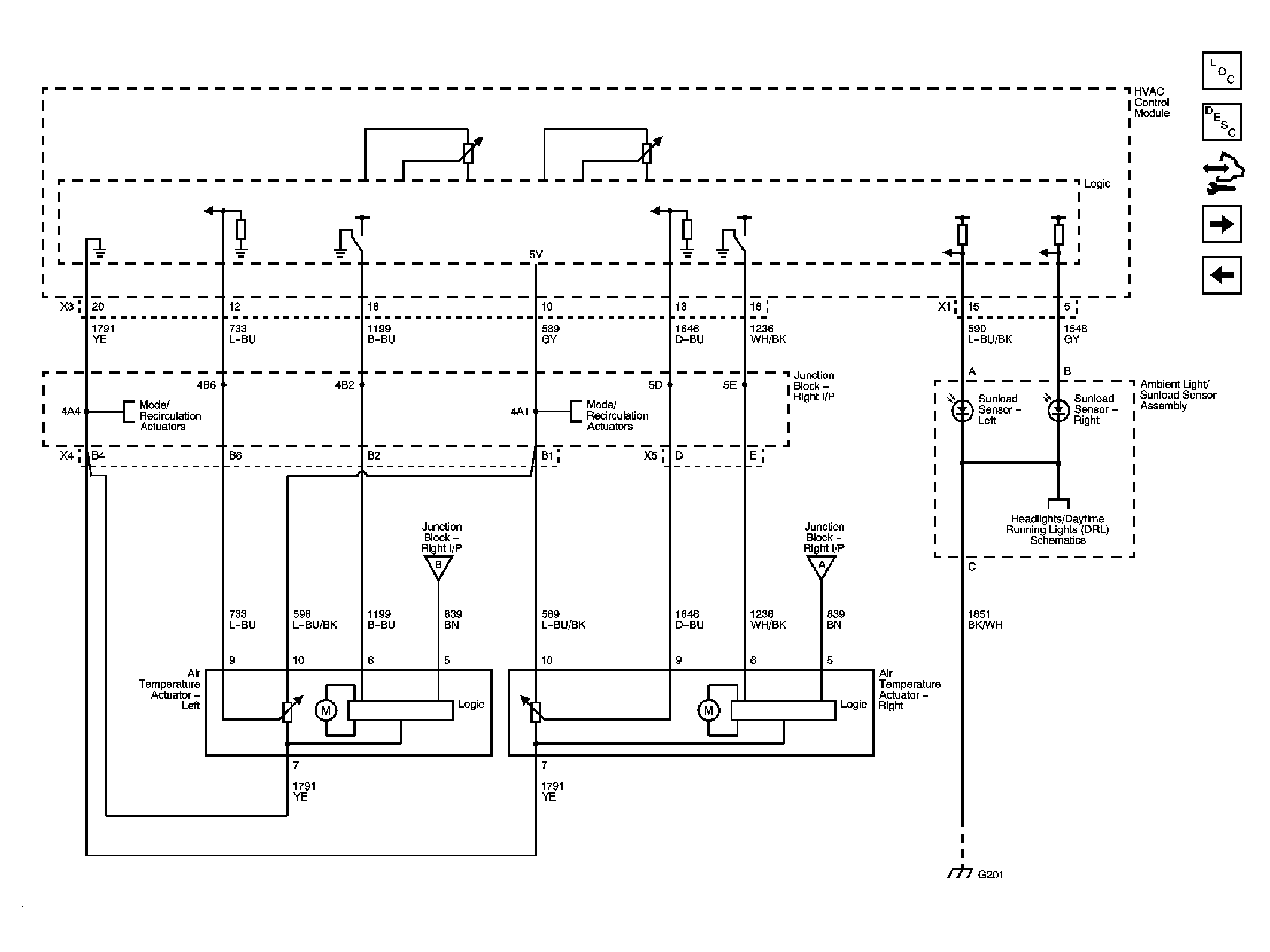

Fig 3: Temperature Controls

Courtesy of GENERAL MOTORS CORP.

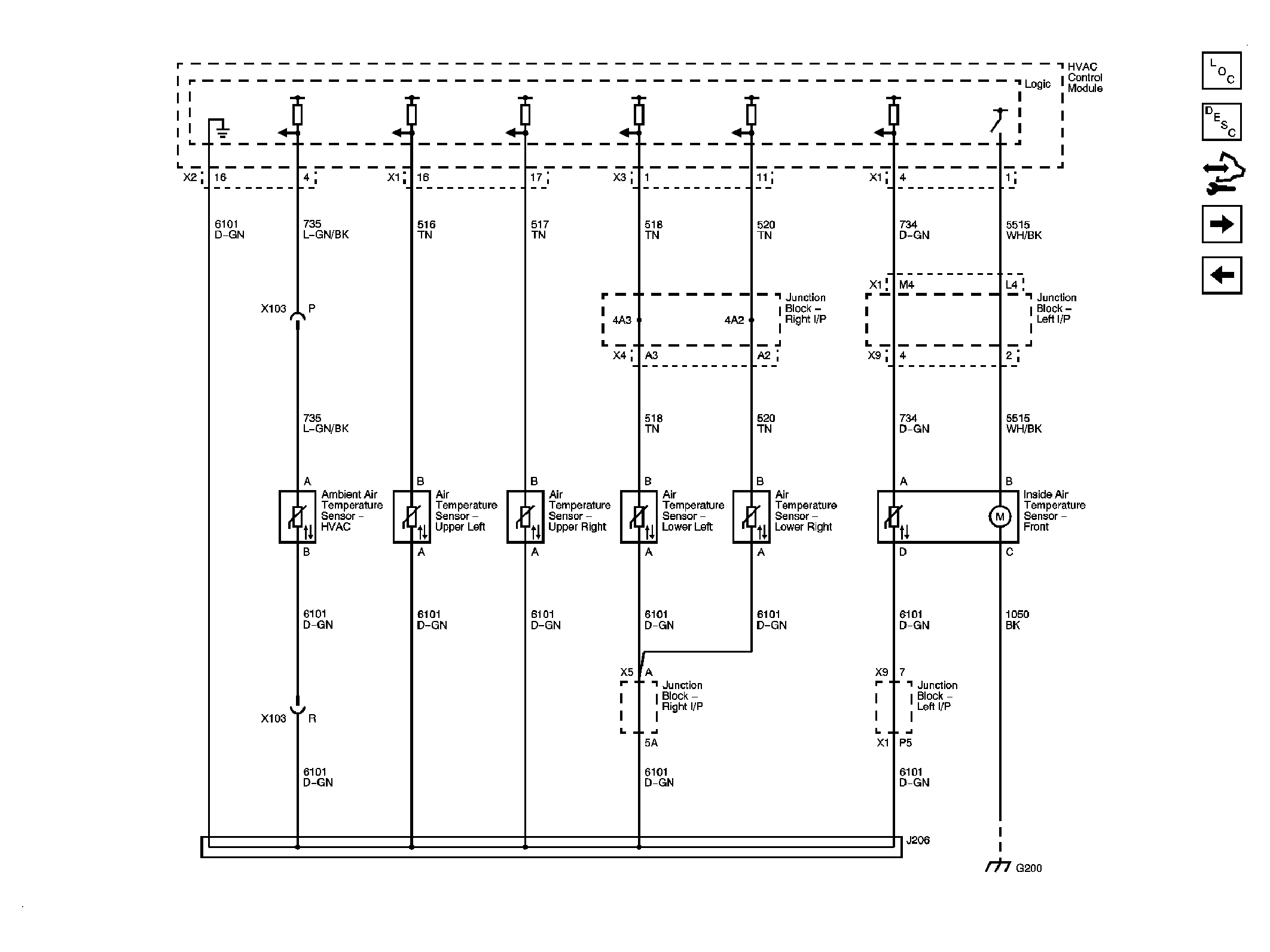

Fig 4: Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

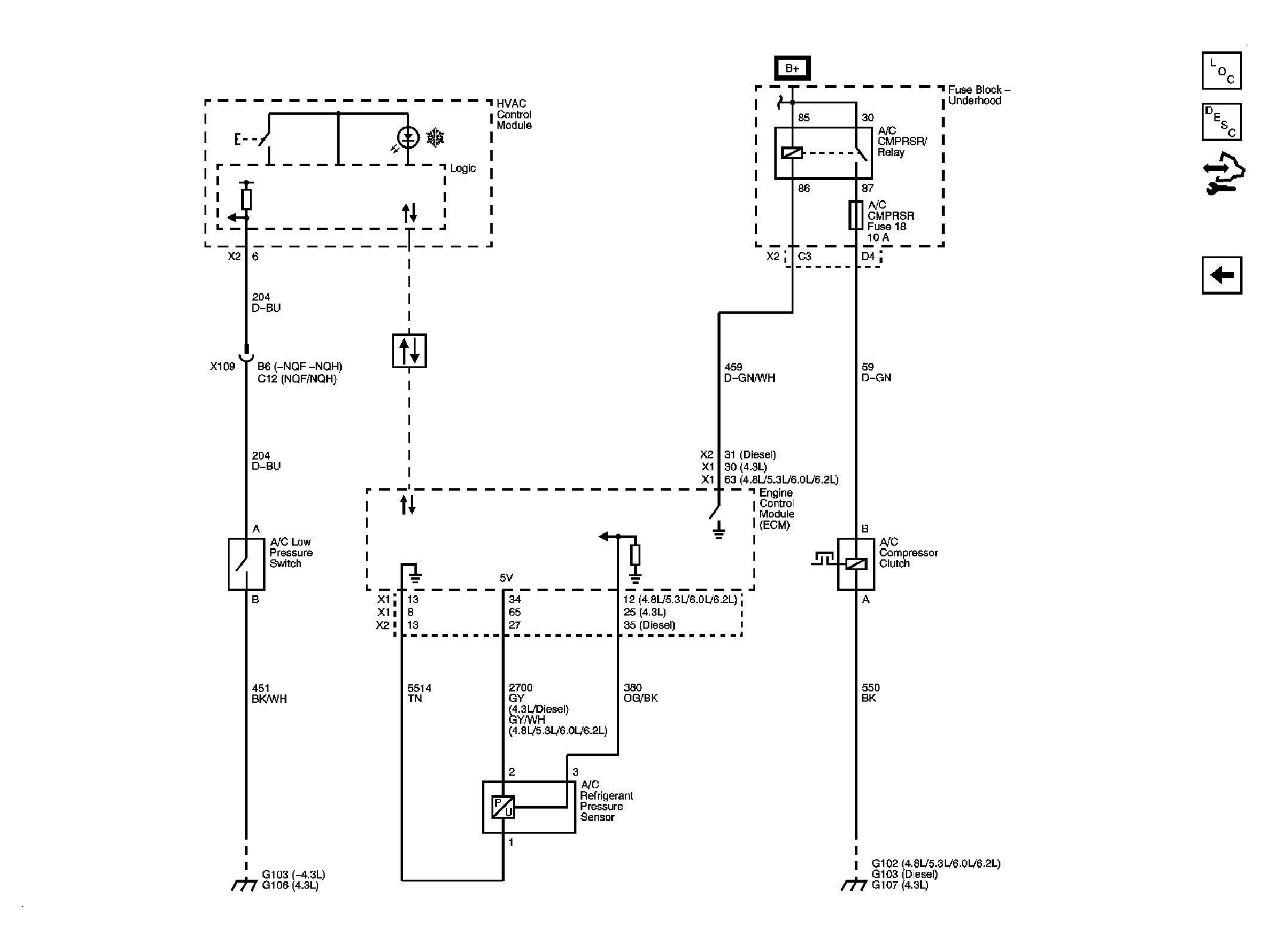

Fig 5: A/C Compressor Controls

Courtesy of GENERAL MOTORS CORP.
