SIR Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

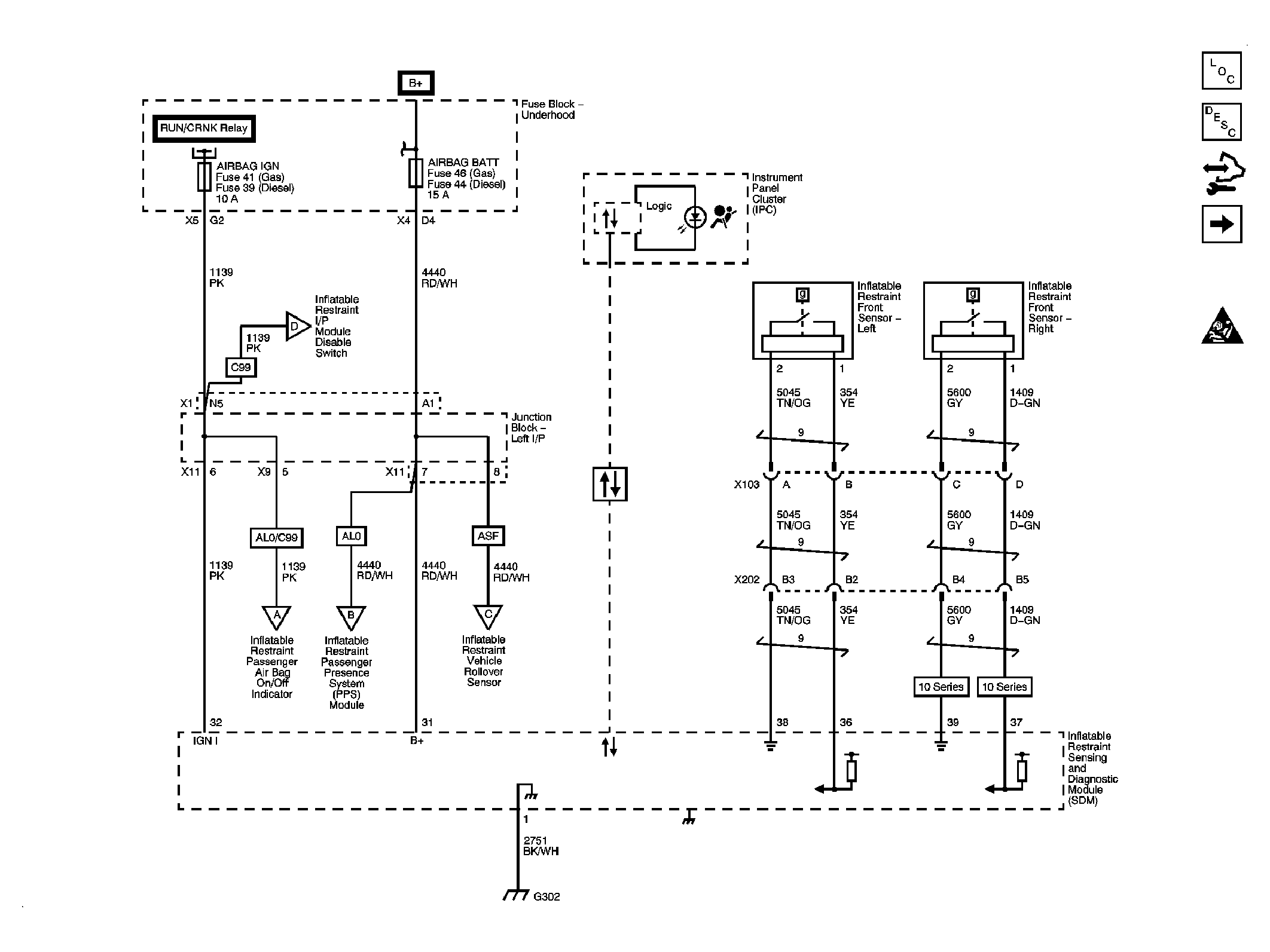

Fig 1: Module Power, Ground, Serial Data and Front Sensors

Courtesy of GENERAL MOTORS CORP.

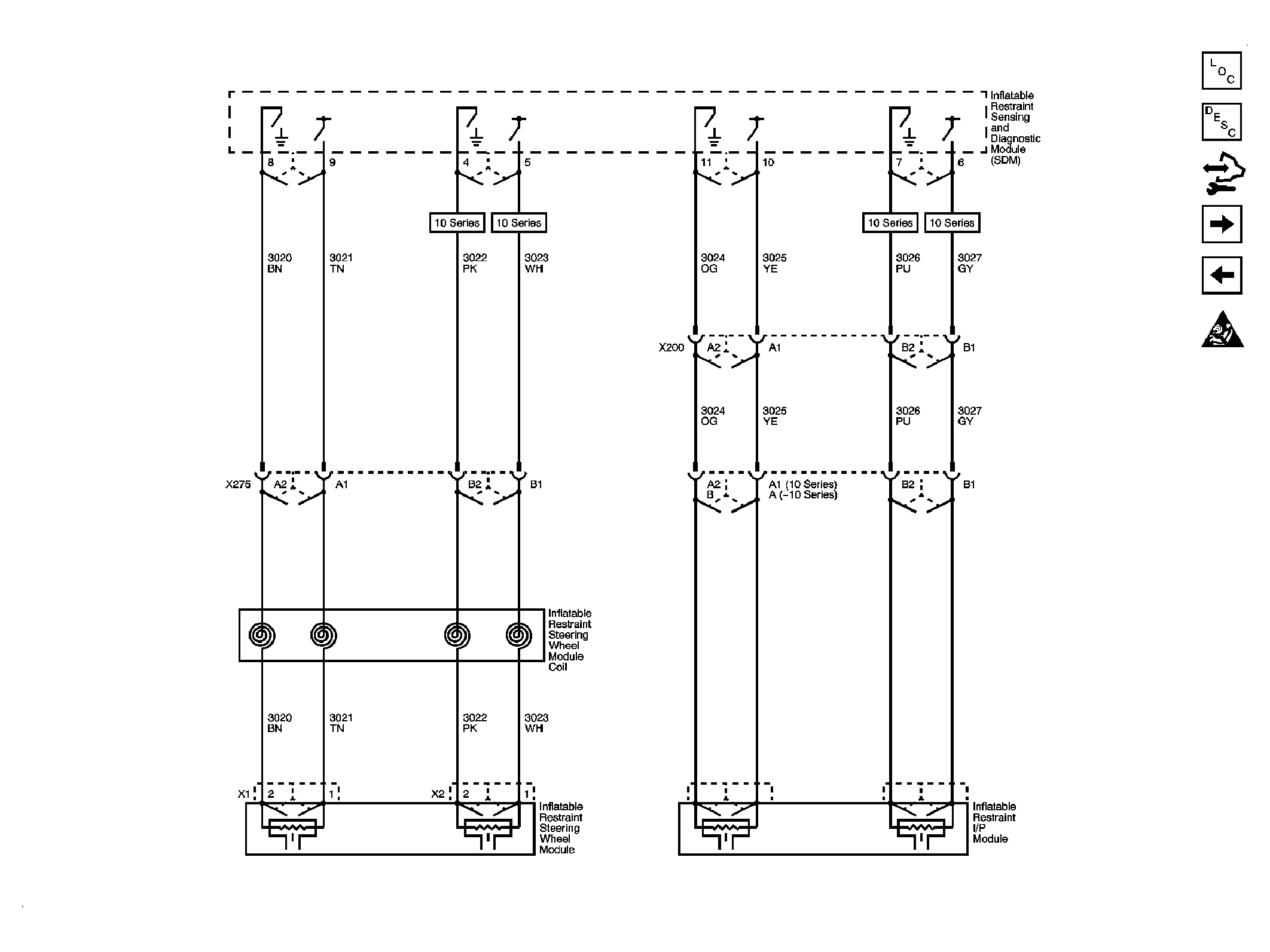

Fig 2: Steering Wheel and I/P Module

Courtesy of GENERAL MOTORS CORP.

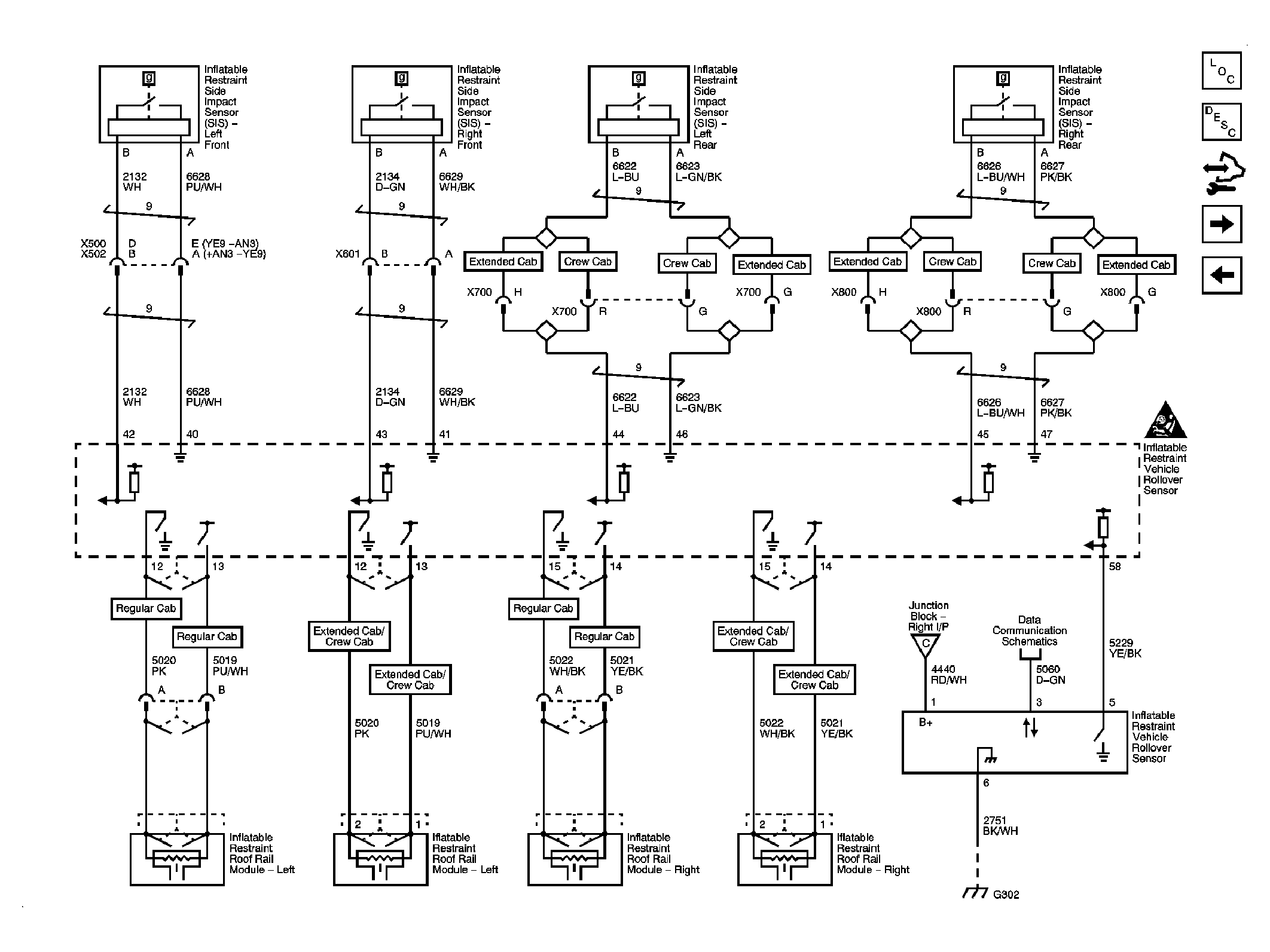

Fig 3: Side Impact Modules and Sensors (ASF)

Courtesy of GENERAL MOTORS CORP.

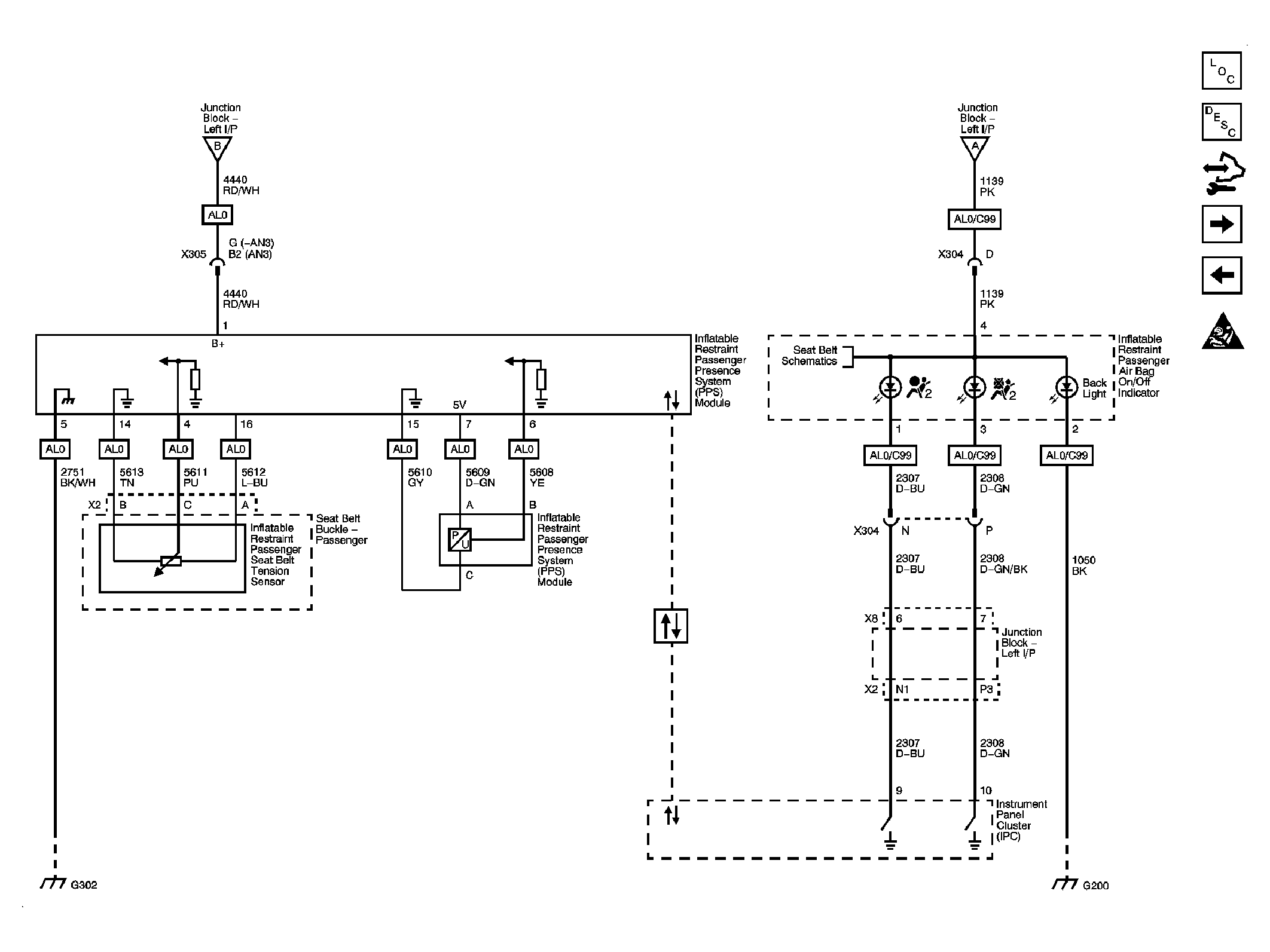

Fig 4: Passenger Presence System 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: Passenger Presence System 2 of 2

Courtesy of GENERAL MOTORS CORP.
