Knee Bolster Replacement (without RPO SLT)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

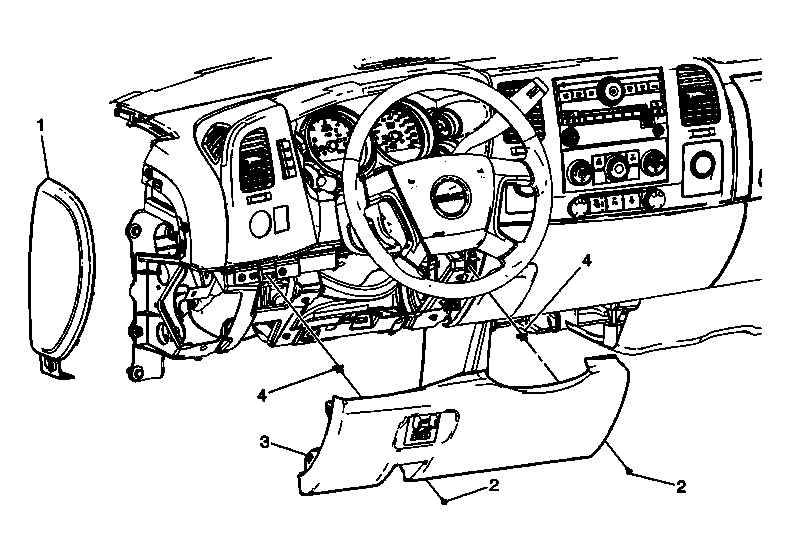

Fig 1: Knee Bolster (without RPO SLT)
GM1827308Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the park brake release handle assembly from the knee bolster. Refer to Parking Brake Release Handle Assembly Replacement .
1 Instrument Panel Left Outer Trim Cover
Refer to Instrument Panel Outer Trim Cover Replacement (without RPO SLT) .
2 Knee Bolster Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
3 Knee Bolster Assembly
Tip:
  1. Disconnect the electrical connectors.
  2. If replacing the knee bolster assembly, transfer all necessary components.
4 Retainer Clip (Qty: 3)
