Output Shaft Disassemble
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Output Shaft Disassemble

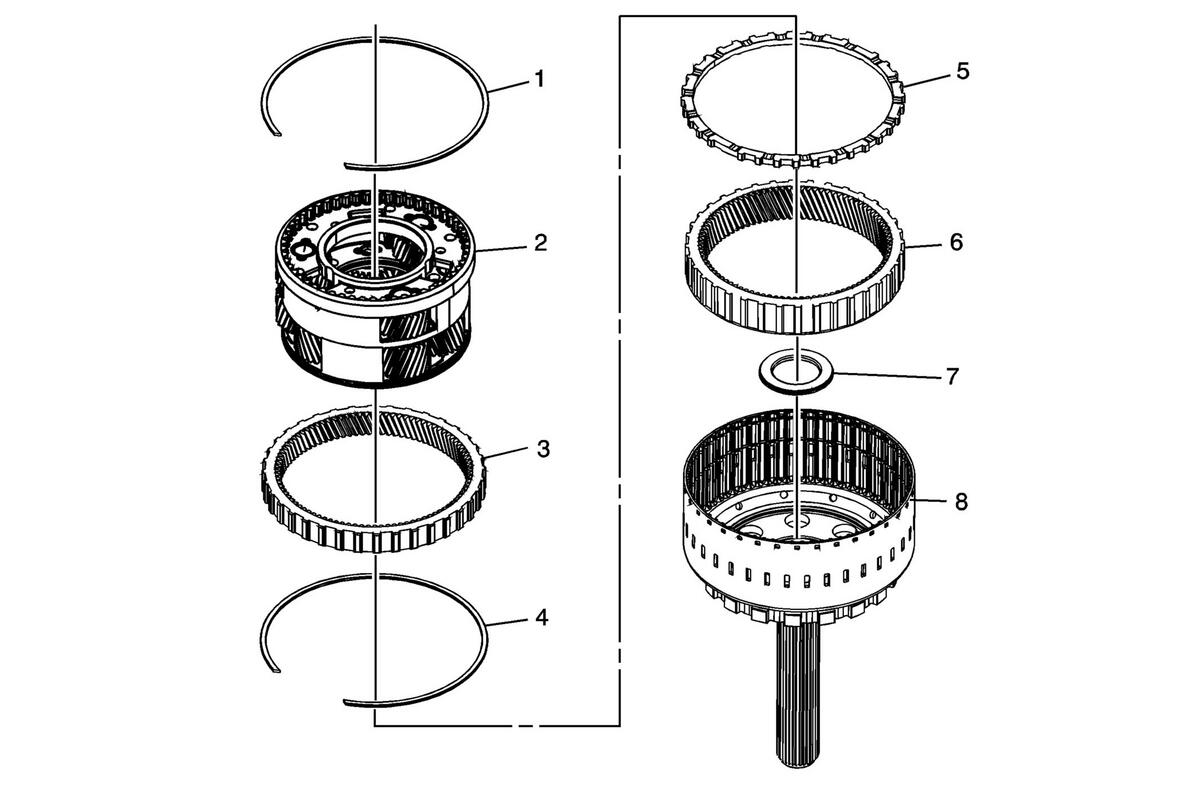

| Callout | Component Name |
|---|---|
| Tip: Inspect each component and replace as necessary. | |
| 1 | Output Carrier Internal Gear Retaining Ring |
| 2 | Output Carrier Assembly |
| 3 | Output Carrier Internal Front Gear |
| 4 | Output Carrier Internal Gear Retaining Ring |
| 5 | Output Carrier Internal Gear Spacer |
| 6 | Output Carrier Internal Rear Gear |
| 7 | Output Carrier Thrust Bearing Assembly |
| 8 | Output Shaft Assembly |
