Low & Reverse Clutch Plate Removal
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

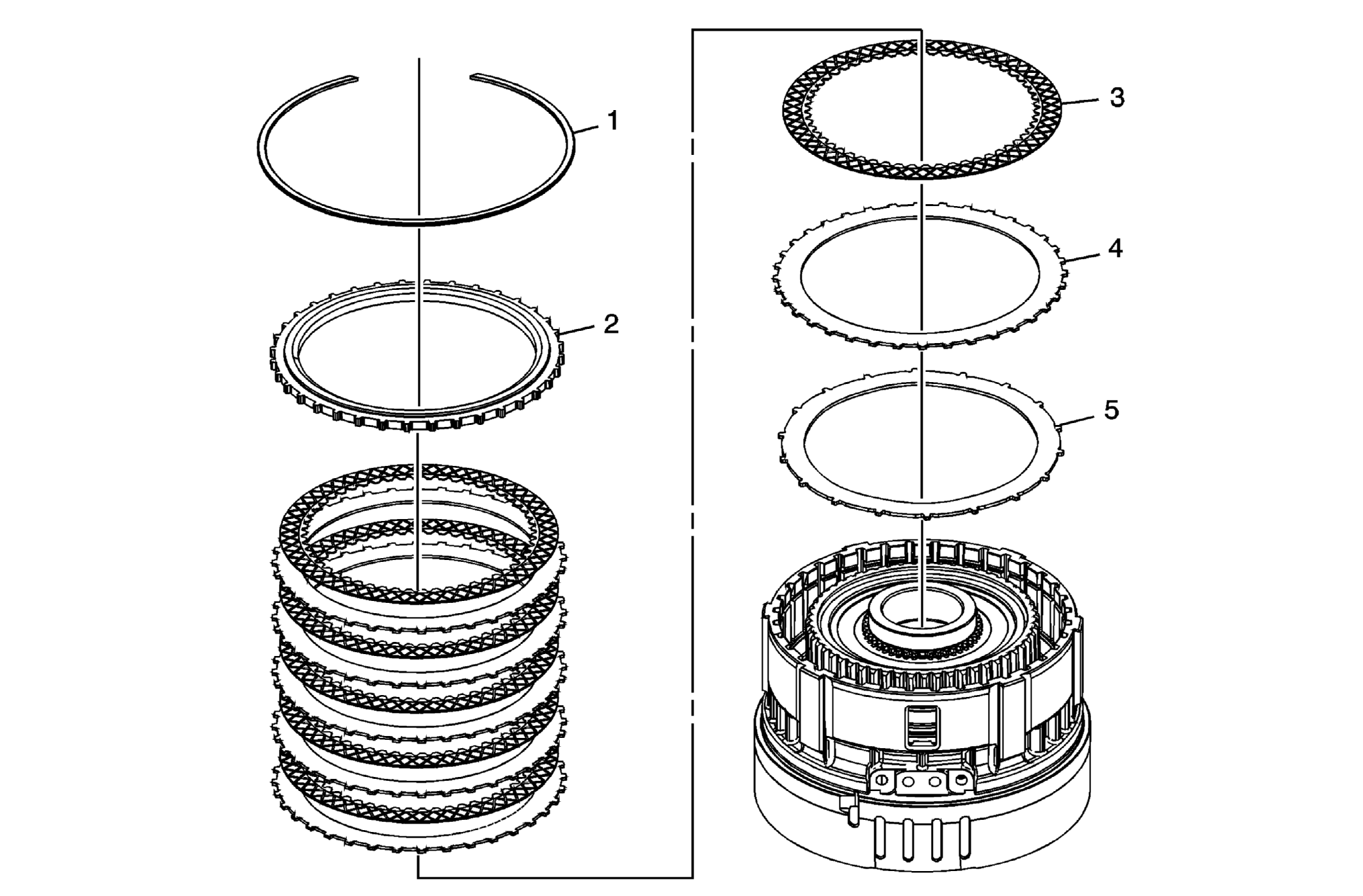

Courtesy of GENERAL MOTORS CORP. Low & Reverse Clutch Plate Removal
| Callout |
Component Name |
| 1 |
Low and Reverse Clutch Backing Plate Retaining Ring |
| 2 |
Low and Reverse Clutch Backing Plate |
| 3 |
Low and Reverse Clutch Plate Assembly (Qty: 6) |
| 4 |
Low and Reverse Clutch Plate (Qty: 6) |
| 5 |
Low and Reverse Clutch (Waved) Plate |
