4-5-6 Clutch Plates Installation

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

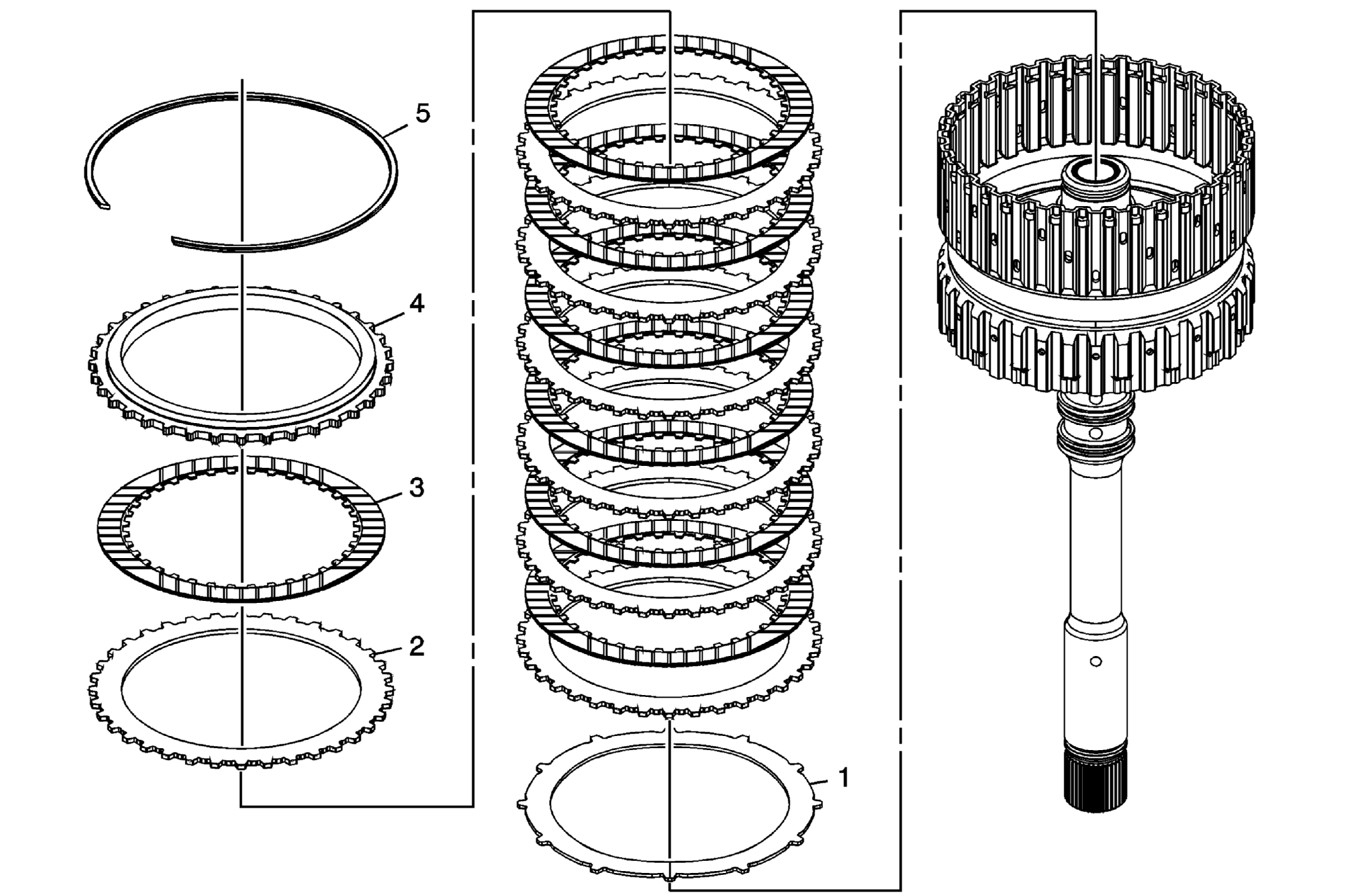

Fig 1: View Of 4-5-6 Clutch Plate Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	4-5-6 Clutch (Waved) Plate
2	4-5-6 Clutch Plate (Qty: 7)
3	4-5-6 Clutch Plate Assembly (Qty: 7)
4	4-5-6 Clutch Backing Plate
5	4-5-6 Clutch Backing Plate Retaining Ring Tip: After the retaining ring is installed, determine clutch piston travel in order to verify if the correct selective retaining ring is being used. Refer to 4-5-6 Clutch Backing Plate Retaining Ring Measurement .
