2-6 Clutch Plates Removal
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

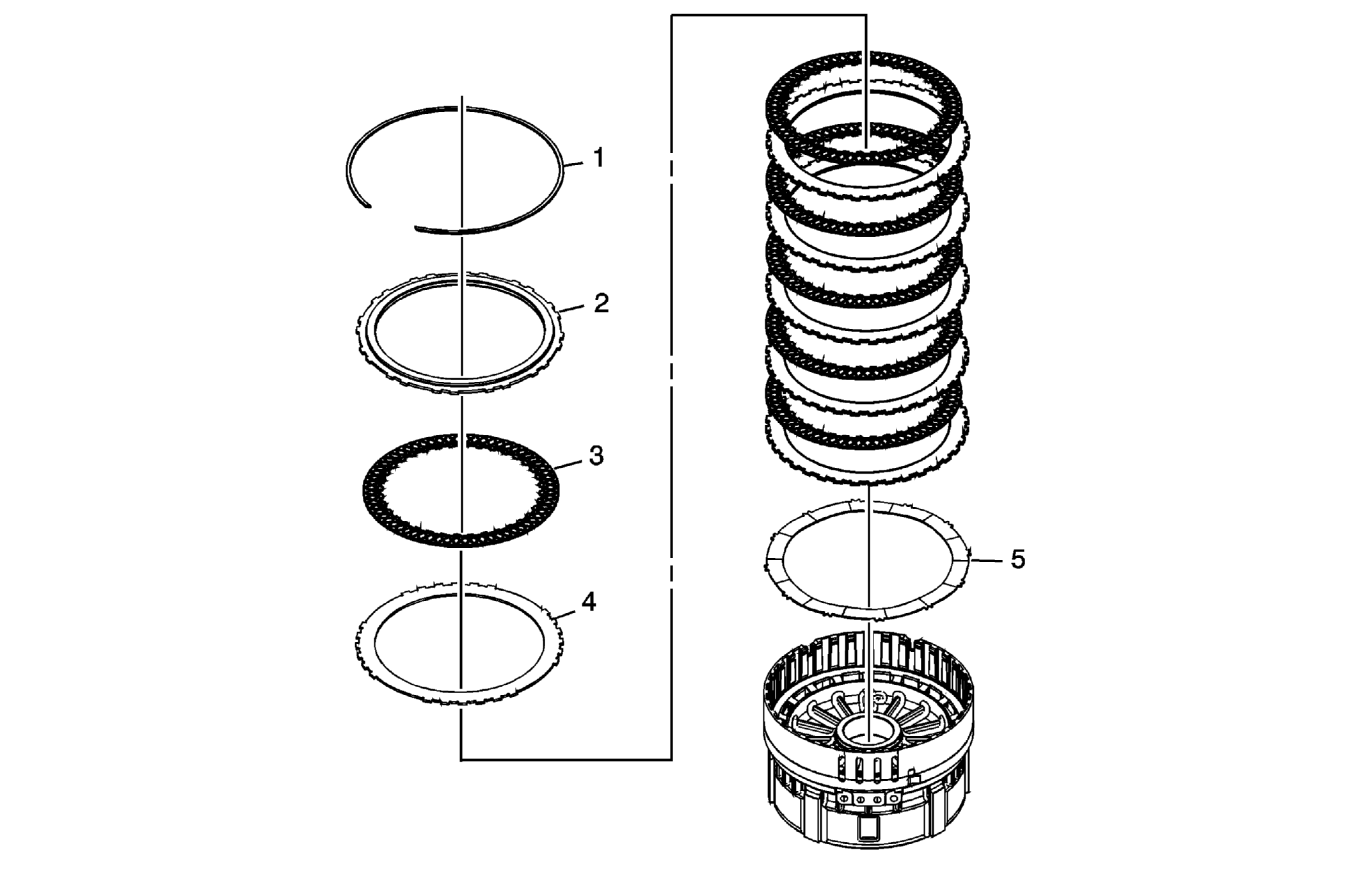

Courtesy of GENERAL MOTORS CORP. 2-6 Clutch Plates Removal
| Callout |
Component Name |
| 1 |
2-6 Clutch Backing Plate Retaining Ring |
| 2 |
2-6 Clutch Backing Plate |
| 3 |
2-6 Clutch Plate Assembly (Qty: 6) |
| 4 |
2-6 Clutch Plate (Qty: 6) |
| 5 |
2-6 Clutch (Waved) Plate |
