1-2-3-4 & 3-5 Reverse Clutch Plates Removal
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

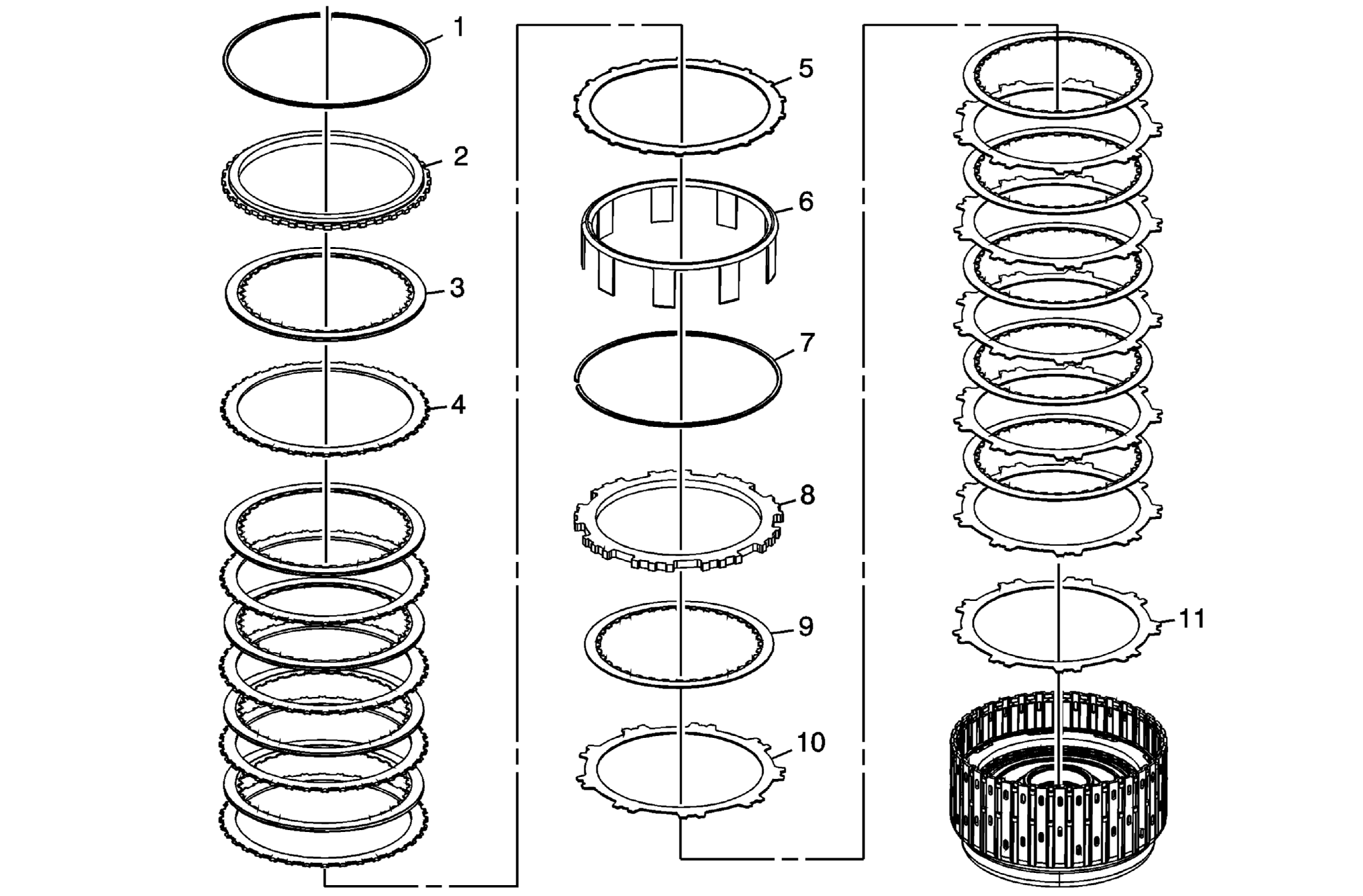

1-2-3-4 and 3-5 Reverse Clutch Plates Removal
| Callout | Component Name |
|---|---|
| 1 | 3-5 Reverse Clutch Backing Plate Retaining Ring |
| 2 | 3-5 Reverse Clutch Backing Plate |
| 3 | 3-5 Reverse Clutch Plate Assembly (Qty: 5) |
| 4 | 3-5 Reverse Clutch Plate (Qty: 5) |
| 5 | 3-5 Reverse Clutch (Waved) Plate |
| 6 | 3-5 Reverse Clutch Apply Ring |
| 7 | 1-2-3-4 Clutch Backing Plate Retaining Ring |
| 8 | 1-2-3-4 Clutch Backing Plate |
| 9 | 1-2-3-4 Clutch Plate Assembly (Qty: 6) |
| 10 | 1-2-3-4 Clutch Plate (Qty: 6) |
| 11 | 1-2-3-4 Clutch (Waved) Plate |
