1-2-3-4 & 3-5 Reverse Clutch Piston Seals Replacement
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
1-2-3-4 & 3-5 Reverse Clutch Piston Seals Replacement

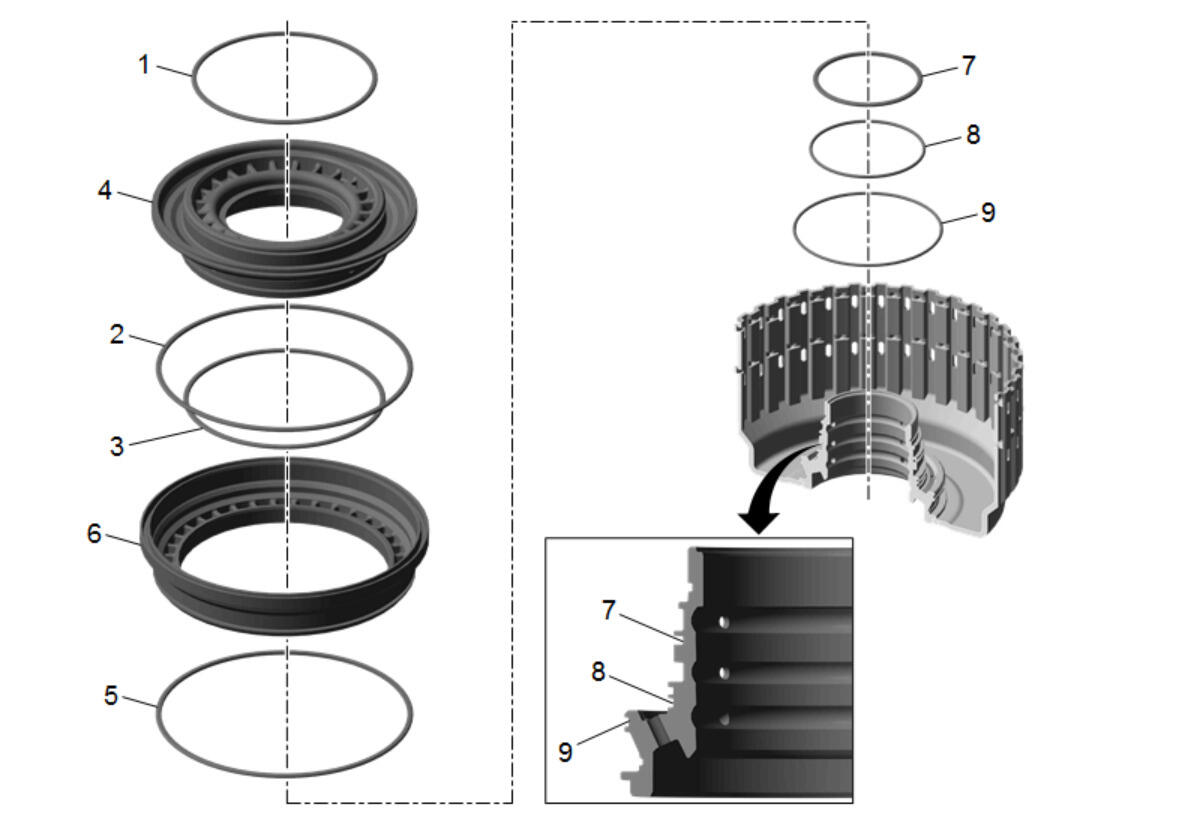

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Seal Reuse Notice
. Preliminary Procedure: Lubricate all seals with automatic transmission fluid (ATF) prior to installation. |
|
| 1 | 1-2-3-4 Clutch Piston Seal |
| 2 | 3-5 Reverse Clutch Piston Dam (O-Ring) Seal |
| 3 | 3-5 Reverse Clutch Piston Inner Seal |
| 4 | 1-2-3-4 Clutch Piston Housing |
| 5 | 3-5 Reverse Clutch Piston Outer Seal |
| 6 | 3-5 Reverse Clutch Piston |
| 7 | 1-2-3-4 Clutch Piston Inner Seal
NOTE:
Do not install a NEW 1-2-3-4 clutch piston inner seal yet. A special tool used to install the 1-2-3-4 clutch piston housing retaining ring may damage the seal if the seal is installed prior to installing the retaining ring. Refer to 3-5 Reverse Clutch Piston Installation .
|
| 8 | 1-2-3-4 Clutch Piston Housing Seal |
| 9 | 1-2-3-4 Clutch Piston Housing Seal |
