Master Cylinder Replacement (Vacuum Assist)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

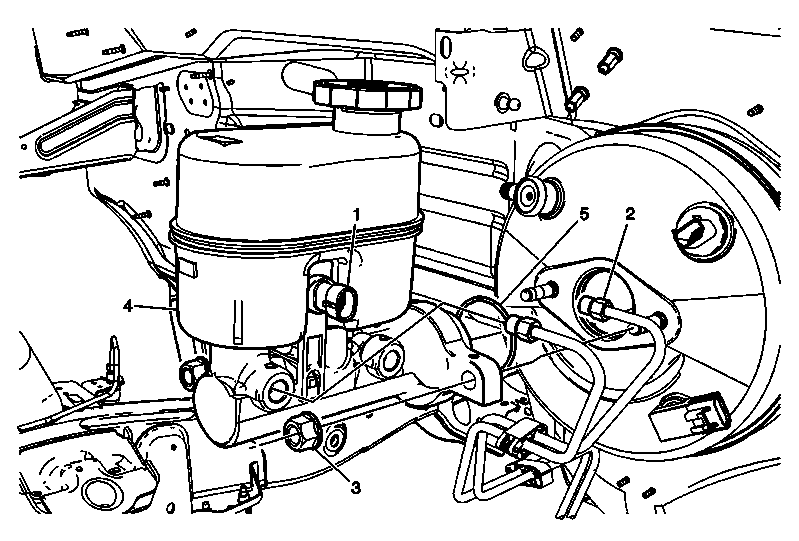

Fig 1: Master Cylinder (Vacuum Assist)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedures With the engine OFF, apply the brake pedal several times until the brake pedal becomes firm to deplete the vacuum brake booster vacuum reserve. Using a suitable tool, remove the brake fluid from the brake master cylinder reservoir. Discard the brake fluid into an approved container.
1	Brake Fluid Level Indicator Switch Electrical Connector
2	Brake Pipe Fitting (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove any dirt or debris from the brake pipe fitting. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten: With JL4: 32 N.m (24 lb ft) Tighten: Without JL4: 25 N.m (18 lb ft)
3	Brake Master Cylinder Nut (Qty: 2) Tighten: 33 N.m (24 lb ft)
4	Brake Master Cylinder Assembly
5	Brake Master Cylinder to Vacuum Booster Seal Procedure Inspect the brake master cylinder to vacuum booster seal for damage and replace if necessary. Ensure the brake master cylinder to vacuum booster seal is properly seated against the base of the brake master cylinder. Do not place the brake master cylinder to vacuum booster seal in the groove of the master cylinder body. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Two-mode Hybrid) .
