Connector Views

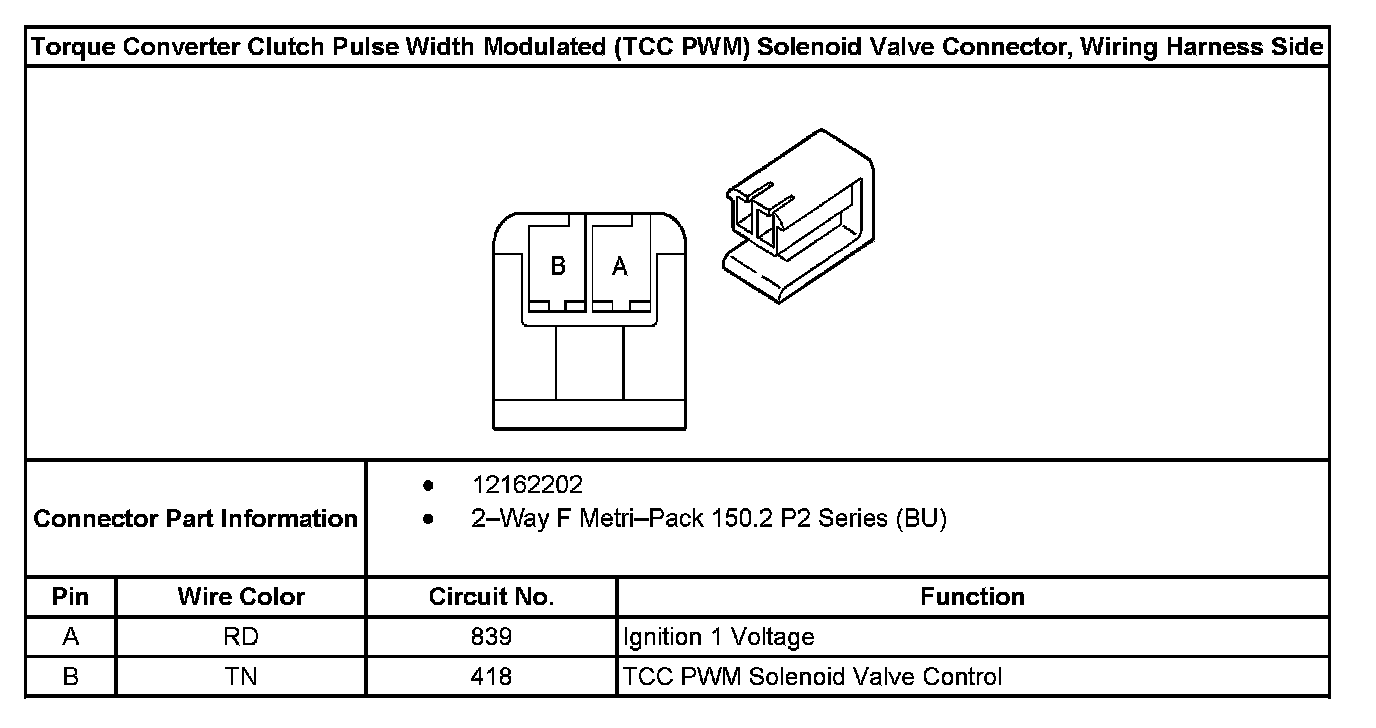

Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector, Wiring Harness Side:

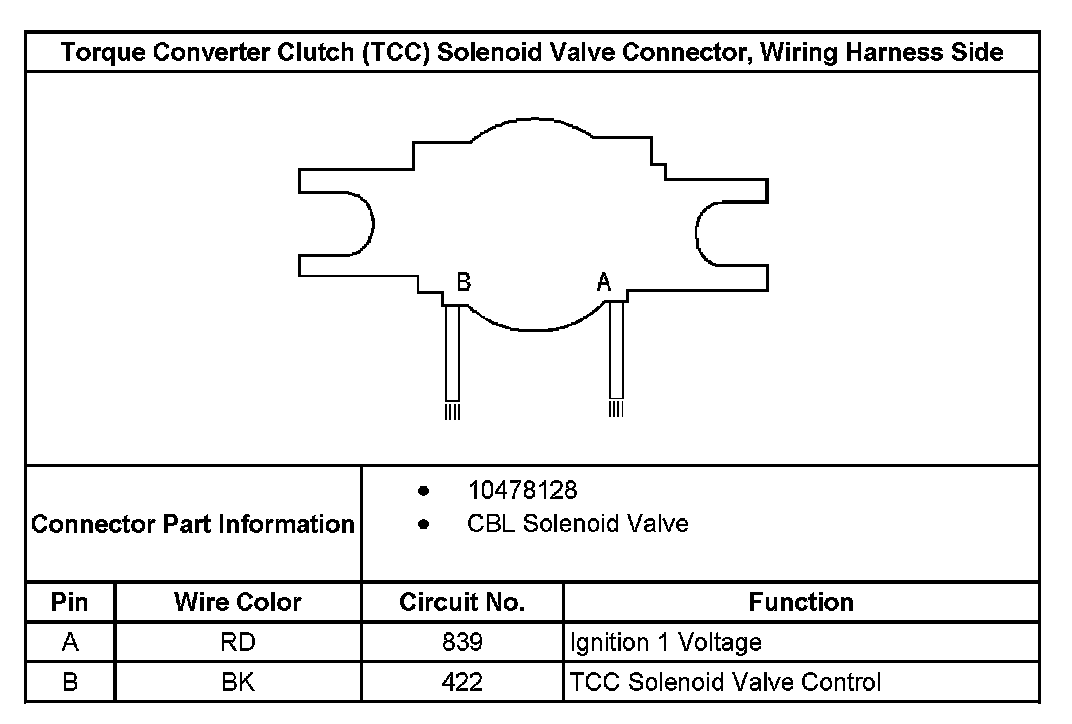

Torque Converter Clutch Solenoid Valve Connector, Wiring Harness Side:
