Fuse Block - Underhood C1
Fuse Block - Underhood C1

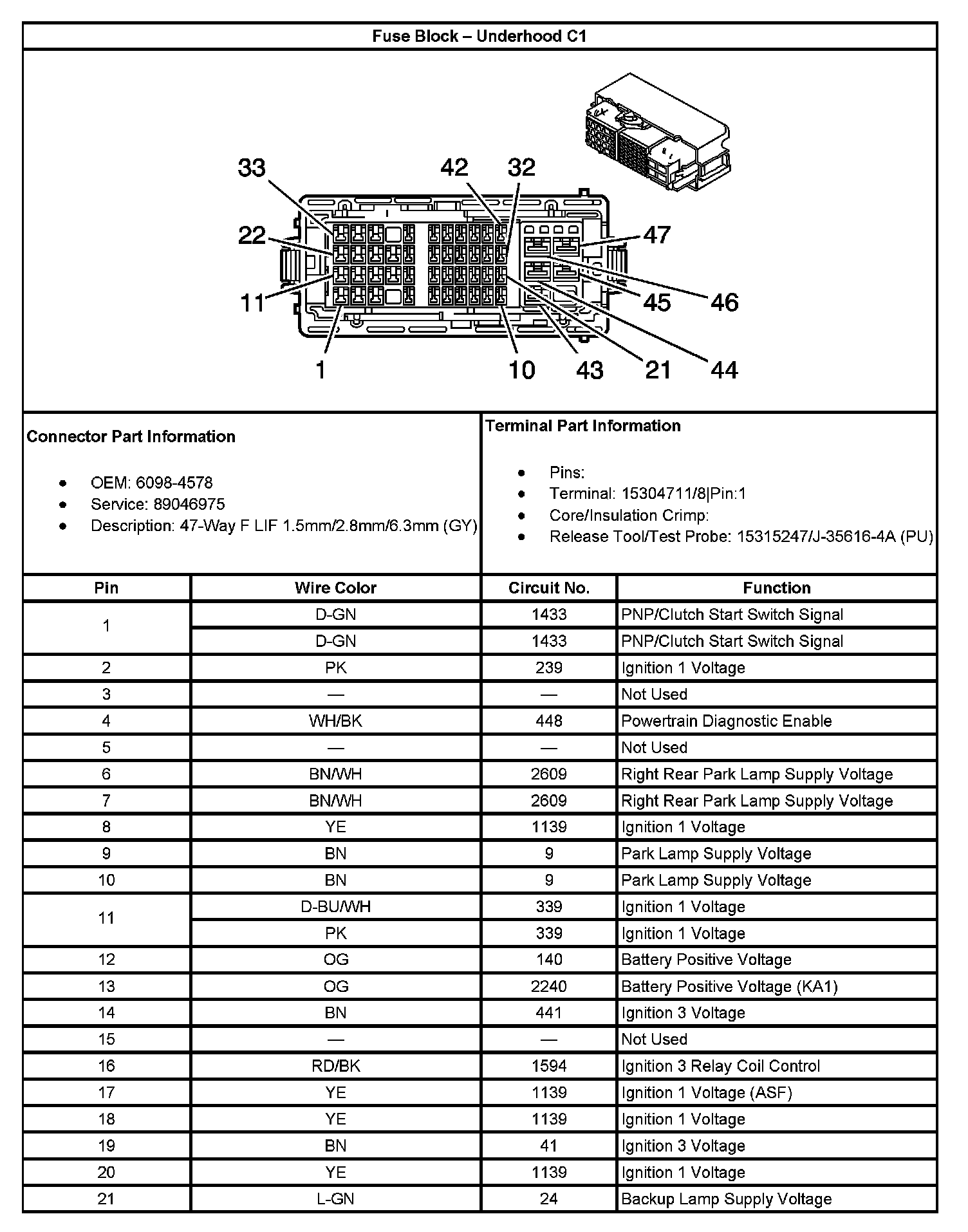

Fuse Block - Underhood C1 (Part 1):

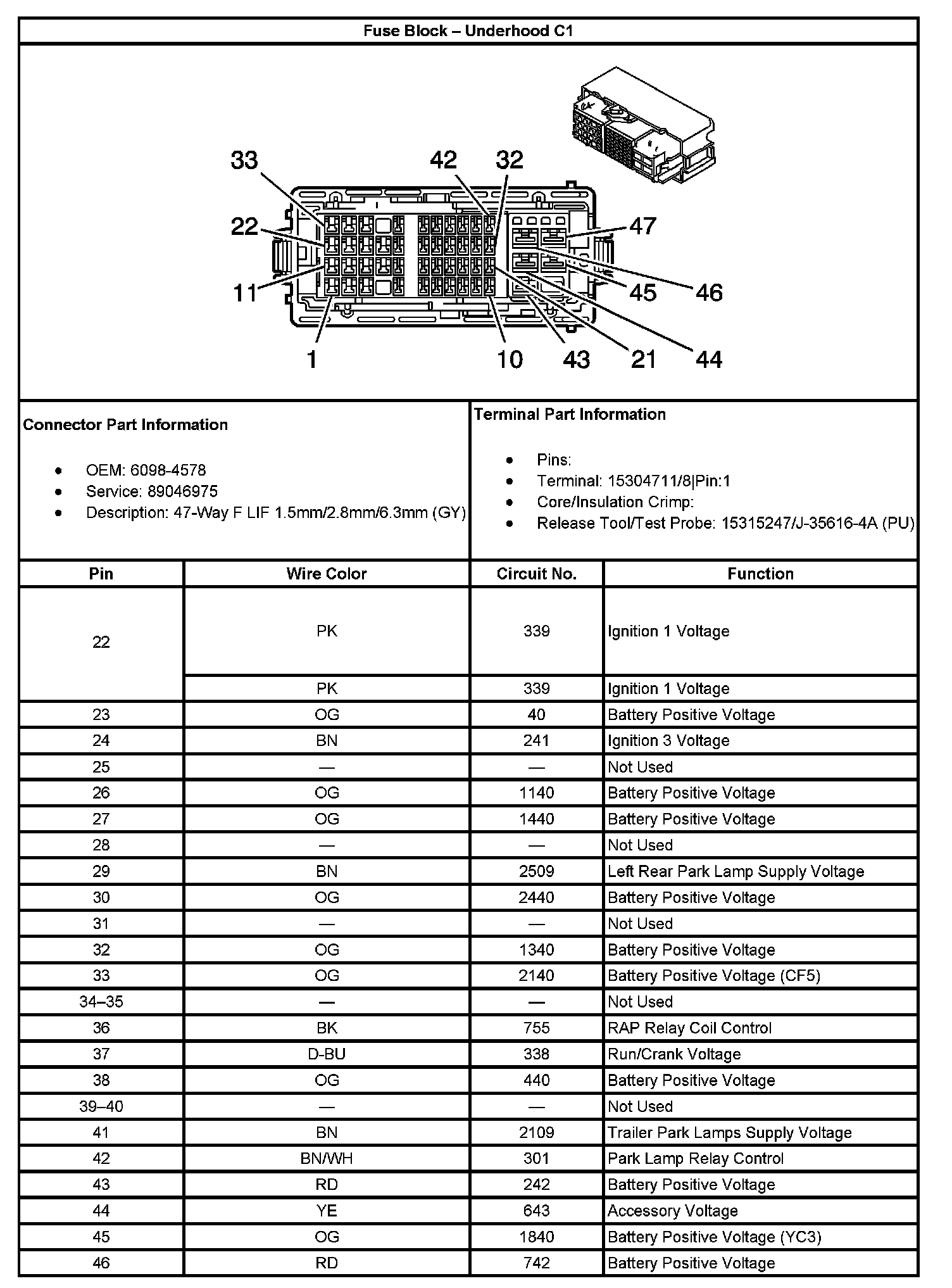

Fuse Block - Underhood C1 (Part 2):

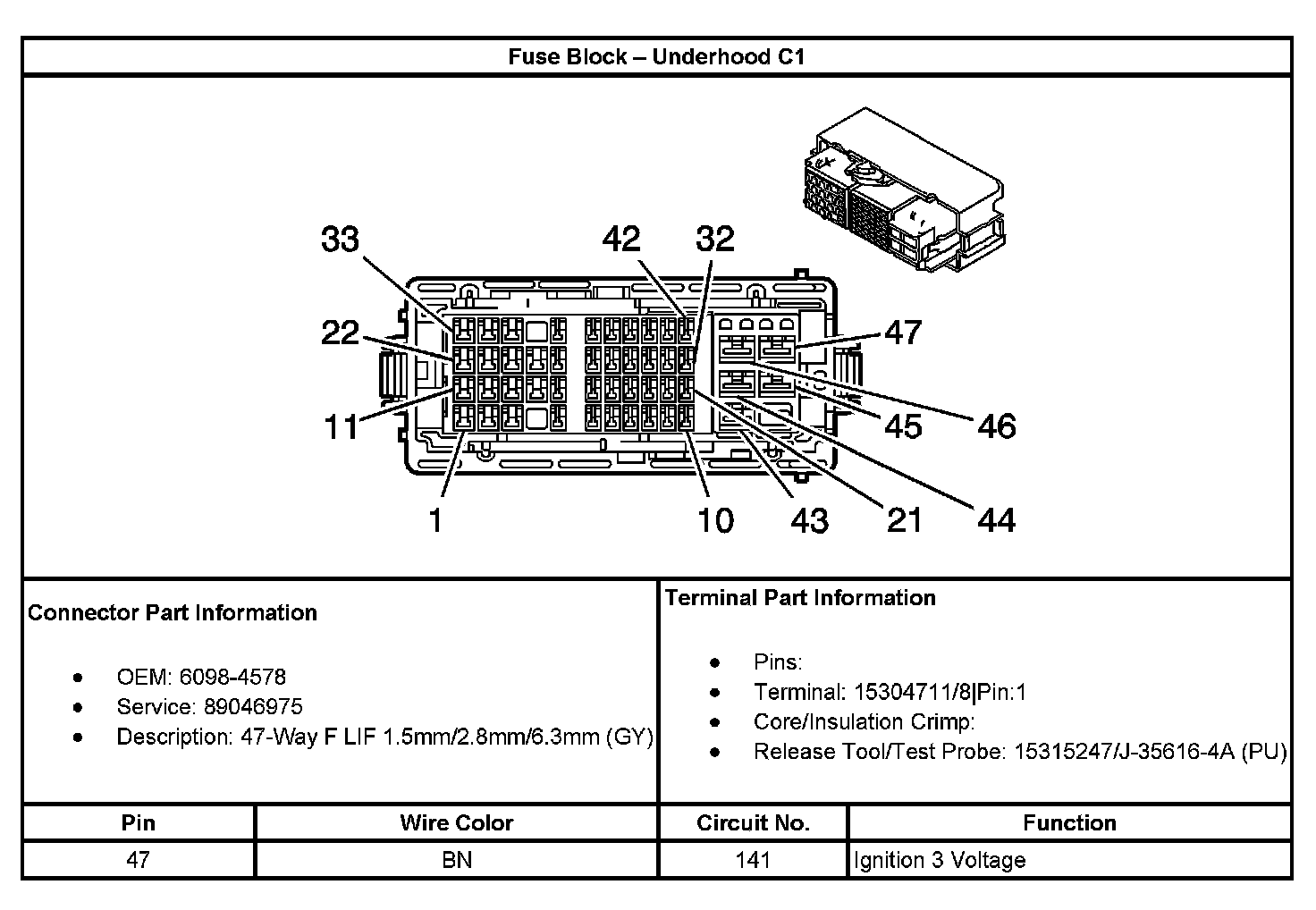

Fuse Block - Underhood C1 (Part 3):
