Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations

Power Seat Switch: Locations

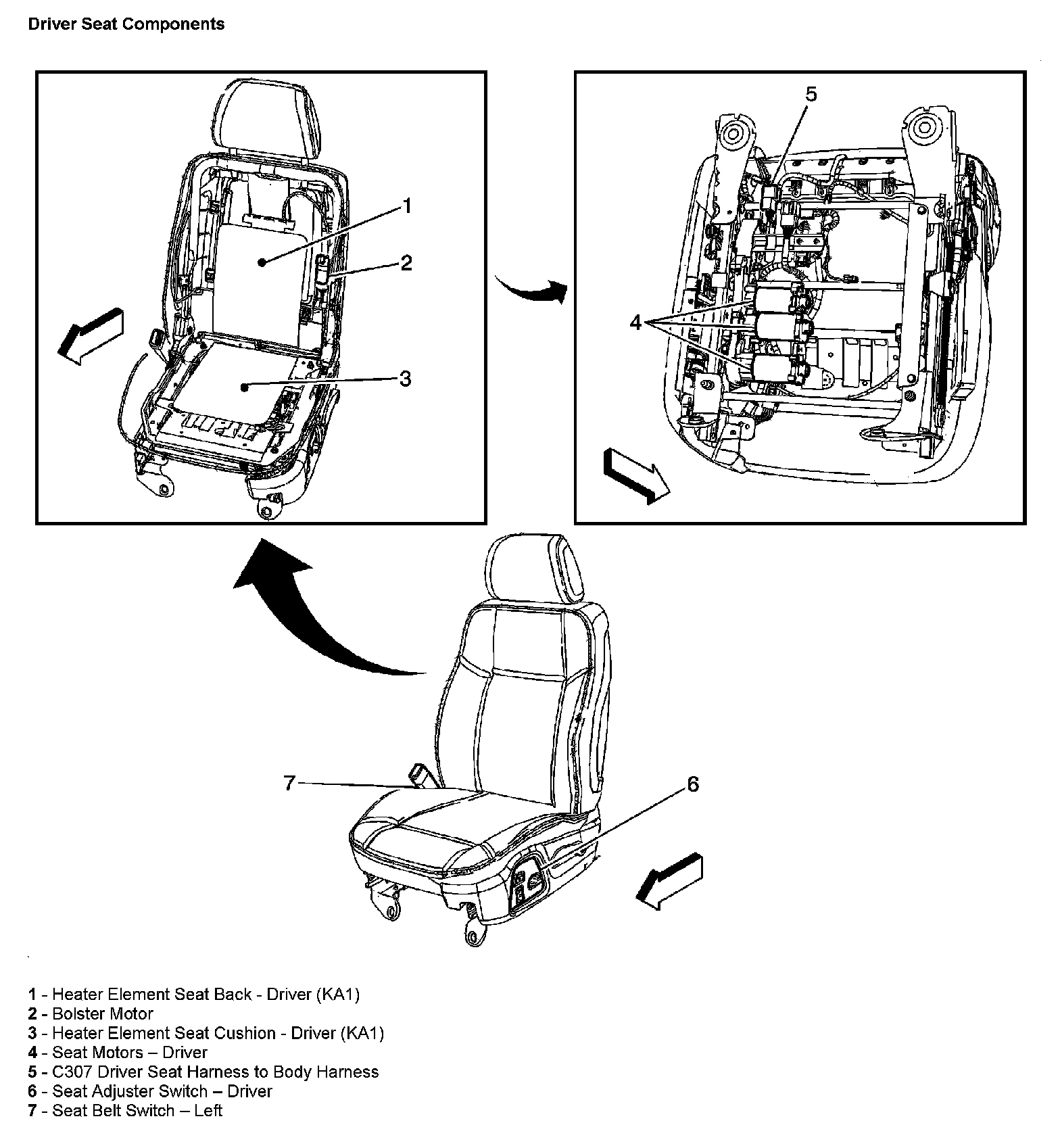

Driver Seat Components:

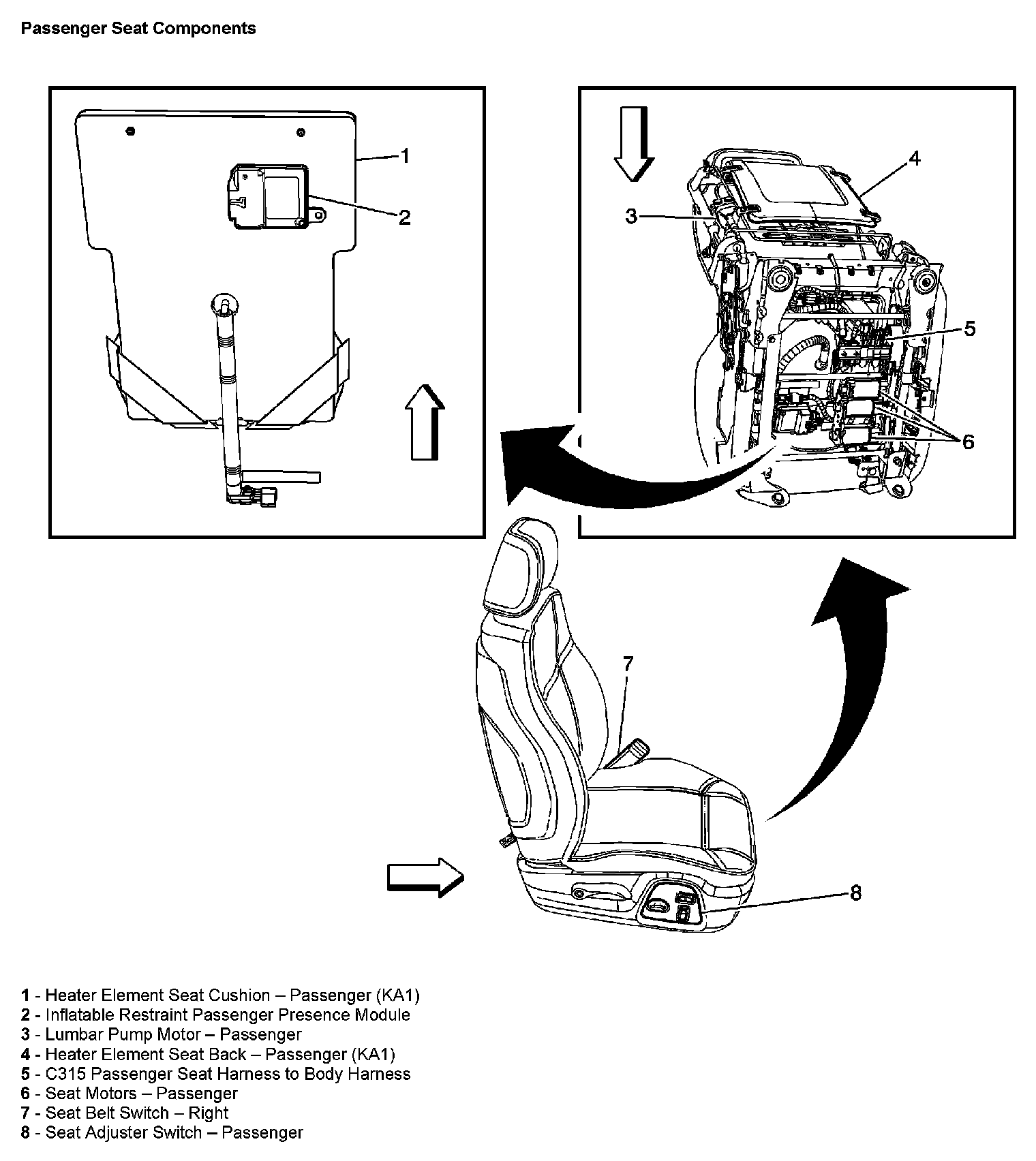

Passenger Components:
