Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Locations

Headlamp Switch: Locations

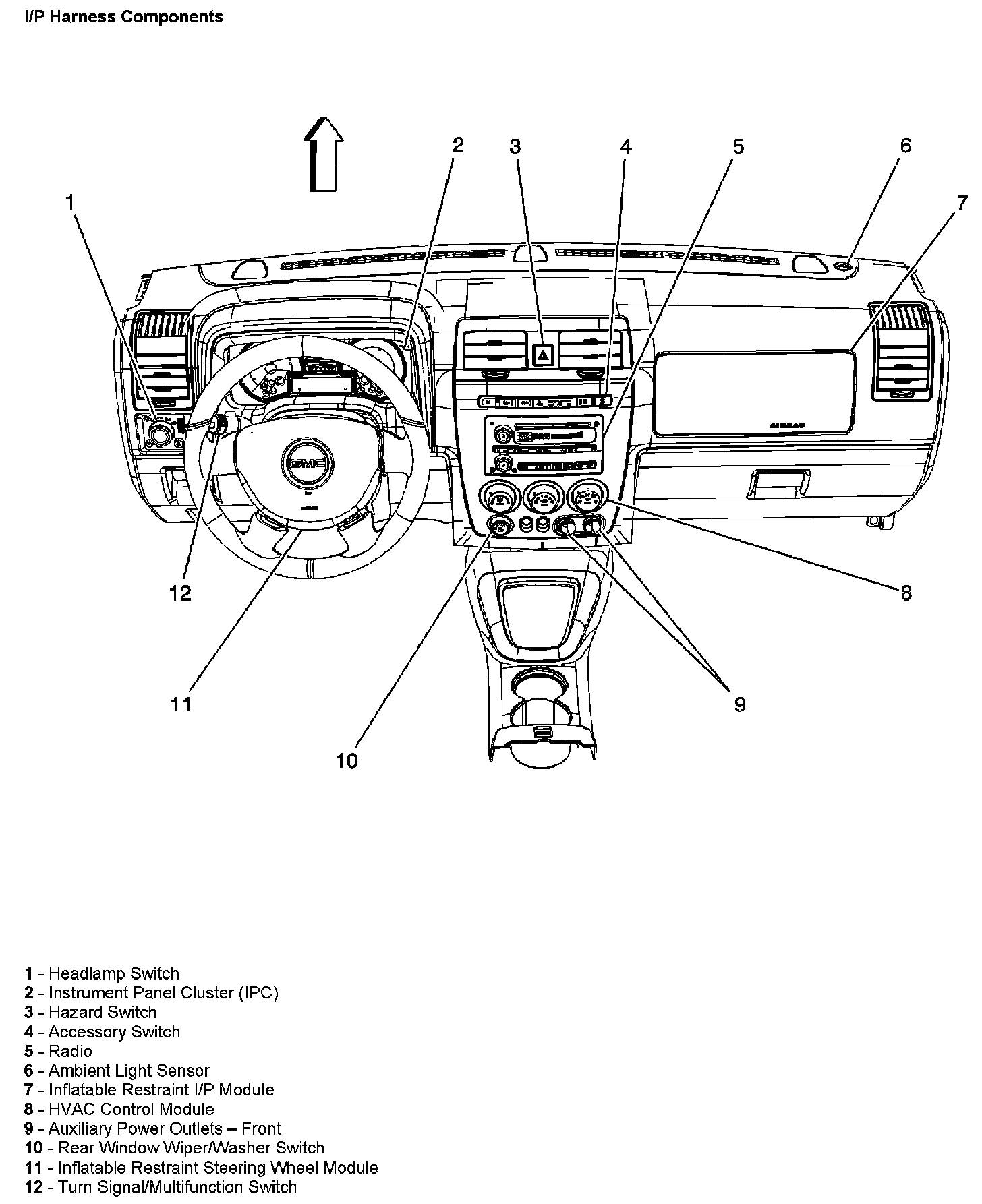

I/P Harness Components:
