No (or Noisy) Onstar Audio



NO (OR NOISY) ONSTAR AUDIO

TEST DESCRIPTION

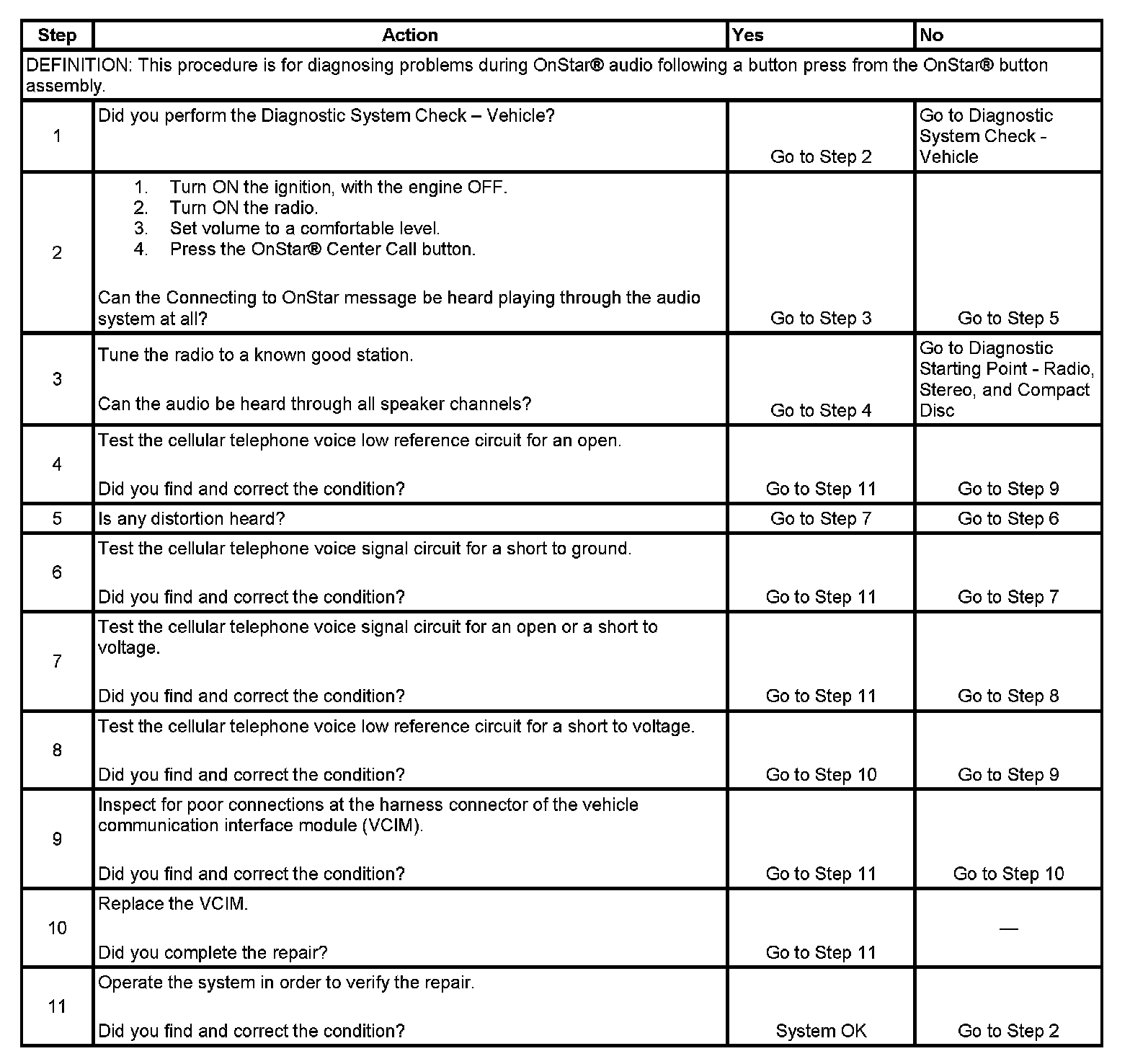

Step 1 - Step 11:




The number below refers to the step number on the diagnostic table.
8. If the cellular telephone voice low reference circuit is shorted to voltage the vehicle communication interface module (VCIM) has been damaged and requires replacement.
