06011 - Redesigned Vehicle Jack (06011)

06011 - Redesigned Vehicle Jack

SERVICE CAMPAIGN BULLETIN

Condition

General Motors is making available a redesigned vehicle jack for certain 2006 HUMMER H3 vehicles. This new jack has been designed to increase jack durability in the event of repeated use under certain conditions.

Correction

Dealers are to install a new designed vehicle jack.

Vehicles Involved

Involved are certain  2006 HUMMER H3 vehicles built within these VIN breakpoints:

Year	Division	Model	From	Through
2006	HUMMER	H3	68100001	68190036

For dealers with involved vehicles, a listing with involved vehicles containing the complete vehicle identification number, customer name, and address information has been prepared and will be provided through the applicable system listed below. Dealers will not have a report available if they have no involved vehicles currently assigned.

- US dealers - GM DealerWorld Recall Information

- Canadian dealers - GMinfoNet Recall Reports

- Export dealers - sent directly to dealers

The Campaign Initiation Detail Report may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this program is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this program.

Parts Information

Parts required to complete this program are to be obtained from General Motors Service Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO = Customer Special Order.

Part Number	Description	Qty/ Vehicle
15897196	Jack	1

Service Procedure

1. Open the rear swing-gate.

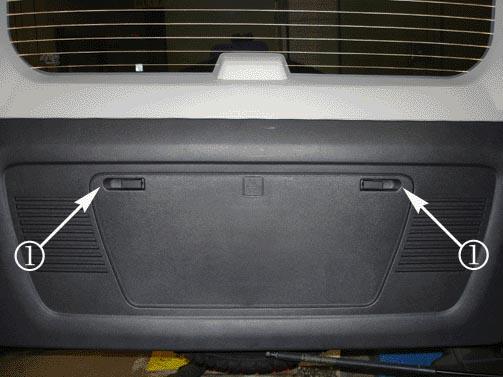

Fig 1: Opening Jack Stowage Compartment
Courtesy of GENERAL MOTORS CORP.
2. Open the jack stowage compartment by lifting the levers (1) at the top corners of the panel and tilting the top out first.

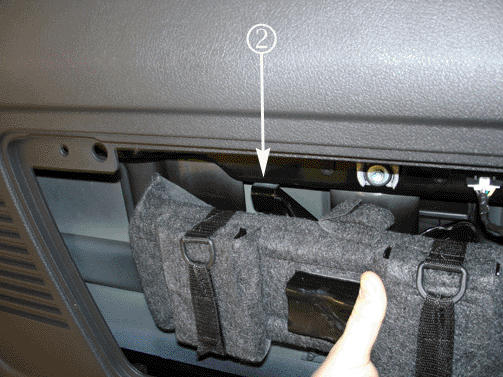

Fig 2: Locating Wing Nut
Courtesy of GENERAL MOTORS CORP.
3. Unscrew the jack retainer screw by turning the wing nut.
4. Remove the jack and tool kit assembly from the vehicle.
5. Undo the strips that retain the tool kit to the jack. Discard the jack, which must be damaged beyond further use, per section 1.7.3 of the Service Policy and Procedure Manual.

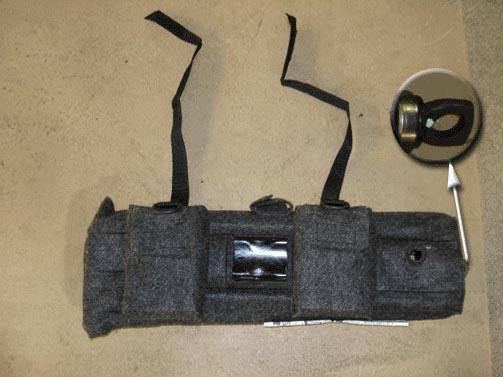

Fig 3: Placing Tool Kit Over Jack
Courtesy of GENERAL MOTORS CORP.
6. Place the tool kit over the new jack with the handle end of the jack to the right as shown.
Fig 4: Securing Tool Bag
Courtesy of GENERAL MOTORS CORP.
7. Secure the tool bag to the jack by securely wrapping the straps around the jack. Then, slide the strap through the rings on the bag and secure them.

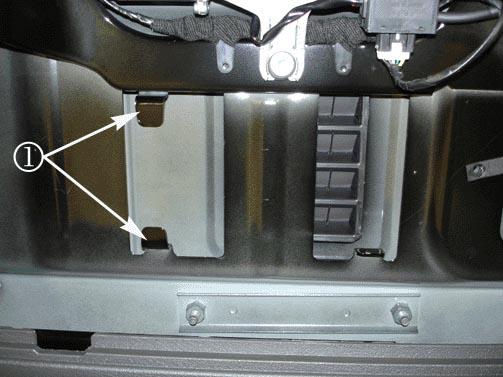

Fig 5: Locating Tabs In Swing Gate
Courtesy of GENERAL MOTORS CORP.
8. Fig 6: Positioning Jack

   Courtesy of GENERAL MOTORS CORP.

   Position the jack and jack tool bag in the swing-gate. When reinstalling the jack and jack tool bag, make sure the jack base is securely seated behind (2) the tabs (1) in the swing-gate.
9. Reinstall the wing nut retainer to fasten the jack and tool bag in the stowage compartment. Make sure that the wing nut passes through the tool bag and the jack before you tighten it.
10. Turn the wing nut retainer clockwise to secure.
11. Reinstall the compartment cover by inserting the locator tabs in the holes in the swing-gate. Push the latches down to secure it.

Courtesy Transportation - For US and Canada

The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranty. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product program is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.

Claim Information

Submit a Product Claim with the information indicated below:

Repair Performed	Part Count	Part No.	Parts Allow	CC-FC	Labor Op	Labor Hours*
Install New Jack	1	-	*	MA-96	V1456	0.2
* The "Parts Allowance" should be the sum total of the current GMSPO Dealer net price plus applicable Mark-Up or Landed Cost Mark-Up (for Export) for the jack needed to complete the repair.

Customer Notification - For US and Canada

General Motors will notify customers of this program on their vehicle (see copy of customer letter included with this bulletin).

Customer Notification - For Export

Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.

Dealer Program Responsibility - All

All unsold new vehicles in dealers' possession and subject to this program must be held and inspected/repaired per the service procedure of this program bulletin before customers take possession of these vehicles.

Dealers are to service all vehicles subject to this program at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.

Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Program follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.

In summary, whenever a vehicle subject to this program enters your vehicle inventory, or is in your dealership for service in the future, you must take the steps necessary to be sure the program correction has been made before selling or releasing the vehicle.
