Seat Temperature Switch: Locations

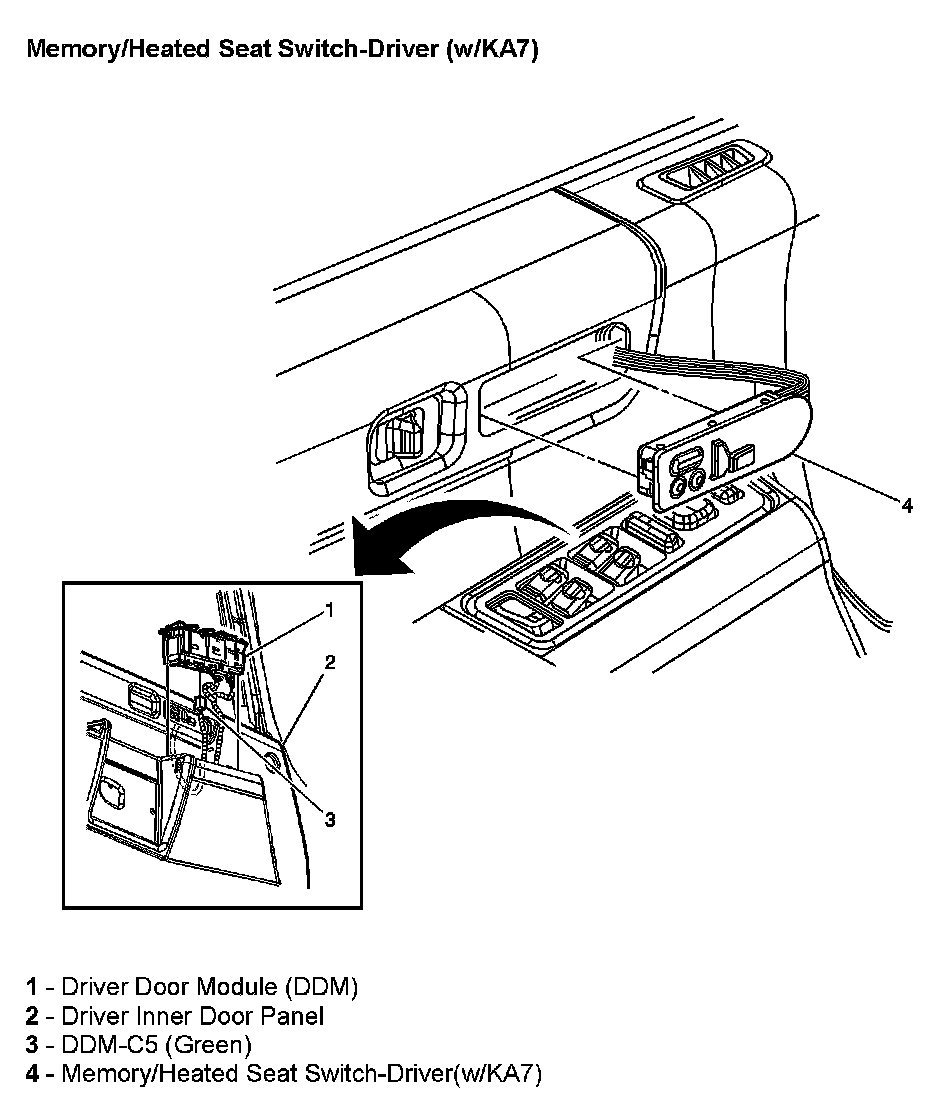

Memory/Heated Seat Switch-Driver (With RPO Code KA7):

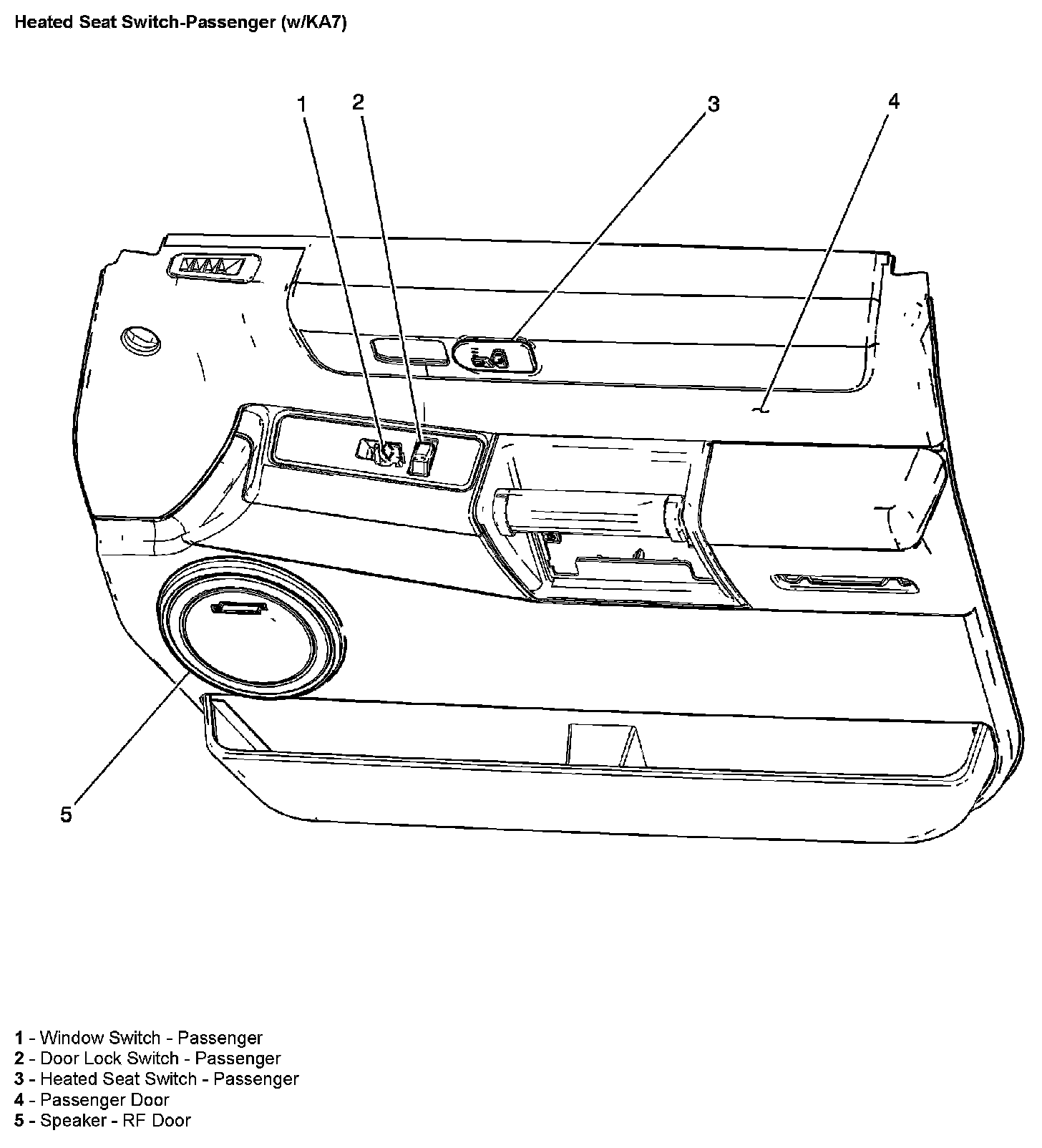

Heated Seat Switch-Passenger (With RPO Code /KA7):

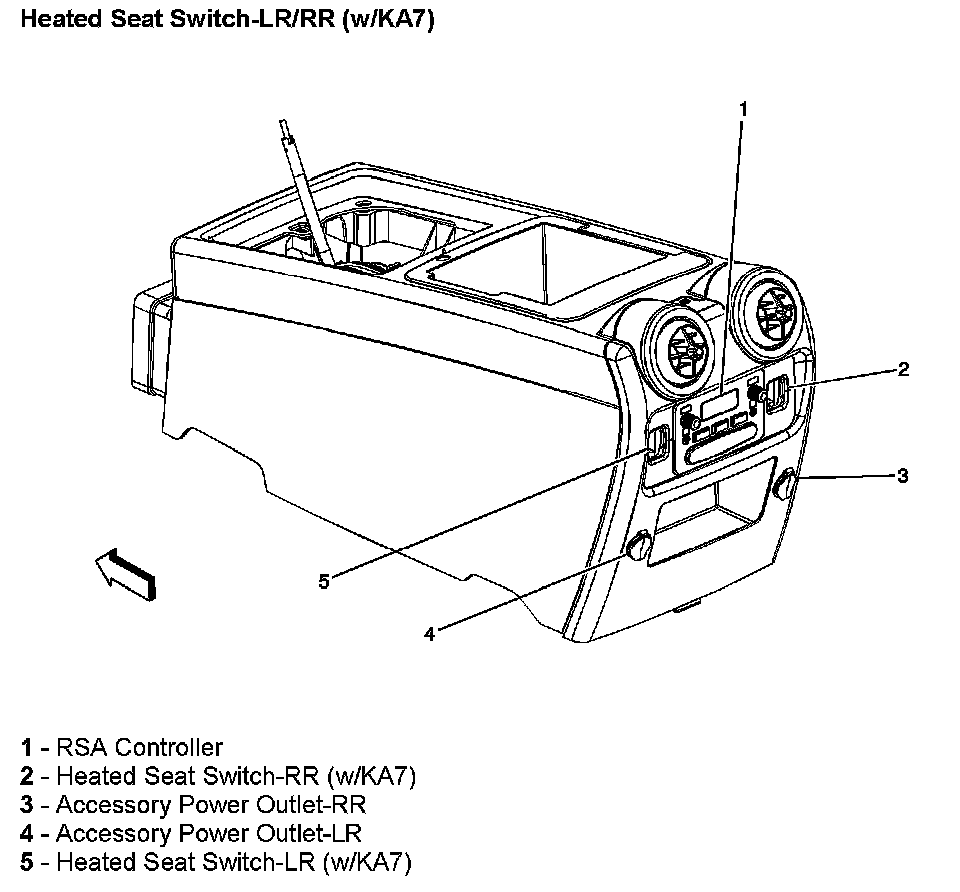

Heated Seat Switch-LR/RR (With RPO Code KA7):
