Interior Lights Dimming Diagram

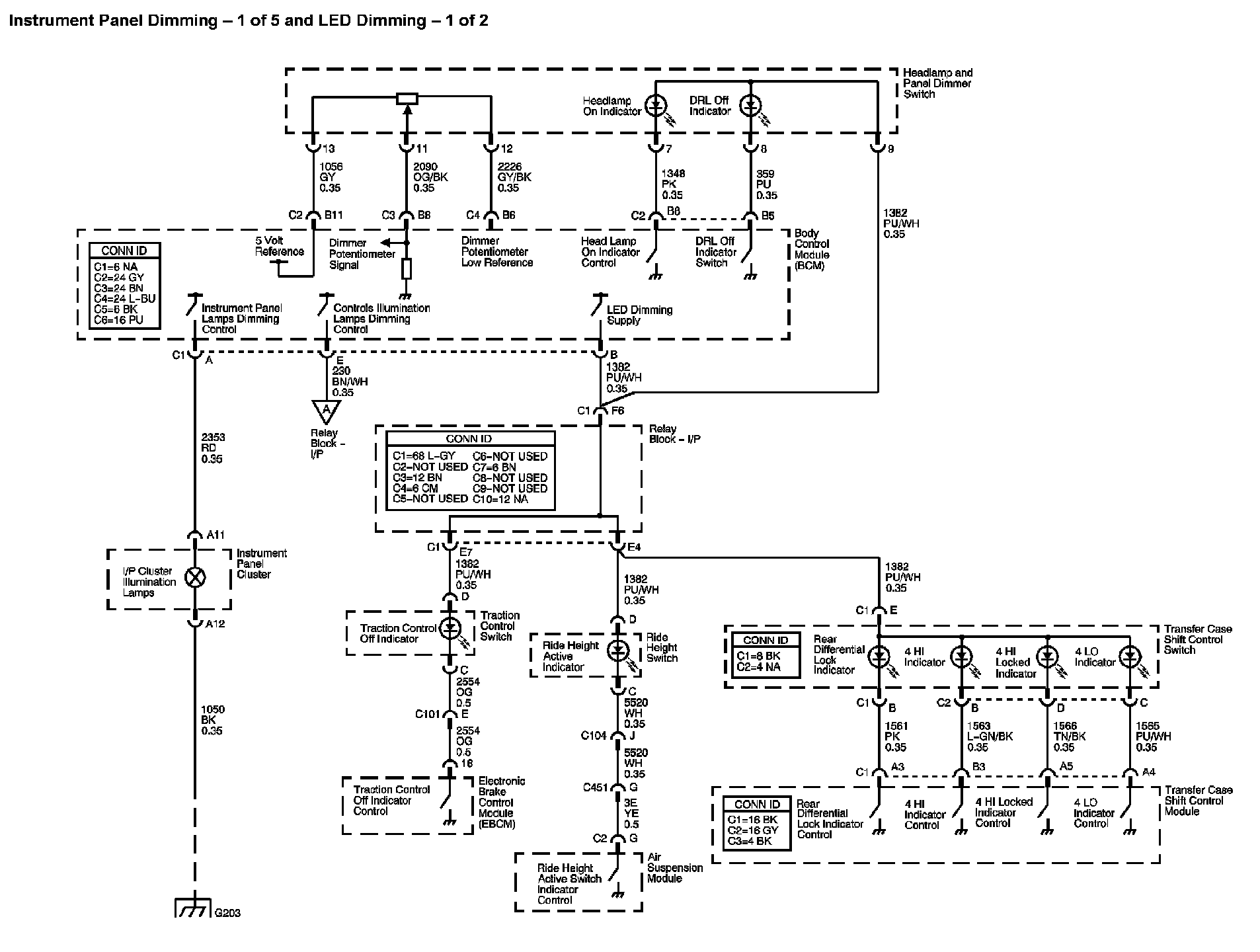

Interior Lights Dimming Diagram 1 (1 Of 5):

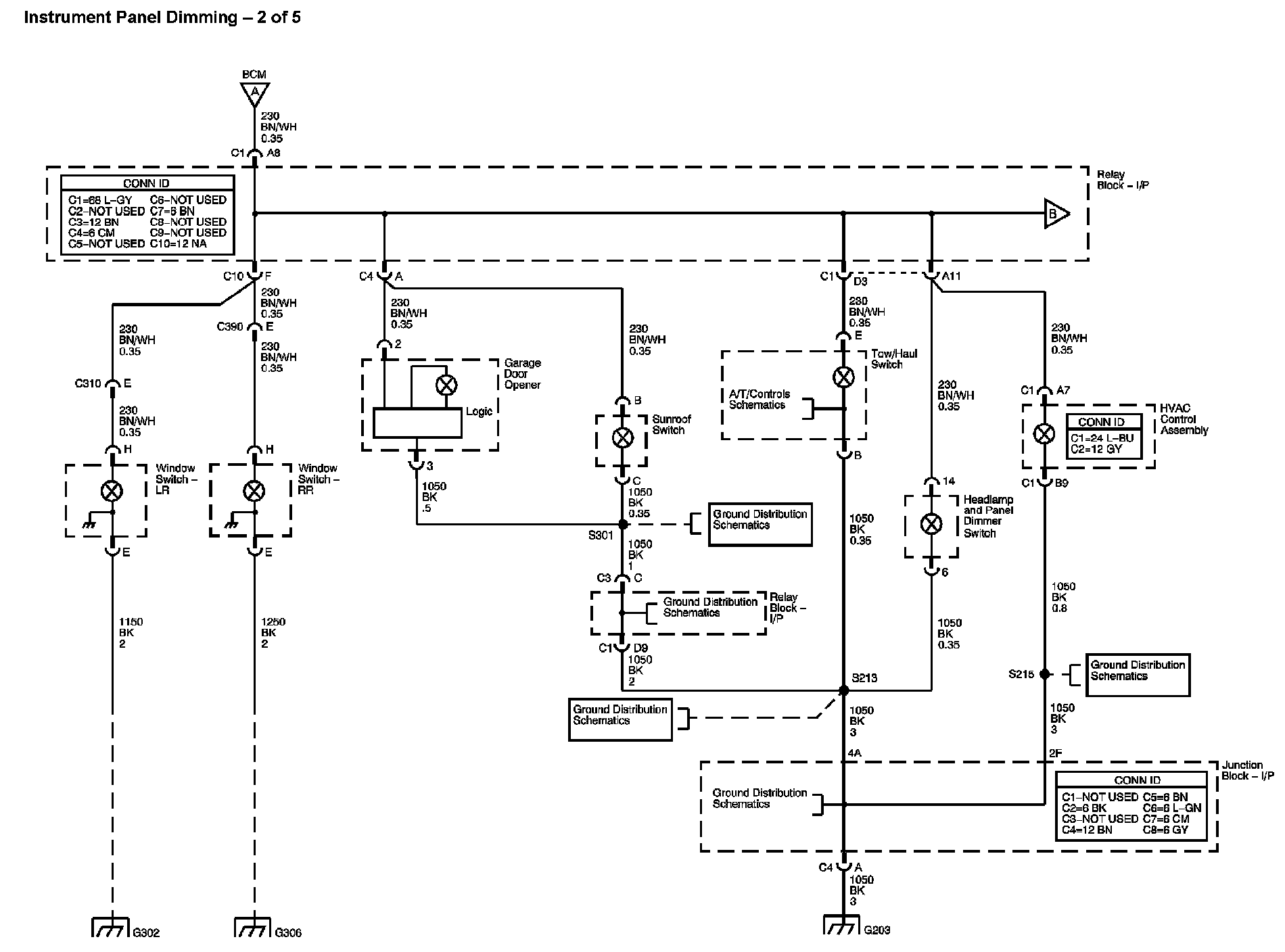

Interior Lights Dimming Diagram 1 (2 Of 5):

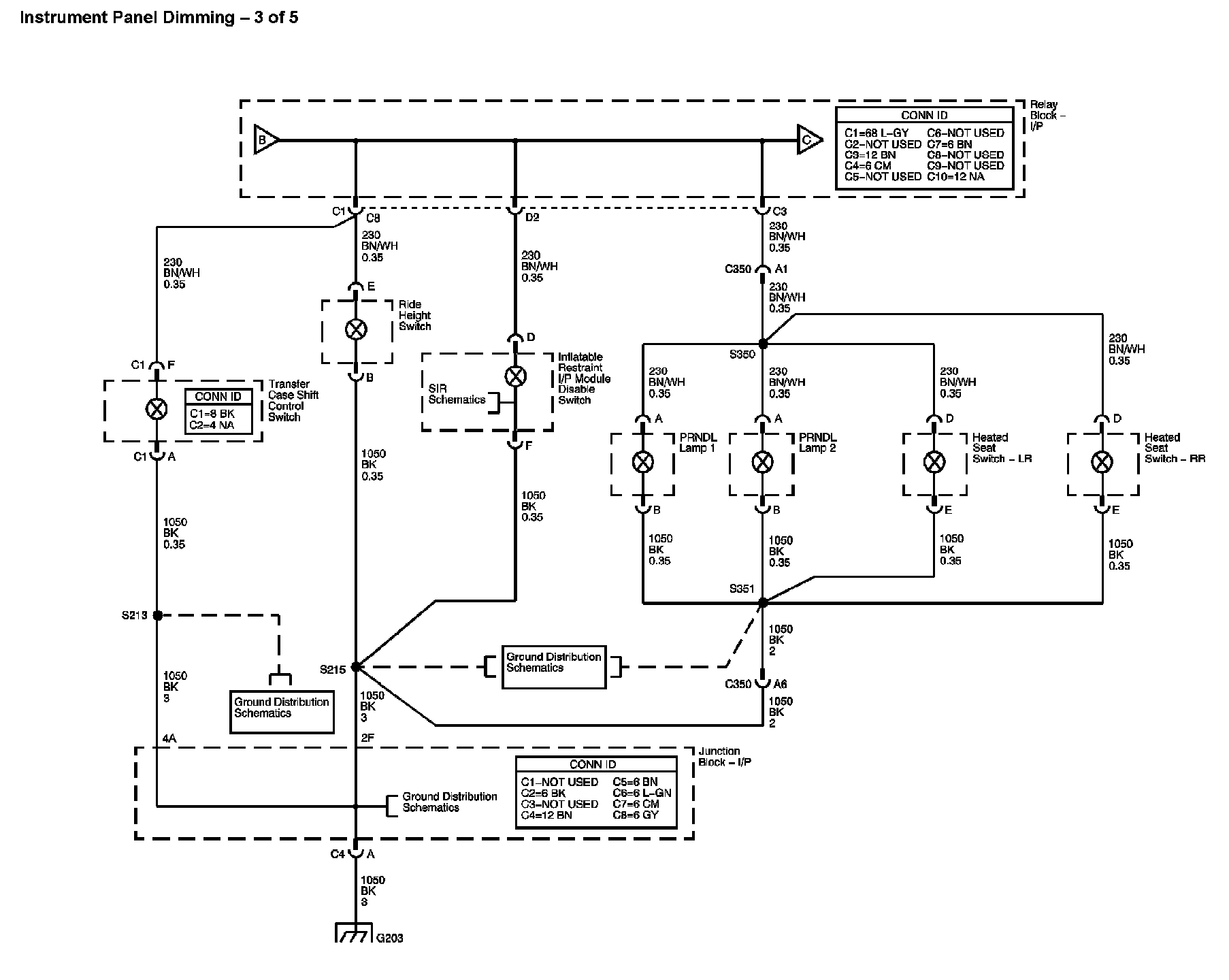

Interior Lights Dimming Diagram 1 (3 Of 5):

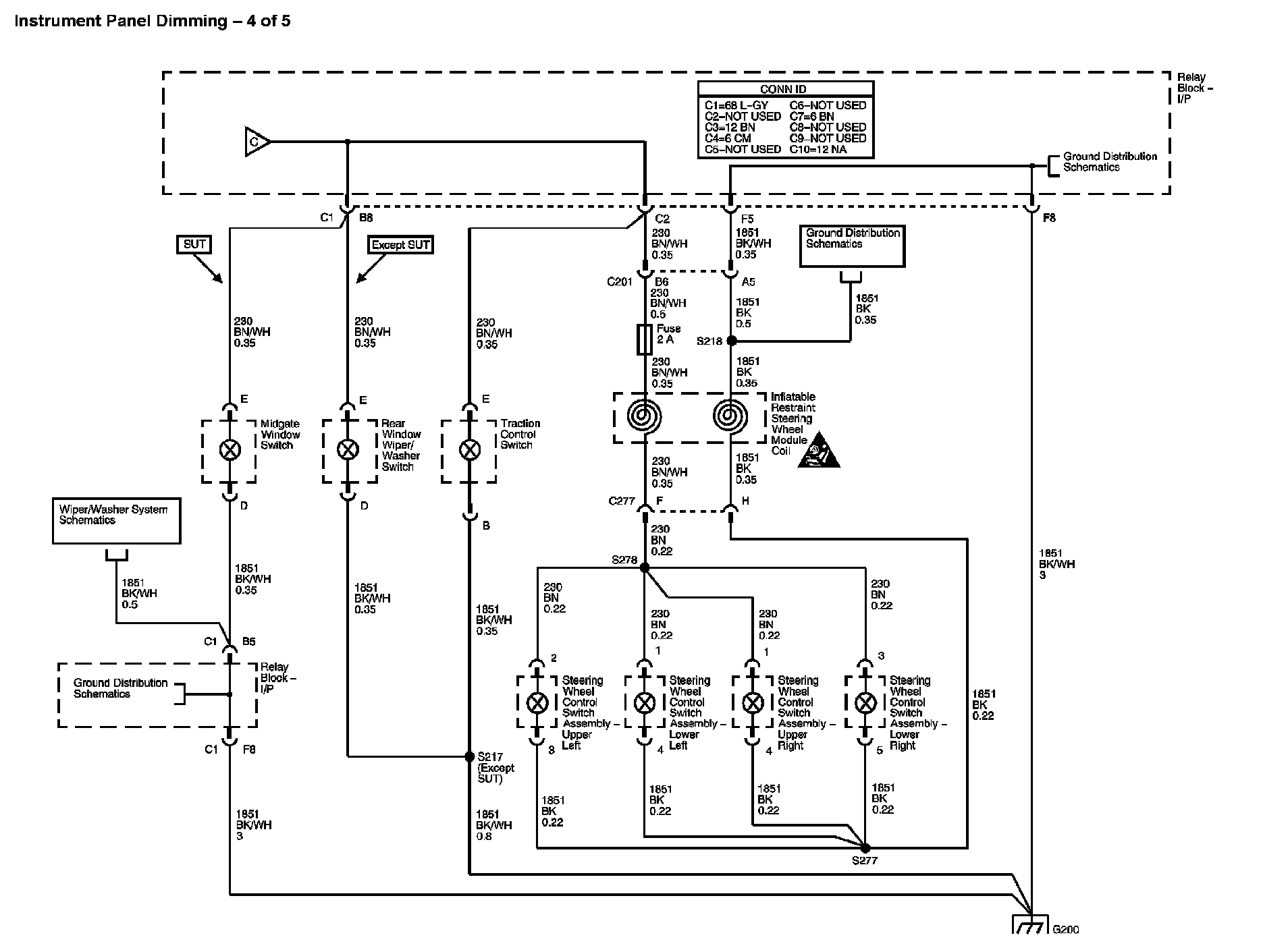

Interior Lights Dimming Diagram 1 (4 Of 5):

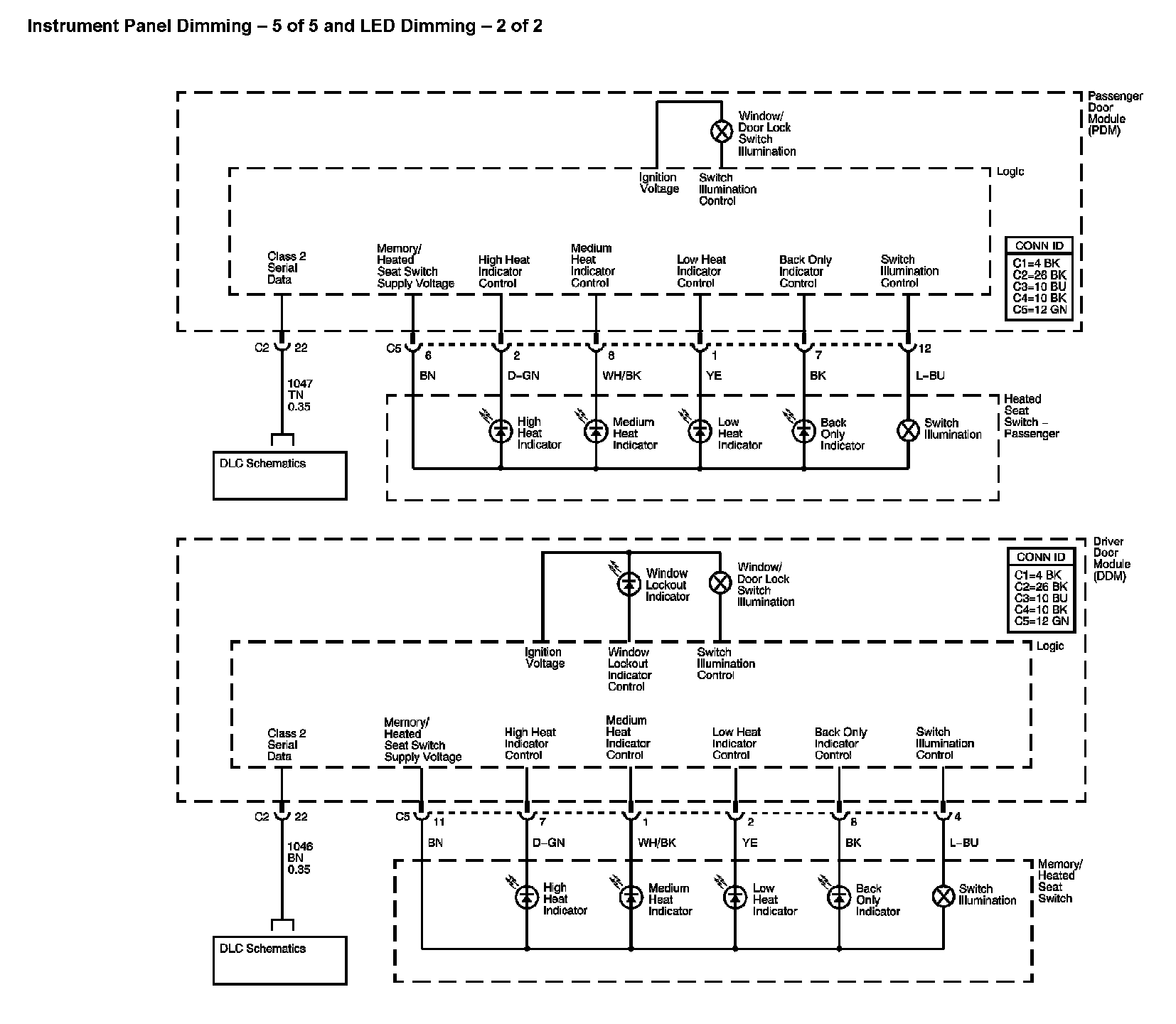

Interior Lights Dimming Diagram 1 (5 Of 5):

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
