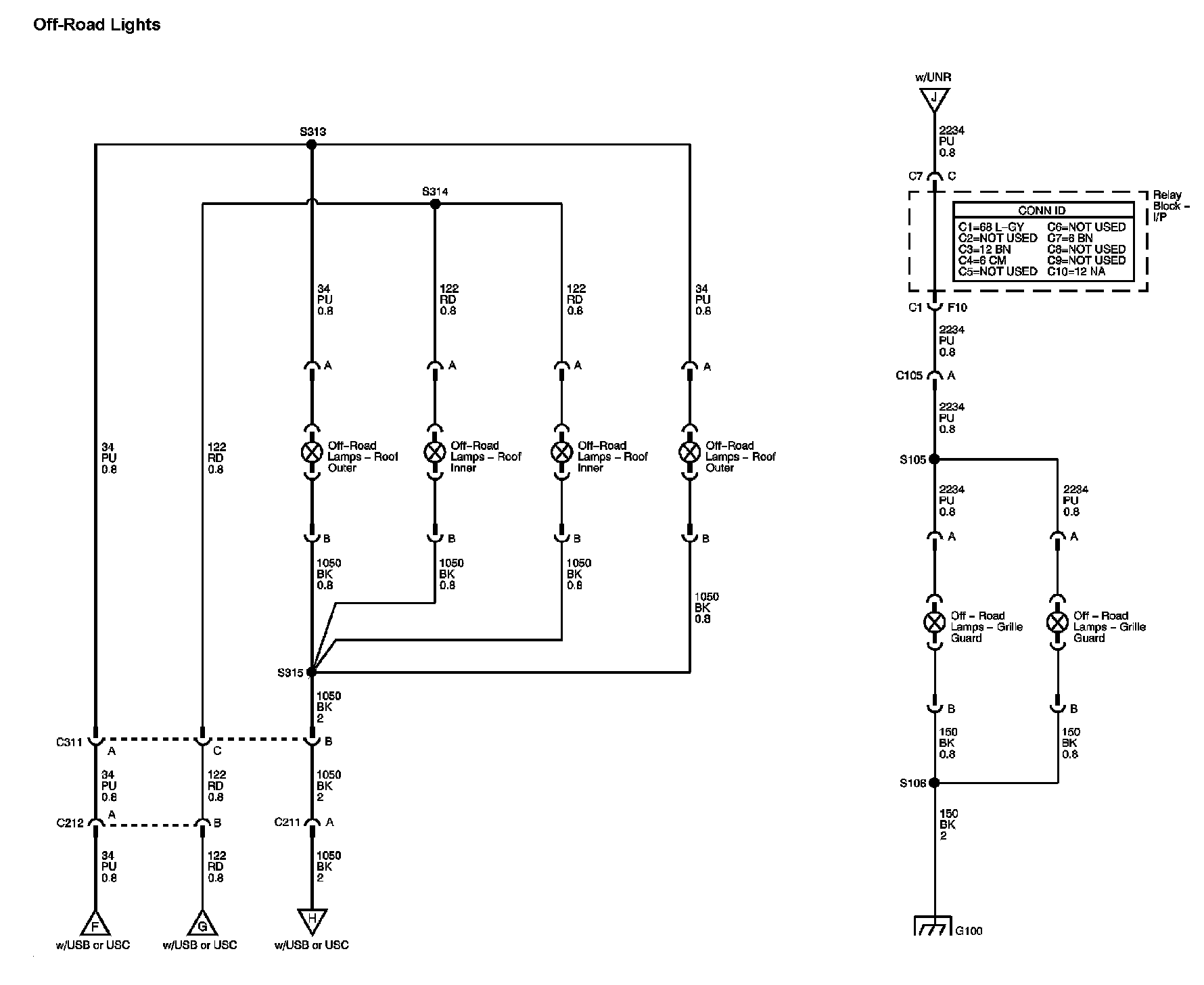

Exterior Lights Diagram 9

Exterior Lights Diagram 9:

Previous Diagram: Exterior Lights Diagram 8

Next Diagram: Exterior Lights Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
